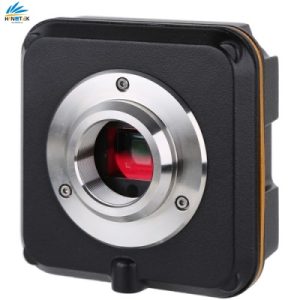

LCMOS is luxurious USB2.0 CMOS camera with frame buffers and it adopts ultra-high performance CMOS sensor as the image-picking device, and USB2.0 is used as the data transfer interface.
LCMOS comes with advanced video & image processing application ; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
The LCMOS can be widely used in bright field environment and microscope image capture and analysis with moderate speed.
The basic characteristic of L3CMOS cameras are as follows:
- Stand C-Mount camera with Aptina CMOS sensor;
- With hardware resolution among 1.2M to 14M;
- On-board memory for perfect synchronization,higher frame rate and stable performance;
- High performance cooling structure, ensures low image noise;

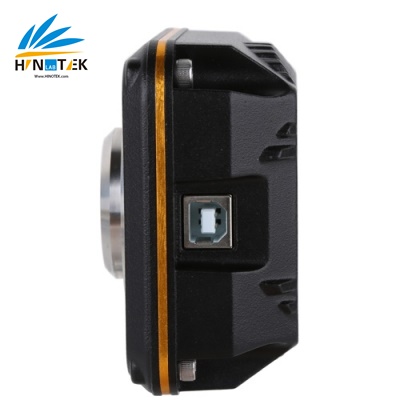

- USB2.0 interface ensuring high speed data transmission;
- Ultra-FineTM color engine with perfect color reproduction capability;
- With advanced video & image processing application ToupView;
- Providing Windows/Linux/Mac OS multiple platforms SDK;
- Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dynamic Range SN Ratio |
FPS/Resolution | Binning | Exposure |
---|---|---|---|---|---|---|
LCMOS14000KPA |
14M/MT9F002(C)
1/2.3″(5.73×4.60) |
1.4×1.4 | 0.724v/lux-sec 65.3dB 35.5dB |
2.7@4096×3288 10@2048×1644 35@1024×822 |
1×1,2×2,4×4 | 0.4ms~2000ms |
LCMOS10000KPA |
10M/MT9J003(C)
1/2.3″(5.98×4.59) |
1.67×1.67 | 0.31v/lux-sec 65.2dB 34dB |
3.7@3584×2748 13@1792×1374 35@896×684 |
1×1,2×2,4×4 | 0.4ms~2000ms |
LCMOS09000KPB |
9.0M/Special(C)
1/2.4″(5.83×4.37) |
1.67×1.67 | 0.31v/lux-sec 65.2dB 34dB |
3.9@3488×2616 15@1744×1308 47@872×654 |
1×1,2×2,4×4 | 0.4ms~2000ms |
LCMOS08000KPB |
8.0M/Special(C)
1/2.5″(5.45×4.09) |
1.67×1.67 | 0.31v/lux-sec 65.2dB 34dB |
4.4@3264×2448 17@1600×1200 55@800×600 |
1×1,2×2,4×4 | 0.4ms~2000ms |
LCMOS05100KPA |
5.1M/MT9P001(C)
1/2.5″(5.70×4.28) |
2.2×2.2 | 0.53 V/lux-sec 66.5dB 40.5dB |
6.8@2592×1944 18@1280×960 60@640×480 |
1×1,2×2,4×4 | 0.294ms~2000ms |
LCMOS03100KPA |
3.1M/MT9T001(C)
1/2″(6.55×4.92) |
3.2×3.2 | 1.0 V/lux-sec 61dB 43dB |
11.5@2048×1536 32@1024×768 45@680×510 |
1×1,2×2,3×3 | 0.244ms~2000ms |
LCMOS03100KPB LP603100B |
IMX036(C)
1/2.8″(5.12×3.84) |
2.5×2.5 | 200mv with 1/30s 0.5mv with 1/30s |
12@2048×1536 48@1024×768 48@680×5104 |
1×1,2×2,3×3 | 0.244ms~2000ms |
LCMOS02000KPB |
2.0M/Special(C)
1/2.6″(5.12×3.84) |
3.2×3.2 | 1.0 V/lux-sec 61dB 43dB |
16@1600×1200 40@800×600 |
1×1,2×2 | 0.244ms~2000ms |
LCMOS01300KPA |
1.2M/MT9M111(C)
1/3″(4.60×3.70) |
3.6×3.6 | 1.0 V/lux-sec 61dB 43dB |
15@1280×1024 26@640×512 48@320×256 |
1×1,2×2,4×4 | 0.14ms~2000ms |
LCMOS01200KPB |
1.2M/AR0130(C)
1/3″ (4.80×3.60) |
3.6×3.6 | 5.5v/lux-sec 85.3dB 44dB |
28@1280×960 30@640×480 |
1×1,2×2 | 0.14ms~2000ms |
OTHER HARDWARE CONFIGURATION | |
---|---|
Spectral Range |
380-650nm (with IR-filter) |
White Balance |
ROI White Balance/ Manual Temp-Tint Adjustment |
Color Rendering Technique |
Ultra Fine Color Engine |
Capture/Control API |
Native C/C++, C#/VB.NET, Directshow, Twain, Labview |
Recording System |
Still Picture and Movie |
Cooling System* |
Natural |
OPERATING ENVIRONMENT | |
Operating Temperature |
-10℃~ 50℃ |
Storage Temperature |
-20℃~ 60℃ |
Operating Humidity |
30~80%RH |
Storage Humidity |
10~60%RH |
Power Supply |
DC 5V over PC USB Port |
SOFTWARE ENVIRONMENT | |
Operating System |
Support Microsoft Windows XP / Vista / 7 /8 /10 (32 & 64 bit) |
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory: 2GB or More |
|
USB port: USB2.0 High-speed Port |
|
Display: 17″ or Larger |
|
CD-ROM |
