Description

Description

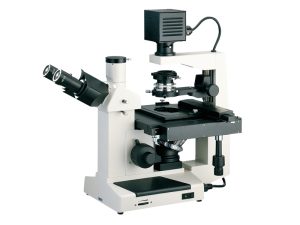

  • XDS-2Inverted microscope is equipped with wide field eyepieces, long working distance plan achromatic objectives and very long working distance condenser and phase contrast unit. It can be observed transparent and unfinished living specimen in culture bottle or culture utensil. It is the ideal instrument suitable for research of living specimen structure, liquid, deposits and so on. It also can be used in research institutes, universities, medical treatment, agriculture and animal husbandry, etc.
    Features
    ▲  Equipped with wide field eyepiece, long working distance plan achromatic objectives
    ▲  Equipped with phase contrast unit, include very long working distance condenser, phase contrast objective and centering telescope
    ▲  Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2μm
    ▲  6V30W halogen lamp with brightness control






Specification
  • Standard configuration
    Model
    XDS-2
    Eyepiece
    Wide field WF10X(¦µ20mm)
    Objective
    Long working distance plan achromatic PL L 10X/0.25
    Long working distance plan achromatic PL L 25X/0.40
    Long working distance plan achromatic PL L 40X/0.60
    Long working distance plan achromatic phase contrast objective PL L 10X/0.25 PHP2
    Eyepiece tube
    Trinocular (Inclination of 30°, 100% image light for photography capable)
    Focus system
    Coaxial coarse/fine focus, with tensional adjustable and up stop minimum division of fine focusing: 2μm.
    Nosepiece
    Quadruple(Ball bearing inner locating)
    Stage
    Double layer mechanical(Size:224mmX208mm,moving range:112mmX79mm)
    Shelf of specimen
    Match to install ¦µ68mm or 77mmX29mm culture utensil
    Match to install 82mmX57mm culture utensil
    Match to install 128mmX85mm 96 holes culture utensil
    Filter
    Blue filter
    Green filter
    Frosted filter
    Sliding phase contrast unit
    Centering telescope
    10X Sliding phase plate
    Condenser Rack & pinion adjustable, NA=0.4,working distance: 50mm
    Light source
    6V 30W Halogen lamp with brightness control.
