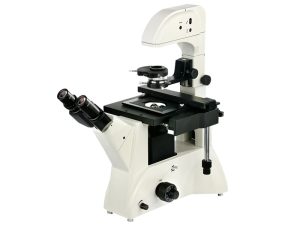

XDS-3 Inverted Biological Microscope

Description

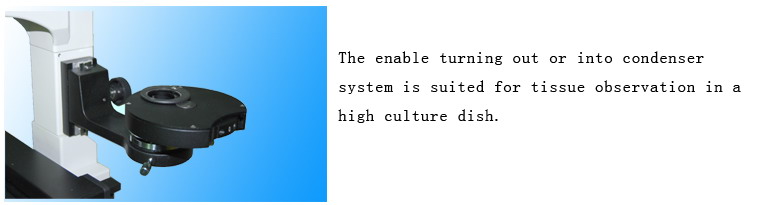

  • XDS-3 Iverted biological microscope is equipped excellent UIS optical system including long working distance plan achromatic objective and wide field plan eyepieces. Compact and steady main fram body is embodiment for the shock resistance. The enable turning out or into condenser system is suited for observation in a high culture dish. The ideal ergonomic desigm is adopted in ths unit and have easier operation and wider space. This is ideal optical instrument for micro observation in celltissue and transmitted liquid tissue, even in dynamic observation in the culture dish tissue. It can be used in scientific research, universities, medical treatment, epidemic prevention, agriculture etc.




Specification
  •  Standard configuration

    Specification
    Eyepiece
    Wide field WF10X(field number:Φ22mm)
    Centering telescope
    Infinity and long working distance plan achromatic objective
    Objective
    PLL 10X0.25 Work distance：4.3 mm£¬Cover glass thickness：1.2mm.
    PLL 20X0.40 Work distance：8.0 mm£¬Cover glass thickness：1.2mm.
    PLL 40X0.60  Work distance：3.5 mm£¬Cover glass thickness:1.2mm.
    Phase Contrast Objective
    PLL 10X0.25 PHP2 Work distance：4.3 mm£¬Cover glass thickness：1.2mm.
    Eyepiece tube
    Inclination angle is 45˚ and interpupillary distance is 53~75mm.
    Focus system
    Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing is 2μm.
    Nosepiece
    Quintuple nosepiece
    Stage
    Fixed stage overall size is 227mmX208mm
    Glass rotundity stage overall size is Ф118mm
    Mechanical moving device, moving range is 77mm (longitudinal)X114mm (transverse)
    Culture dish holder 1
    Inside locating slot size: 86mm (W)X129.5mm (L), optional with a circular culture dish Ф87.5mm
    Culture dish holder 2
    Inside locating slot size: 34mm (W)X77.5mm (L), optional with a circular culture dish Ф68.5mm
    Culture dish holder 3
    Inside locating slot size:：57mm (W)X82mm (L)
    Condenser system
    Long working distance condenser, working distance: 55mm, and with turnplate phase contrast unit
    Illumination system
    6V30W halogen, brightness enable control
    Filter
    Frosted glass and blue , green filter




SKU: xds-3 Category: Tags: , ,

Catalog

Download Brochure

Diagram

Dimension

Optional Accessories

Name
Sort/Technique parameter
NO.
eyepiece
Dividing eyepiece(field number:¦µ22mm)    0.10mm/Div
1122010
Phase Contrast Objective
PL L20X/0.40 PHP2 Work distance：8.0 mm
2490120
PL L40X/0.60 PHP2 Work distance：3.5 mm
2490140
Nosepiece
Hexad nosepiece

CCD Adapter
0.5X
810004
1X
810002
Camera
DV-1 Video output£¨380/520 TV line£© USB output £¨0.42 M pixel£©
800001
DV-2 With USB output £¨1.3M,2.0M,3.0M pixel£©
800003
DV-3 With video output£¨380/520 TV line£©
800005
Digital camera adapter
CANON(A570,A610,A620,A630,A640,A650,EF)  NIKON( F)
820001
