L2000 Biological Microscope

Description

  • L2000series biological microscopes are equipped with plan achromatic objectives and wide field eyepieces. They provide clear image, wide field, convenience operation. They can be used for biology medicine agriculture and industry area widely. They are the ideal instrument in medical treatment, teaching demonstration and scientific research.

    Features
    ▲  With wide field eyepieces and plan achromatic objectives, the field of view is widely and clear
    ▲ Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm

    ▲ Using Kohler illumination with 6 Volt 20 Watt Halogen lamps with brightness control.






Specification
  • Standard Configuration
    Model
    L2000A
    L2000B
    Eyepiece
    Wide field WF10X(Φ20mm)
    Objective
    Plan achromatic PL 4X/0.10
    Plan achromatic PL 4X/0.10
    Plan achromatic PL 10X/0.25
    Plan achromatic PL 10X/0.25

    Plan achromatic PL 20X/0.40
    Plan achromatic PL 40X/0.65(Spring)
    Plan achromatic PL 40X/0.65(Spring)
    Plan achromatic PL 100X/1.25(Spring, oil)
    Plan achromatic PL 100X/1.25(Spring, oil)

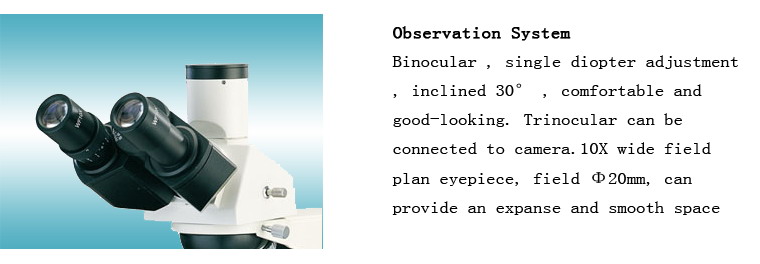

    Eyepiece tube
    Binocular(Inclination of 30˚)
    Focus system
    Coaxial coarse/fine focus, with tensional adjustable and up stop minimum division of fine focusing: 2μm.
    Nosepiece
    Quadruple(Backward ball bearing inner locating)
    Quintuple(Backward ball bearing inner locating)

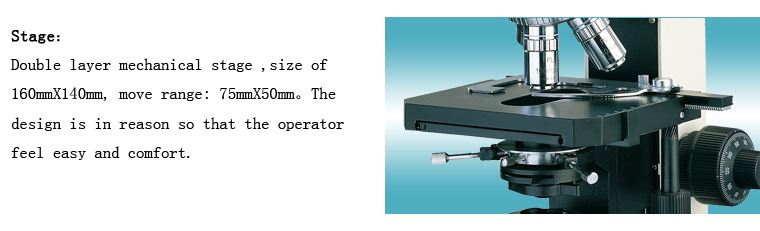

    Stage
    Double layer mechanical (Size:160mmX140mm, Move range: 75mmX50mm)

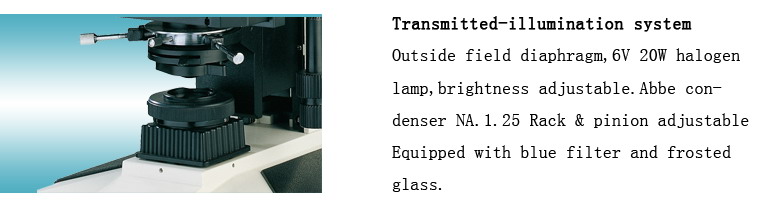

    Abbe condenser
    N.A.1.25 Rack & pinion adjustable
    Filter
    Blue filter
    Frosted filter
    Collector
    For halogen lamp
    Light source
    6V 20W Halogen lamp with brightness control
SKU: l2000-series Category: Tags: ,

Catalog

Download Brochure

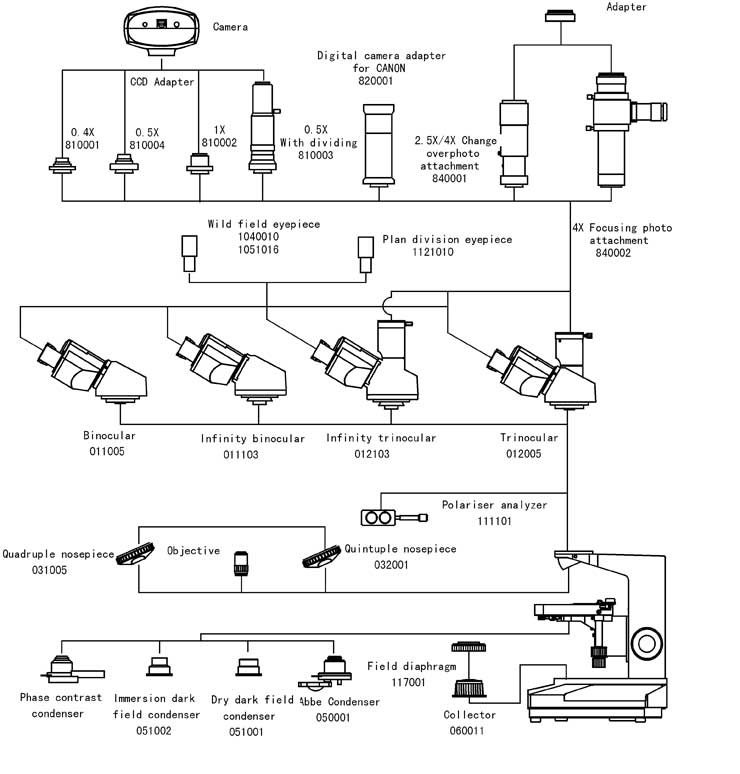

Diagram

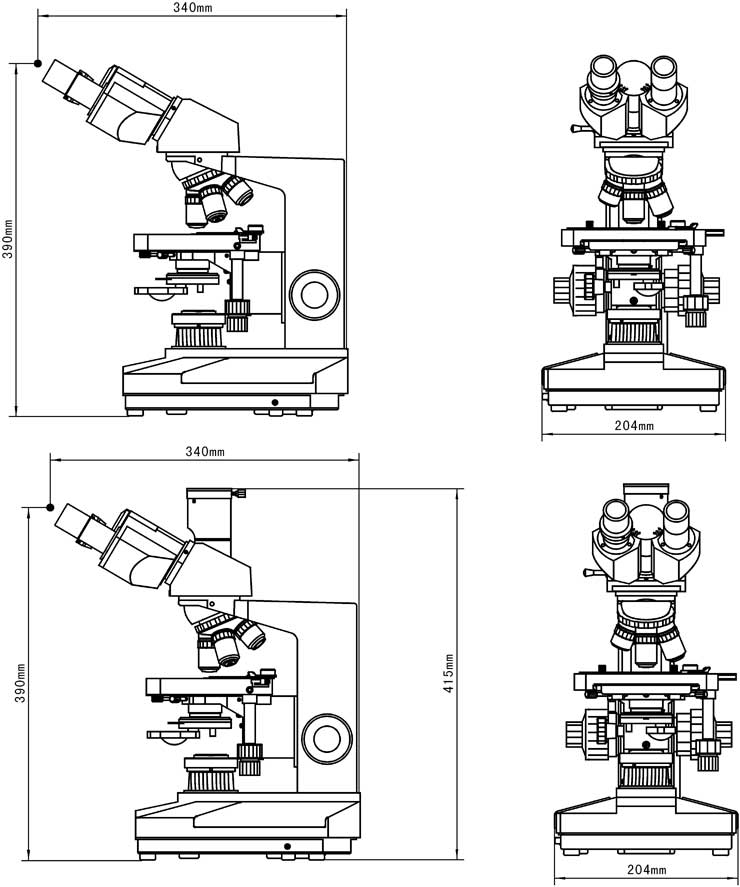

Dimension

Optional Accessories

Name
Sort/Technique parameter
NO.
Eyepiece
Wide field  WF16X(Φ11mm)
1051016
Dividing    10X(¦µ20mm)  0.1mm/Div
1120010
Eyepiece tube
Trinocular (Inclination of 30˚)
012005
Filter
Green filter
115002
Yellow filter
115003
Condenser
Dark field
Dry
051001
Immersion
051002
Phase contrast unit
Eyepiece
Centering telescope
110001
Objectives
Phase contrast plan achromatic 10X/0.25 PHP
2420110
Phase contrast plan achromatic 20X/0.40 PHP(Spring)
2420120
Phase contrast plan achromatic 40X/0.65 PHP(Spring)
2420140
Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)
2420111
(PH-Ⅰ ) Turnplate phase contrast condenser
052001
(PH-Ⅱ) Turnplate phase contrast condenser
052004
Flashboard phase contrast condenser
052002
Pull board phase contrast condenser
052003
Infinity optical system
Eyepiece tube
Binocular (Inclination of 30˚)
011103
Trinocular (Inclination of 30˚)
012103
Eyepiece
Centering telescope
110002
Objectives
Infinity plan achromatic 4X/0.10
2060104
Infinity plan achromatic 10X/0.25
2060110
Infinity plan achromatic 20X/0.40
2060120
Infinity plan achromatic 40X/0.65(Spring)
2060140
Infinity plan achromatic 100X/1.25(Spring, oil)
2060111
Infinity phase contrast plan achromatic 10X/0.25 PHP
2470110
Infinity phase contrast plan achromatic 20X/0.40 PHP
2470120
Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring)
2470140
Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, Oil)
2470111
CCD adapter
0.4X
810001
0.5X
810004
1X
810002
0.5X with dividing 0.1mm/Div
810003
Camera
DV-1(With USB & video output)
800001
DV-2(With USB output)
800003
DV-3(With video output)
800005
Digital camera adapter
CANON Digital camera adapter(A610,A620,A630,A640)
820001
Photograph unit
2.5X/4X Change over photograph attachment with 10X viewing eyepiece
840001
4X Focusing photograph attachment
840002
MD Adapter
840003
PK Adapter
840004
Facility polarize
Polarizer(360° rotatable stage)
111001
Analyzer
111101
