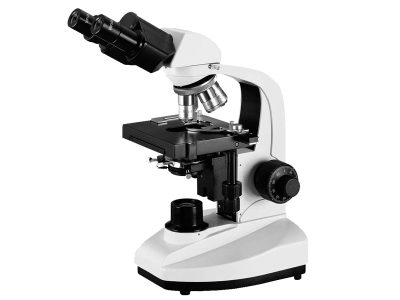

L1350 Biological Microscope

Description
  • L1350 series biological microscopes are equipped with plan achromatic objectives and wide field eyepieces. They have clear image, wide field, beautiful sculpt, convenient operation etc. They can be used for medicine and assay area widely. They are the ideal instruments for medical treatment, teaching demonstration and scientific research.
    Features
    ▲  Equipped with wide field eyepieces and achromatic objectives, the field of view is widely and clearly.

    ▲  Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.

    ▲  6 Volt 20 Watt Halogen lamps with brightness control.
Specification
  • Standard Configuration
  • Model
    L1350
    Eyepiece
    Wide field WF10X(Φ18mm)
    Objective
    Achromatic 4X/0.10
    Achromatic 10X/0.25
    Achromatic 40X/0.65(Spring)
    Achromatic 100X/1.25(Spring, oil)
    Eyepiece tube
    Binocular(Inclination of 30˚)
    Focus system
    Coaxial coarse/fine focus, with tensional adjustable and up stop the minimum division of fine focusing: 2μm.
    Nosepiece
    Quadruple(Backward ball bearing inner locating)
    Stage
    Double layer mechanical (Size:135mmX125mm, Move range: 75mmX35mm)
    Abbe condenser
    N.A.1.25Rack & pinion adjustable
    Filter
    Blue filter
    Frosted filter
    Collector
    For halogen lamp
    Light source
    6V 20W Halogen lamp with brightness control
SKU: l1350 Category: Tags: ,

Catalog

Download Brochure

Diagram

Dimensions

Optional Accessories

Name
Sort/Technique parameter
NO.
Eyepiece
Wide field   WF16X(Φ11mm)
1051016
Dividing    10X(Φ18mm)  0.1mm/Div
1021010
Objective
Plan achromatic  4X/0.10
2040104
Plan achromatic  5X/0.12
2040105
Plan achromatic  10X/0.25
2040110
Plan achromatic  20X/0.40
2040120
Plan achromatic  40X/0.65(Spring)
2040140
Plan achromatic  60X/0.85(Spring)
2040160
Plan achromatic  100X/1.25(Spring, oil)
2040111
Eyepiece tube
Monocular(Inclination of 30˚)
010005
Binocular, Sliding(Inclination of 45˚)
011201
Trinocular, Sliding(Inclination of 45˚)
012201
Trinocular(Inclination of 30˚)
012002
Dual viewing tube (Inclination of 30˚)
013002
Nosepiece
Quintuple (Backward ball bearing inner locating)
032001
Filter
Green filter
115002
Yellow filter
115003
Light source
LED Collector
Bright and white light
073005
Condenser
Dark field
Dry
051001
Immersion
051002
Phase contrast unit
Eyepiece
Centering telescope
110001
Objectives
Phase contrast plan achromatic 10X/0.25 PHP
2420110
Phase contrast plan achromatic 20X/0.40 PHP
2420120
Phase contrast plan achromatic 40X/0.65 PHP(Spring)
2420140
Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)
2420111
(PH-Ⅰ ) Turnplate phase contrast condenser
052001
(PH-Ⅱ) Turnplate phase contrast condenser
052004
Flashboard phase contrast condenser
052002
Pull board phase contrast condenser
052003
Infinity optical system
Eyepiece tube
Binocular (Inclination of 30˚)
011101
Trinocular (Inclination of 30˚)
012101
Eyepiece
Centering telescope
110002
Objectives
Infinity plan achromatic 4X/0.10
2060104
Infinity plan achromatic 10X/0.25
2060110
Infinity plan achromatic 20X/0.40
2060120
Infinity plan achromatic 40X/0.65(Spring)
2060140
Infinity plan achromatic 100X/1.25(Spring, oil)
2060111
Infinity phase contrast plan achromatic 10X/0.25 PHP
2470110
Infinity phase contrast plan achromatic 20X/0.40 PHP
2470120
Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring)
2470140
Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, Oil)
2470111
CCD adapter
0.4X
810001
0.5X
810004
1X
810002
0.5X with dividing 0.1mm/Div
810003
Camera
DV-1(With USB & video output)
800001
DV-2(With USB output)
800003
DV-3(With video output)
800005
Photography
USB Output
1096001
VIDEO Output
1108001
Digital camera adapter
CANON Digital camera adapter(A610,A620,A630,A640)
820001
Photograph unit
2.5X/4X Change over photograph attachment with 10X viewing eyepiece
840001
4X Focusing photograph attachment
840002
MD Adapter
840003
PK Adapter
840004
Facility polarize
Polarizer(360° rotatable stage)
111001
Analyzer
111101
Adapter(For LED illumination)
Input: 230V¡«50/60HZ   Output: 9V  500mA
101001
Input: 110V¡«50/60HZ   Output: 9V  500mA
101002
