Description

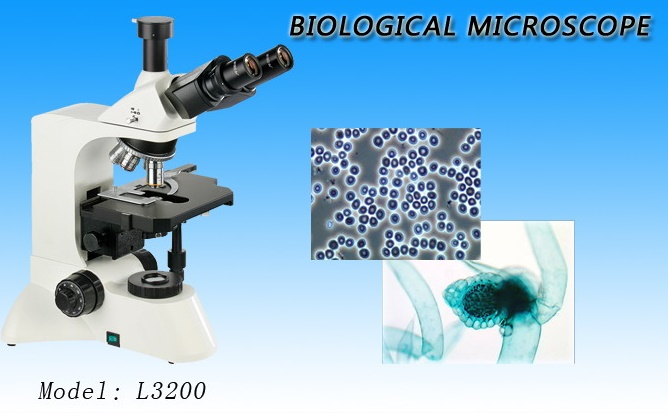

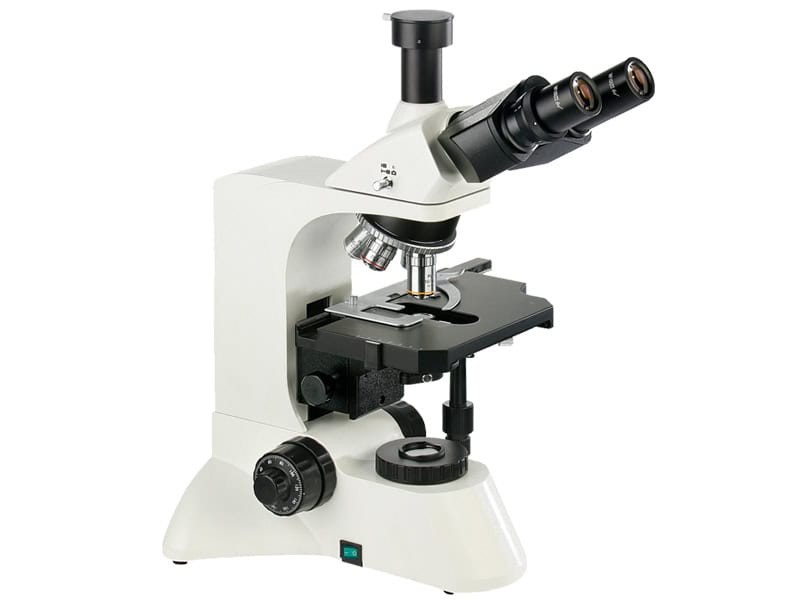

- L3200 series biological microscopes are equipped with infinity plan achromatic objectives and wide field eyepieces. They have beautiful sculpt and provide clear image, wide field, convenience operation. They can be used for biology medicine agriculture and industry area widely. They are the ideal instrument in medical treatment, teaching demonstration and scientific research.
Features
▲ Equipped with wide field eyepieces and infinity plan achromatic objectives, the field of view is widely and clear▲ Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm▲ Maximal movement of stage is 30mm▲ Using Kohler illumination with Integrated field diaphragm and 6V30W halogen lamp, adding radiator and brightness control.
▲ Trinocular can be observation for eyepieces and microphotography in 100% light flux, suits for low illuminance microphotography.
Specification
- Standard Configuration
ModelL3200EyepieceWF10X(¦Φ22mm)ObjectiveInfinity plan achromatic objectivePL 4X/0.10(Work distance)：21 mmPL 10X/0.25(Work distance)：5.0mmPL 40X/0.65(Spring)(Work distance)：0.66 mmPL 100X/1.25(Spring, oil)(Work distance)： 0.36mmEyepiece tubeL3200HBGBinocular (Inclination of 30˚)L3200HTGTrinocular(Inclination of 30˚)Focus systemCoaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing: 2μm.NosepieceQuadruple(Backward ball bearing inner locating)StageDouble layer mechanical (Size:210mmX140mm,Move range: 75mmX50mm)Abbe condenserN.A.1.25Rack & pinion adjustableFilterBlue filterFrosted filterCollectorFor halogen lamp(With field diaphragm )Light source6V 30W Halogen lamp with brightness control
