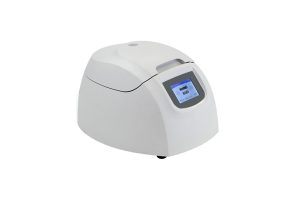

Hematocrit Centrifuge TG12M
TG12M hematocrit centrifuge can be used to determine hematocrit value and separate the micro-blood from micro-solution.
1. Microprocessor control, DC brushless motor for stable and low noise operation.
2. During a run, parameters can be set freely without shutdown.
3. Automatic calculation of RCF value, and special RCF key for RCF value checking at any time.
4. Countdown time showed by seconds if the centrifugation time is less than 1min.
5. Self-diagnosis system can automatically detect the faults of overspeed and no speed signal, door lid interlock to improve the safety performance.
Technical Parameters
|
Model |
TG12M |
|
Max. speed |
12000rpm |
|
Max. RCF |
14800xg |
|
Max. capacity |
36 capillaries |
|
Speed accuracy |
±30rpm |
|
Time setting range |
1min to 99min |
|
Noise |
<62dB(A) |
|
Power supply |
AC220±22V 50/60Hz 5A |
|
Power consumption |
300W |
|
Dimensions (WxDxH) |
320x370x235mm |
|
Package size (WxDxH) |
530x410x290mm |
|
Net weight |
11kg |
Rotor Options
|
Rotor No. |
Rotor type |
Max. speed(rpm) |
Max. RCF(xg) |
Capacity |
|
No.1 |
Hematocrit rotor |
12000 |
14800 |

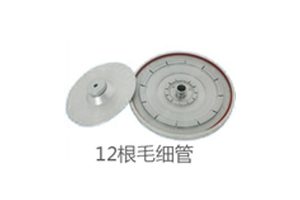

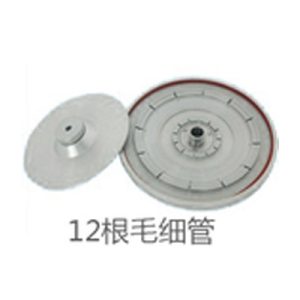

12 capillary rotor |
|
No.2 |
Hematocrit rotor |
12000 |
14800 |

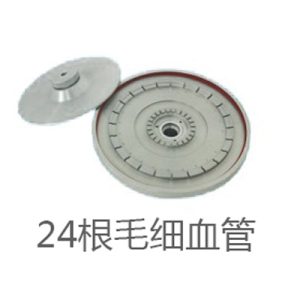

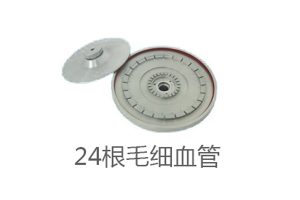

24 capillary rotor |
|
No.3 |
Hematocrit rotor |
12000 |
14800 |

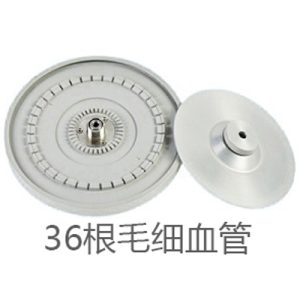

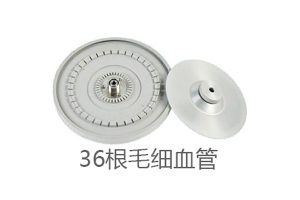

36 capillary rotor |
