Description

Cooling Incubator/Refrigerated Incubator BOD Incubator

Various constant temperature experiments and environmental tests at 0-65°C, water analysis, microbe culture of BOD / bacteria, plant breeding, and sample preservation.

Characteristics:

  • Unique internal wind circulation structure design, fan breeze circulation.

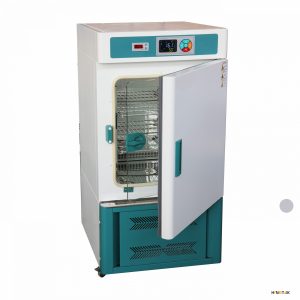

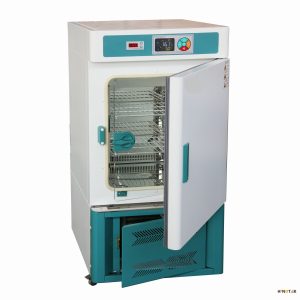

  • The double door structure, with high quality glass easy to observe the samples, the outer door with magnetic strip, good sealing.
  • Intelligent defrosting function ensures long frost-free operation of the equipment.

BL model additional characteristics:

  • LCD display 30 stage programs control, ladder operation.
  • Sensor fault alarm.

Main Technical Parameters:

Model
SPX-70BIV SPX-150BIV SPX-250BIV
SPX-70BL SPX-150BL
Cycle Mode Forced convection
Function
Temp. range 0 ∼ 65°C
Temp. Resolution Ratio 0.1°C
Temp. Motion High Temp.: ± 0.5°C Low Temp.: ± 1°C
Temp. Uniformity ± 1°C
Structure
Inner Chamber Mirror Stainless Steel
Outer Shell Cold rolling steel electrostatic spraying exterior
Insulation layer Polyurethane
Heater Stainless steel heater
Power rating 0.8kW 1.0kW 1.2kW
Compressor Air cooled hermetic compressor
Cryogen R134a
Defrost structure Automatic control intelligent defrosting

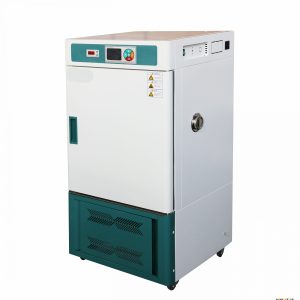

Test hole Stainless steel inner diameter 50mm(one)
Controlled external power supply Universal socket(one)
Temp. setting mode Touch button setting
Temp. display mode Measuring temperature: LCD upper screen; setting temperature: the lower row
Timer BIII model: 0 – 99.9h BL model: 0 – 99.9h x 30 segment
Operation function
BIII model: Fixed value operation, timing function, auto stop.
BL model: Program operation
Sensor PT100
Additional function
BIII model: LED light, Deviation correction, Menu key lock, Power failure parameter memory
BL model additional character: UV light, loop self diagnosis
Safety device Over temperature alarm, mechanical temperature limiter
Specification
Inner Chamber size(W*L*H)(mm) 420*350*500 500*500*600 600*500*840
Exterior size (W*L*H)(mm) 580*610*1190 660*760*1290 760*760*1530
Packing size (W*L*H)(mm) 708*716*1368 788*866*1468 888*866*1708
Volume 70L 150L 250L
Load per rack 15kg
Shelf number 9 12 18
Shelf space 35mm
Power Supply Current rating AC220V/2.3A AC220V/3.6A AC220V/5.5A
NW/GW (kg) 69/92 86/114 100/139
Accessory Shelf 2
Optional accessories Shelf, Touch screen controller, RS485 interface, Printer, Recorder, Remote control, Wireless SMS alarm, USB
data storage
