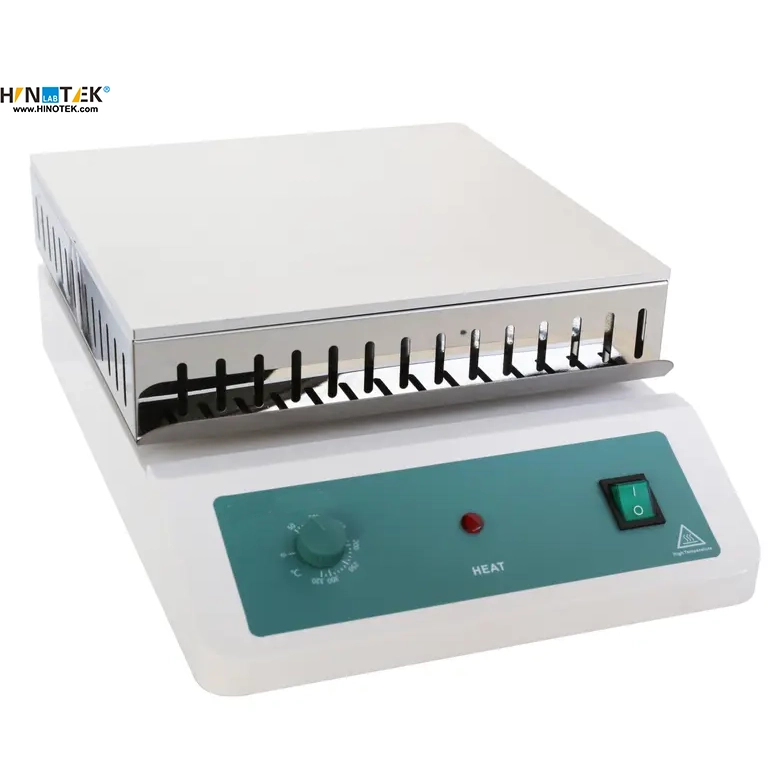

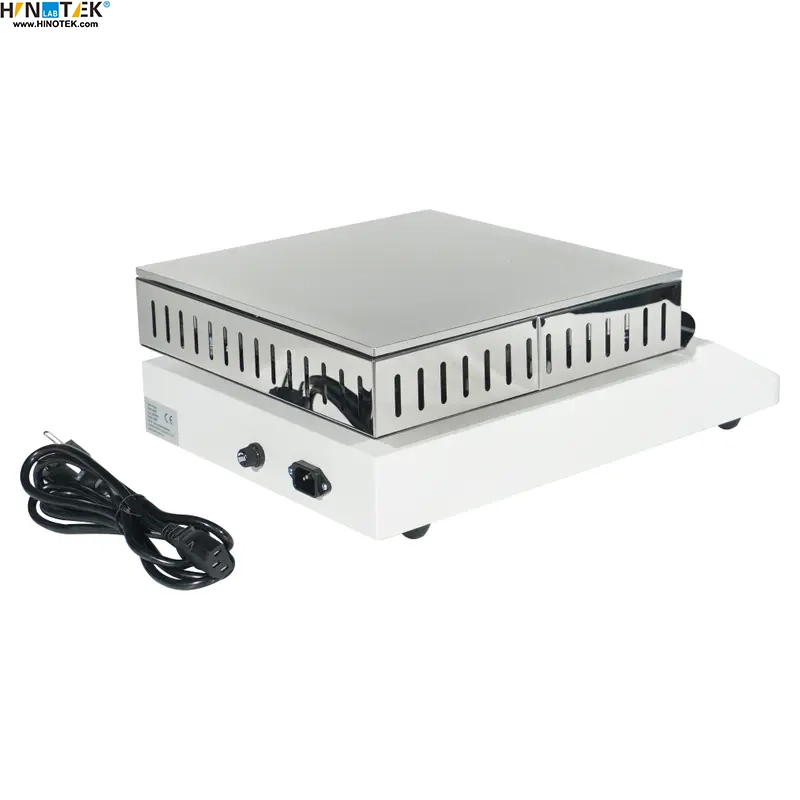

SH-5 Series Hot Plate and Graphite Hot Plate

Aluminum hot plate or Graphite hot plate, uniform surface temperature.

Heating up fast and uniform.

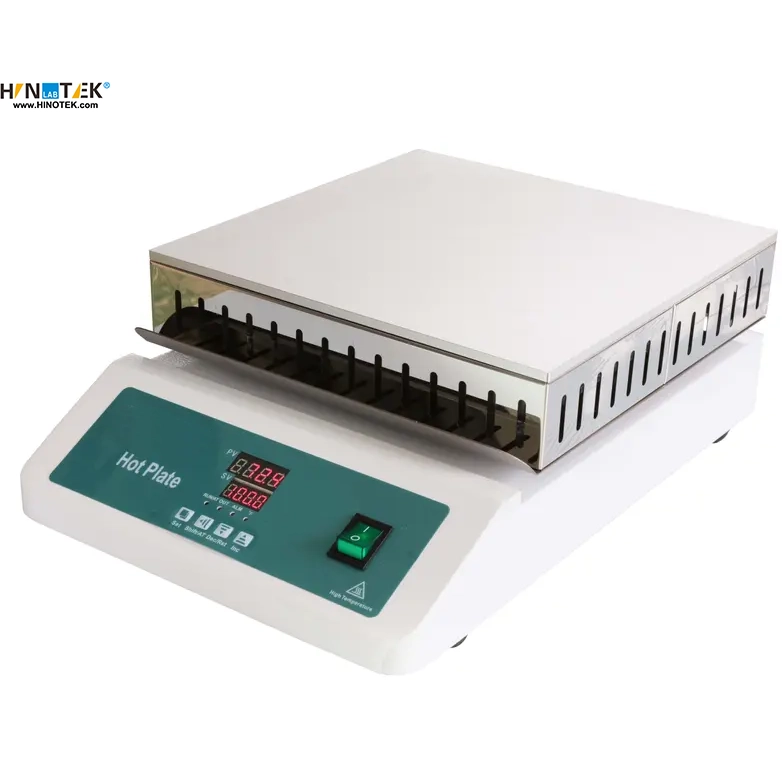

Digital hot plate: digital display indicating temperature of hot plate clearly.

Aluminum digital hot plate (SH-5B, SH-8B, SH-9B) and Graphite hot plate (SH-II-5B, SH-II-8B, SH-II-9B) can do remote control type.

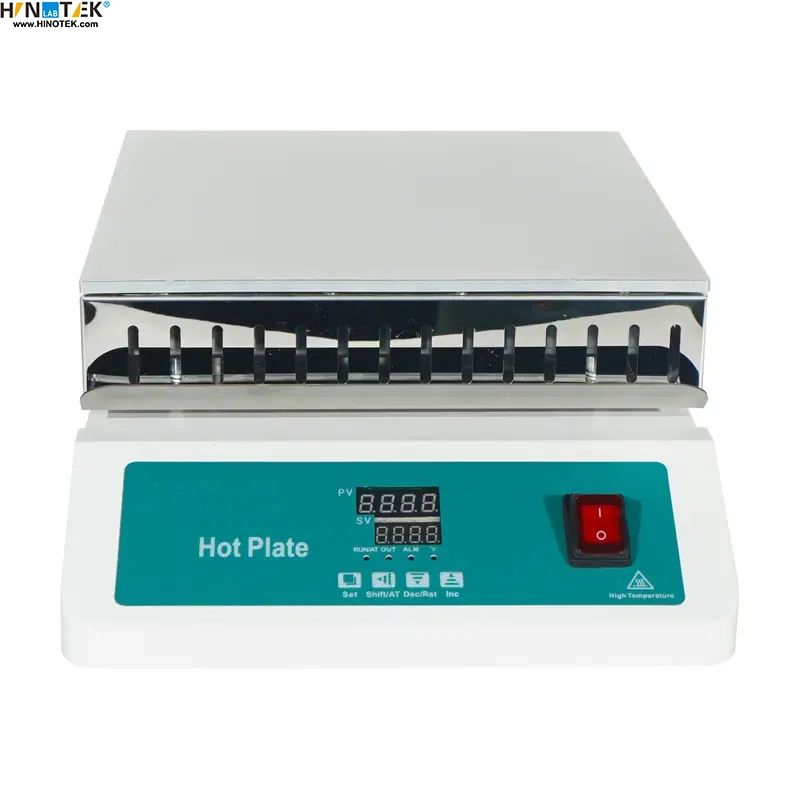

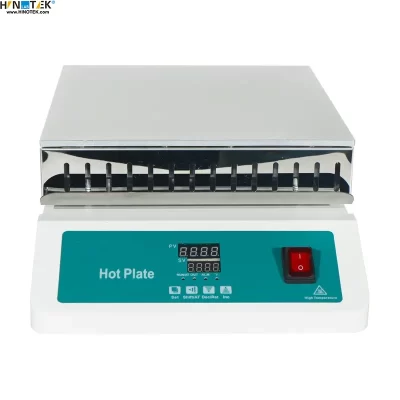

Aluminum digital hotplate(remote control)

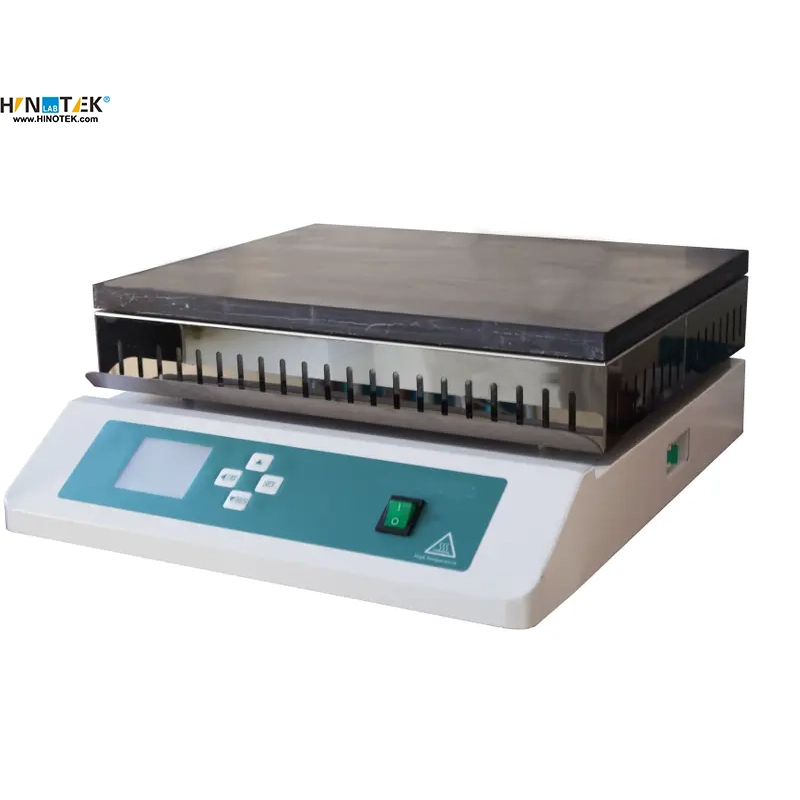

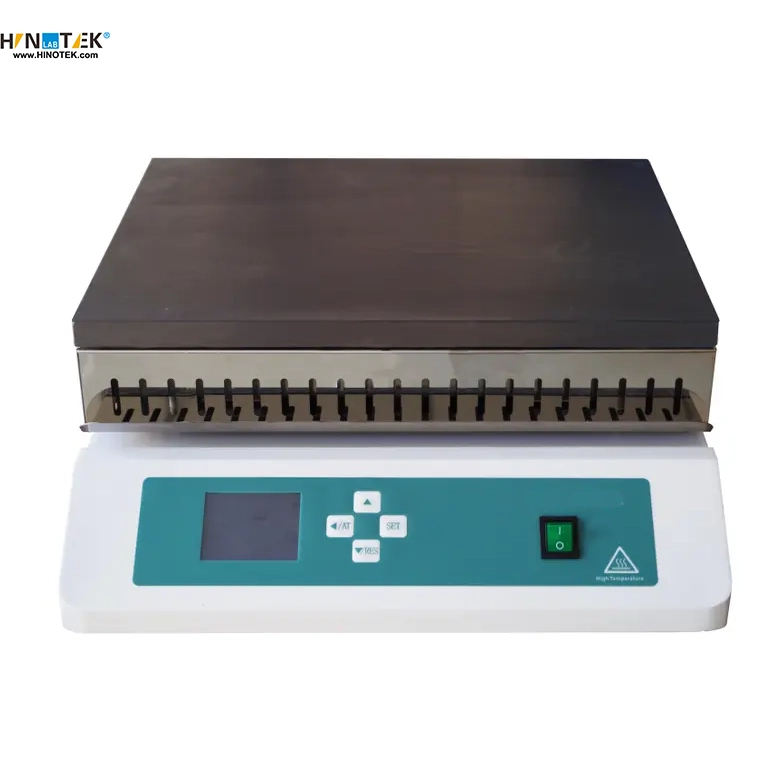

Graphite digital hotplate(remote control)

Patent No. : ZL 2019 2 0769297.6

Model		SH-5	SH-8	SH-9
		SH-5B	SH-8B	SH-9B
		SH-II-5B	SH-II-8B	SH-II-9B
Function	Max Temp. (°C)	SH-5, SH-8, SH-9: 320°CSH-5B, SH-8B, SH-9B: 350°CSH-II-5B, SH-II-8B, SH-II-9B: 400°C
Structure	Outer Shell	Iron plate welding, surface spraying
	Hot plate	Aluminum tensile: SH-5, SH-5B, SH-8, SH-8B, SH-9, SH-9B: Graphite Plate: SH-II-5B, SH-II-8B, SH-II-9B:
	Heating power(W)	SH-5: 800SH-5B: 1200SH-II-5B: 1800	SH-8: 1500SH-8B: 2400SH-II-8B: 3000	SH-9: 3000SH-9B: 3500SH-II-9B: 4500
	Setting method	Scale: SH-5, SH-8, SH-9Digital: SH-5B, SH-8B, SH-9B, SH-II-5B, SH-II-8B, SH-II-9B
	Timer	No / Digital
	Temperature sensor	K model
	Temp. accuracy	SH-5, SH-8, SH-9: ± 10%SH-5B, SH-8B, SH-9B, SH-II-5B, SH-II-8B, SH-II-9B: ± 1%
	Plate Temp. Uniformity	SH-5, SH-8, SH-9: ± 15%SH-5B, SH-8B, SH-9B, SH-II-5B, SH-II-8B, SH-II-9B: ± 10%
Specification	Exterior size (WLH)(mm)	340 × 370 × 220	420 × 500 × 220	470 × 650 × 220
	Packing size (WLH)(mm)	SH-5 / SH-5B: 520 × 380 × 250SH-II-5B: 550 × 410 × 270	SH-8 / SH-8B: 560 × 520 × 250SH-II-8B: 600 × 560 × 270	SH-9 / SH-9B: 660 × 620 × 250SH-II-9B: 700 × 660 × 270
	Plate size (mm)	300 × 300	450 × 350	600 × 400
	Plate load	20KG	30KG	40KG
	Power supply (50/60Hz)	220V
	NW/GW (kg)	SH-5 / SH-5B: 9 /10SH-II-5B: 12 /13.5	SH-8 / SH-8B: 11 /12SH-II-8B: 19 /20	SH-9 / SH-9B: 15 /17SH-II-9B: 28 /30
Note: SH-II-8B, SH-9, SH-9B, SH-II-9B: without plug.
