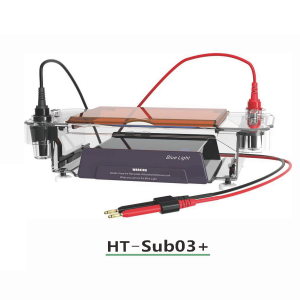

HT-Sub03/HT-Sub03+

Suitable for nucleic acid electrophoresis, separation, and identification of DNA and determination of its molecular weight.

• Polycarbonate high-strength transparent plastic injection molding, no leakage, impact resistance.
• Professional shielding blue light clamshell design, open the cover can effectively dissipate heat.
• With the blue light electrophoresis monitor, it can effectively shield blue light and observe clear bands.
• The bottom level adjustment knob can adjust the level of the electrophoresis tank. Two different gel sizes, meet the needs of general and high-throughput electrophoresis.
• The front and back design of the gel box, can save space.
• 99.99% high-purity platinum electrode, the best conductivity.
• HT-Sub03+ is an integrated blue light transmission device added on the basis of HT-Sub03.
• Blue LED wavelength 470nm, combined with blue light dye, it can monitor the electrophoresis process in a timely manner.
• The blue light can be automatically disconnected in 5 minutes, prevent long-term lighting from affecting the life of the LED lamp bead.

Technical Specification:

Gel size (W*L): 130*200mm, 130*150mm
Sample comb: 1.0mm 14, 18, 26 wells; 1.5mm 18-well
Buffer volume: 800mL

Standard configuration:

Name	Unit	Qty
Lid with cables	set	1
Body tank with electrodes	set	1
Gel box (large gel)	pc	1
Large gel tray (130*200)	pc	1
Small gel tray (130*150)	pc	1
1.0mm thickness 14 wells comb	pc	2
1.0mm thickness 18 wells comb	pc	2
1.0mm thickness 26 wells comb	pc	2
1.5mm thickness 18 wells comb	pc	2
