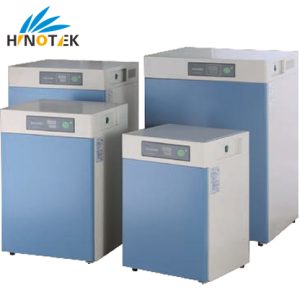

Water-jacketed Constant-temperature Incubator — Digital Display
Water-jacketed Constant-temperature Incubator — Multi-segment Programmable Control
Product Features
User-Friendly Design
- A brushed stainless-steel chamber has rounded corners and freely removable shelves for easy cleaning;
- Water-jacketed heating ensures uniform chamber temperature and maintains a constant temperature for an extended period during power failure;
- An inner glass door facilitates observation. It can be opened at any time during operation, and the incubator automatically pauses, switching off heating and the circulating fan;
- A microcomputer controller with self-tuning PID technology prevents temperature overshoot. User-friendly temperature, water-level and door-opening alarms prevent damage to samples from sudden temperature changes;
Automatic Circulating Fan Speed Control
- Circulating fan speed is automatically controlled. When the chamber reaches a constant temperature, the speed decreases to an airflow suitable for cell growth, preventing sample evaporation caused by excessive airflow during experiments;
Multi-segment Programmable Controller (Models with “N” Have This Function)
- A multi-segment programmable controller displays multiple parameters on one screen. Its menu-driven interface simplifies complex experimental procedures and enables automatic control and operation;
- Multi-segment temperature, circulating air velocity, time and heating rate can be set and programmed simultaneously. Functions include temperature-gradient control, gradual heating from the initial chamber temperature, and preset automatic start-up, standby and shutdown;
Safety Functions
- An independent temperature-limit alarm system provides audible and visual warnings, ensuring safe experiments without accidents (optional);
- High-temperature, overtemperature and water-shortage alarms;
- Prolonged door-opening alarm;
UV Sterilization System (Optional)
- Periodically disinfects the chamber interior and effectively kills airborne bacteria in the circulating air, preventing contamination during cell culture;
Technical Specifications
| Technical Specification / Model | GHP-9050 GHP-9050N |
GHP-9080 GHP-9080N |
GHP-9160 GHP-9160N |
GHP-9270 GHP-9270N |
|---|---|---|---|---|
| Supply Voltage | AC220V 50HZ | |||
| Heating Method | Water-jacketed | |||
| Temperature Control Range | RT+5~65°C | |||
| Temperature Resolution / Fluctuation | 0.1°C/±0.3°C | |||
| Temperature Uniformity | ±0.5°C (test point: 37°C) | |||
| Ambient Operating Temperature | +5~35°C | |||
| Input Power | 450W | 650W | 850W | 1350W |
| Capacity | 50L | 80L | 160L | 270L |
| Chamber Dimensions (mm) W×D×H | 350×350×410 | 400×400×500 | 500×500×650 | 600×600×750 |
| Overall Dimensions (mm) W×D×H | 500×500×700 | 550×550×800 | 650×640×950 | 750×740×1050 |
| Shelves (Standard) | 2 shelves | |||
| Timer Range | 0~5999min | |||
Note: Models with “N” have a multi-segment programmable LCD controller.
Optional Accessories:
1. Multi-segment programmable temperature controller
2. USB flash drive data storage
3. Built-in printer
4. Independent temperature-limit controller
5. RS485 interface and communication software
6. UV sterilization system
7. Optional automatic water-filling system
Note: choose one of USB flash drive, RS485/232 or printer.
