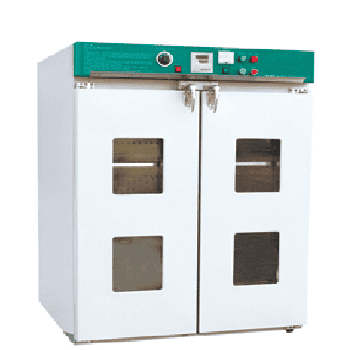

DGF-4AB Series Big Forced Air Drying Oven
Characteristics
Large capacity industrial high precision drying oven to meet the requirements of military industry.
PID or program temperature control controller, with over-temperature alarm system.
Double doors ensure that use is convenient.
Forced air system, with Low-noise fan, centrifugal cycle method, high temperature uniformity.
Patent No. : ZL 2018 3 0094606.5
Technical Specifications
| Model | DGF-4AB | DGF-5AB | DGF-6AB | DGF-7AB | DGF-8AB | |
|---|---|---|---|---|---|---|
| Cycle Mode | Fan – forced circulation | |||||
| Function | Temp. Range | RT+10-250°C | RT+10-300°C | |||
| Temp. Resolution Ratio | 0.1°C | |||||
| Temp. Motion | ± 1°C | |||||
| Temp. Uniformity | ± 3% | |||||
| Structure | Inner Chamber | Stainless steel inner chamber | ||||
| Outer Shell | Galvanized sheet electrostatic spraying exterior | |||||
| Insulation Layer | High quality rock wool board (with CE) | |||||
| Heater | Stainless steel heating tube | |||||
| Power Rating | 6kW | 6.6kW | 9kW | 12kW | 15kW | |
| Exhaust Hole | On top or side | |||||
| Controller | Temp. Control Mode | PID intelligent control or Multi – segment programmable control (optional) | ||||
| Temp. Setting Mode | Touch button setting | |||||
| Temp. Display Mode | LCD Digital Display | |||||
| Timer | 0-9999min (with timing wait function) | |||||
| Operation Function | Fixed temperature operation, timing function, auto stop. | |||||
| Additional Function | Temperature deviation correction, menu locked, power-off memory | |||||
| Sensor | PT100 | |||||
| Safety Device | One key to start overheat power off | |||||
| Specification | Inner Chamber Size (W*L*H)(mm) | 800 × 800 × 1000 | 1000 × 1000 × 1000 | 1000 × 1000 × 1300 | 1200 × 1200 × 1300 | 1600 × 1200 × 1600 |
| Exterior Size (W*L*H)(mm) | 1100 × 940 × 1435 | 1290 × 1135 × 1440 | 1315 × 1155 × 1760 | 1465 × 1360 × 1760 | 1520 × 1760 × 2070 | |
| Packing Size (W*L*H)(mm) | 1060 × 1090 × 1520 | 1260 × 1290 × 1520 | 1350 × 1300 × 1890 | 1550 × 1500 × 1890 | 1950 × 1500 × 1910 | |
| Volume | 640L | 1000L | 1300L | 1870L | 3070L | |
| Max. Shelf Number | 11 | 11 | 11 | 11 | 12 | |
| Load Per Rack | 30kg | |||||
| Shelf Space | 55mm | 55mm | 80mm | 80mm | 80mm | |
| Power Supply (50/60HZ) | 380V | |||||
| NW/GW (kg) | 200 | 260 | 350 | 480 | 800 | |
| Accessory | Shelf | 2 | ||||
| Shelf Frame | No | |||||
| Optional Accessories | Spare shelf, Program controller, RS485 interface, Printer Products of different specifications can be customized according to customer requirements. | |||||
