DG1616 Series High Speed Centrifuges

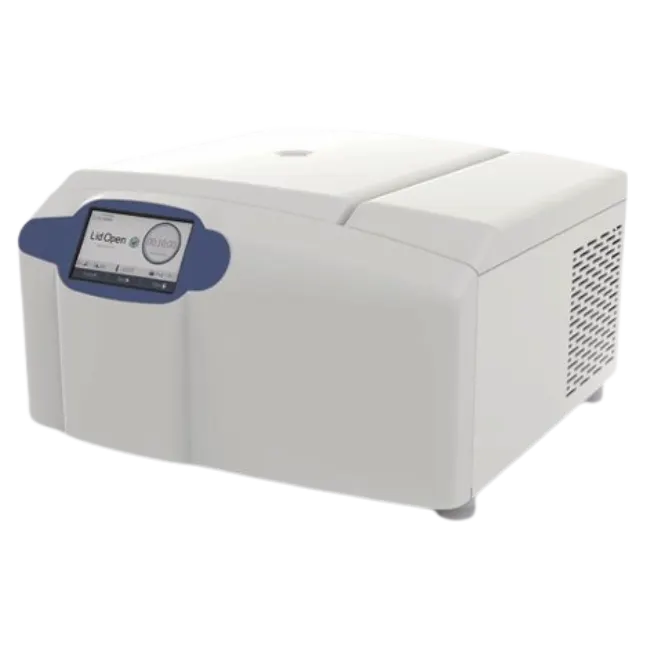

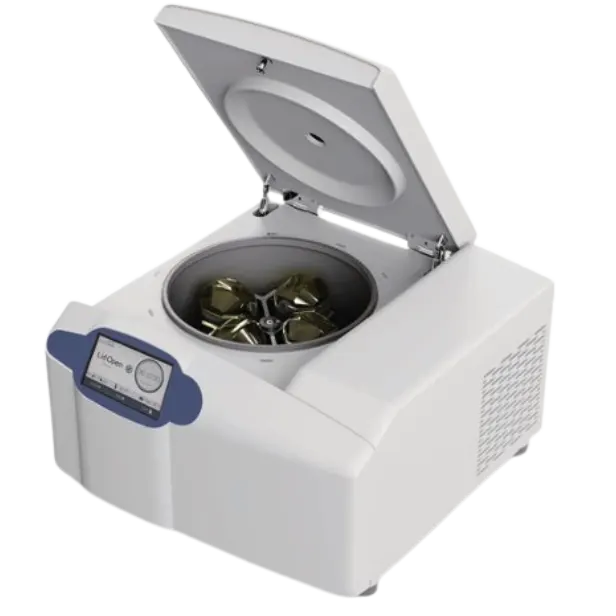

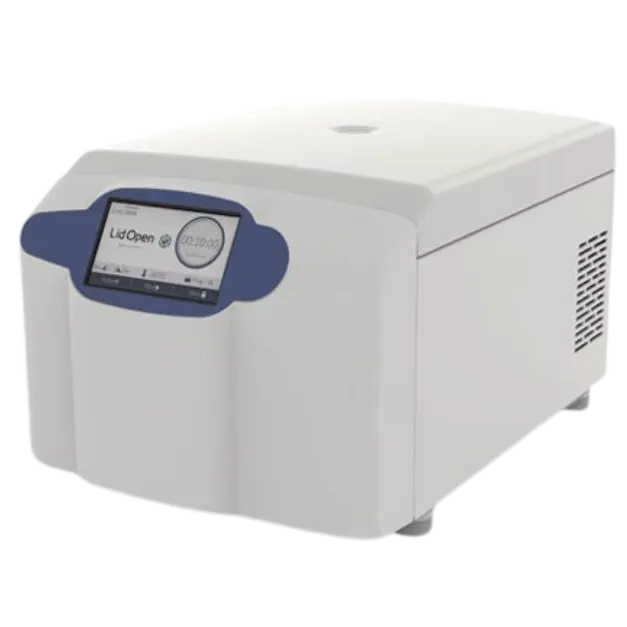

DG1616 High Speed Centrifuge; DG1616R High Speed Refrigerated Centrifuge.
Features
- Smart touch control and easy operation: the upgraded touch UI interface is simpler and more intuitive, requires no complex setup, and is ready to use out of the box to improve laboratory efficiency.
- Maximum speed of 16,000 rpm and maximum RCF of 28,621 × g meet a wide range of separation needs and ensure experimental precision.
- Wide temperature control range: -10 °C to 40 °C ensures stable performance in low-temperature environments, ideal for temperature-sensitive separation experiments.
- Rapid cooling: from room temperature to 4 °C in as fast as 7 minutes, providing a more efficient experimental environment.
- Brushless DC motor with noise levels as low as 70 dB reduces disturbance and creates a comfortable workspace.
- Built-in dynamic balance detection with automatic rotor imbalance warning helps prevent equipment damage and operational errors, ensuring safe and reliable use.
- Nine selectable acceleration and deceleration levels meet different experimental needs.
- Smooth deceleration with soft braking minimizes sample disturbance and enhances separation performance.
- Stores up to 100 user-defined programs for easy one-touch recall based on experimental needs.
- Multiple rotors and adapters are available: supports 400 mL and 200 mL bottles; 100 mL, 85 mL, 50 mL, 15 mL, 12 mL, 10 mL, 7 mL, 5 mL, 2 mL and 1.5 mL tubes; 384-well PCR plates, 96-well microplates and 8-strip PCR tubes.
Applications
- Life Sciences and Biological Research: biochemical studies, immunology, and clinical medicine-related applications.
- Pharmaceutical Industry: drug development, including CRO services.
- Environmental Protection: environmental analysis, including water quality testing and pollutant analysis.
- Chemical Industry: separation and extraction of organic and inorganic chemical samples.
- Food Industry: separation of fats, proteins and other biochemical substances.
- Soil Analysis: extraction and analysis of soil organic matter and nutrients.
- Petroleum and Mining Industry: pretreatment of petroleum and mineral samples, including sediment separation.
- Textile Industry: analysis and processing of textile fibers and blended materials.
- Microbiology: microbial culture and preservation research.
Specifications
| Specification Parameter | DG1616 | DG1616R |
|---|---|---|
| Max. Speed | 16000rpm (300-16000rpm in 1 rpm increments) | 16000rpm (300-16000rpm in 1 rpm increments) |
| Max. RCF | 28621×g (step: 1×g) | 28621×g (step: 1×g) |
| Max. Capacity | 4×400mL | 4×400mL |
| Time Setting | 30s-99h59min59s / HOLD (continuous running) | 30s-99h59min59s / HOLD (continuous running) |
| Temperature Setting | – | -10°C to 40°C |
| Speed Up / Down Gears | 9↑ / 9↓ | 9↑ / 9↓ |
| Program Storage | 100 | 100 |
| Motor Type | Brushless DC Motor | Brushless DC Motor |
| Noise Level | ≤70dB | ≤70dB |
| Power Supply | 100-240V, 50/60Hz, 650W | 100-240V, 50/60Hz, 1050W |
| Dimensions (L×W×H) | 440×640×375mm | 623×640×375mm |
| Weight | 70kg | 90kg |
| Allowed Ambient Temp & Humidity | 5~40°C, 80%RH | 5~40°C, 80%RH |
Rotors and Adapters
SR4-200
Cat. No. 19400154. Max. speed: 5500 rpm. Max. RCF: 5495 × g. Centrifugal radius: 16.25 cm.
| Capacity | Adapter | Adapter Cat. No. | Package | Tube Capacity | Tube Specifications [Ø × L mm] |
|---|---|---|---|---|---|
| 4 × 200 mL | — | — | 4 Hanging Cups, Lids, and Handles | 180 mL PP Polypropylene Centrifuge Tube | 56.5 × 123 |
| 4 × 100 mL | 100 mL Adapter | 19500050 | 2 Adapters | 100 mL round-bottom open-end tube | 45 × 117 |
| 4 × 50 mL | 50 mL Adapter | 19500051 | 2 Adapters | 50 mL conical tube | 29.5 × 116 |
| 20 × 15 mL | 15 mL Adapter | 19500052 | 2 Adapters | 50 mL conical tube | 17 × 121 |
| 32 × 7 mL | 5/7 mL Adapter | 19500053 | 2 Adapters | 5/7 mL blood collection tube | 13 × 110 |
| 48 × 2 mL | 2 mL Adapter | 19500054 | 2 Adapters | 1.5/2 mL microcentrifuge tube | 11 × 45 |
SR4-400
Cat. No. 19400155. Max. speed: 5000 rpm. Max. RCF: 4639 × g. Centrifugal radius: 16.6 cm.
| Capacity | Adapter | Adapter Cat. No. | Package | Tube Capacity | Tube Specifications [Ø × L mm] |
|---|---|---|---|---|---|
| 4 × 400 mL | — | — | 4 Hanging Cups, Lids, and Handles | 400 mL PP Polypropylene Centrifuge Tube | 80 × 125 |
| 4 × 100 mL | 100 mL Adapter | 19500045 | 2 Adapters | 100 mL round-bottom open-end tube | 45 × 117 |
| 16 × 50 mL | 50 mL Adapter | 19500046 | 2 Adapters | 50 mL conical tube | 29.5 × 116 |
| 36 × 15 mL | 15 mL Adapter | 19500047 | 2 Adapters | 50 mL conical tube | 17 × 121 |
| 76 × 7 mL | 5/7 mL Adapter | 19500048 | 2 Adapters | 5/7 mL blood collection tube | 13 × 110 |
| 136 × 2 mL | 2 mL Adapter | 19500049 | 2 Adapters | 1.5/2 mL microcentrifuge tube | 11 × 45 |
SE4-100 (Standard Accessory)
Cat. No. 19400041. For DG1616 / DG1616R & DM0636. Max. speed: 4000 rpm. Max. RCF: 2950 × g. Rotor material: stainless steel body and adapter.
| Cat. No. | Bucket | Tube | Nominal Volume | Ø × L [mm] | Adapter | Package | Tubes per Rotor | Radius [cm] | Max. RCF [g-force] |
|---|---|---|---|---|---|---|---|---|---|
| 19400045 | × 4 | × 36 | 3-7 mL | 13 × 75 | With plug | 36 | 36 | 14 | 2500 |
| 19400045 | × 4 | × 36 | 3-7 mL | 13 × 100 | — | — | 36 | 16.5 | 2950 |
| 19400044 | × 4 | × 16 | 10 mL | 16 × 100 | — | — | 16 | 15.9 | 2840 |
| 19400044 | × 4 | × 16 | 12 mL | 17 × 105 | A15V (Optional accessory) | 16 | 16 | 15.9 | 2840 |
| 19400044 | × 4 | × 16 | 15 mL | 17 × 120 | A15V (Optional accessory) | 16 | 16 | 15.9 | 2840 |
| 19400043 | × 4 | × 8 | 50 mL | 29.5 × 100 | A50V (Optional accessory) | 8 | 8 | 15.9 | 2840 |
| 19400042 | × 4 | × 4 | 100 mL | 38 × 108 | — | — | 4 | 15.9 | 2840 |
| 19400042 | × 4 | × 4 | 85 mL | 38 × 104 | A100P80; A50V (Optional accessory) | 4 | 4 | 15.9 | 2840 |
| 19400042 | × 4 | × 4 | 50 mL | 29.5 × 100 | A100P50/80; A50V (Optional accessory) | 4 | 4 | 15.9 | 2840 |
| 19400042 | × 4 | × 8 | 15 mL | 17 × 120; 13 × 100; 13 × 75 | A100P15 | 4 | 8 | 15.1 | 2700 |
| 19400042 | × 4 | × 20 | 3-7 mL | 13 × 100; 13 × 75 | A100P10 | 4 | 20 | 14.7 | 2630 |
Additional Rotors
| Rotor Model | Cat. No. | Max. Speed | Max. RCF | Centrifugal Radius | Capacity | Rotor Material | Biological Seal |
|---|---|---|---|---|---|---|---|
| AS30-2 | 19400034 | 16000 rpm | 28620 × g | 10 cm | 30 × 2 mL | Aluminum | Yes |
| AS18-5V (cone bottom) | 19400035 | 15000 rpm | 25155 × g | 10 cm | 18 × 5 mL (cone bottom) | Stainless steel body, aluminum head | Yes |
| AS12-PCR8 | 19400036 | 14000 rpm | 21912 × g | 10 cm | 12 × PCR 8-tube strip | Aluminum | Yes |
| AS60-2 | 19400037 | 14000 rpm | 21912 × g | 10 cm | 60 × 2 mL | Aluminum | Yes |
| AS6-50V (cone bottom) | 19400038 | 12500 rpm | 17468 × g | 10 cm | 6 × 15 mL or 6 × 50 mL | Aluminum | Yes |
| A8-50 (cone bottom) | 19400039 | 5000 rpm | 3968 × g | 14.2 cm | 16 × 15 mL or 8 × 50 mL | Aluminum body, stainless steel adapter (with adapters SE100P31x8, SE100P17x16) | / |
| A30-15 (cone bottom) | 19400040 | 4500 rpm | 3210 × g | 14.18 cm | 30 × 15 mL | Aluminum body, stainless steel adapter (with adapter SE100P17x30) | / |
| S2-MP | 19400062 | 4000 rpm | 2200 × g | 12.3 cm | 8 × 384 microplates / 96 microplates / ELISA plate; 4 × deep well plates | Stainless steel body, aluminum head | / |
