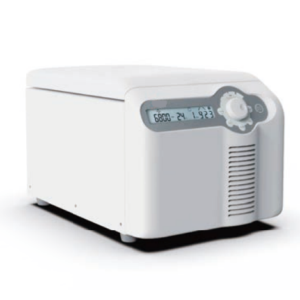

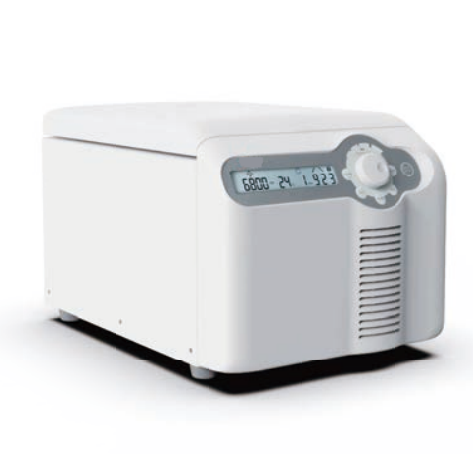

D1524 High-speed Micro Centrifuge / D1524C Hematocrit Centrifuge
Compact High-speed Micro Centrifuge & Hematocrit Centrifuge series featuring speed control up to 15,000 rpm / 21,380xg RCF, motor lock adsorption design for one-handed lid closure, maintenance-free brushless DC motor, 9 acceleration/deceleration profiles, and dual door safety locking.
Motor Lock Adsorption | Max 15,000 rpm & 21,380xg RCF | Dual Lock Lid Safety | 9 Program Storage
Applications
- High-Speed Micro Centrifuge (D1524): Widely used in molecular biology, clinical chemistry, microbiology, clinical diagnostics, and scientific research fields.
- Hematocrit Centrifuge (D1524C): Measures red blood cell volume and separates micro samples. Supports biochemical, immunological, genetic, and clinical tests, bilirubin measurement in neonatal samples, and DNA/RNA extraction across clinical and veterinary applications.
Product Features
- Wide Speed Control Range: Adjustable speed range of 200–15,000 rpm to meet diverse laboratory protocols.
- Motor Lock Adsorption Design: Innovative motor lock structure enables convenient one-handed lid closure.
- Intuitive Menu & LCD Display: Clear LCD screen with user-friendly menu navigation for simple, error-free operation.
- Maintenance-Free Brushless Motor: Reliable DC brushless motor delivers smooth acceleration, long service life, and stable operation.
- Quick Recall Program Storage: Stores up to 9 frequently used program settings for easy one-touch recall.
- 9 Acceleration & Deceleration Profiles: Selectable 9-level acceleration/deceleration rates with soft braking to protect sensitive samples.
- Multi-Function Controls: Supports speed/RCF conversion, short spin, and audible process alarm functions.
- Enhanced Safety Systems: Equipped with dual-lock lid safety, overspeed detection, over-temperature detection, and internal diagnostic systems.
Technical Specifications
| Specification Parameter | D1524 | D1524C |
|---|---|---|
| Max. Speed | 15,000rpm (200-15,000rpm in 100rpm increments) | 12,000rpm (200-12,000rpm in 100rpm increments) |
| Max. RCF | 21,380×g (step: 10×g) | 13,680×g (step: 10×g) |
| Capacity | 24×1.5/2mL, 36×0.5mL, 4×PCR-8 strips, 12×5mL, 18×5mL | AC24P (Capillary tubes×24) |
| Run Time | 30s-99 min; HOLD (continuous running) | 30s-99 min; HOLD (continuous running) |
| Acceleration / Deceleration Time | 25s ↑ / 25s ↓ | 25s ↑ / 25s ↓ |
| Motor Type | Brushless DC motor | Brushless DC motor |
| Safety Performance | Dual door lock, over-speed detection, over-temperature detection with Internal diagnosis system | Dual door lock, over-speed detection, over-temperature detection with Internal diagnosis system |
| Power Requirements | Single-phase, 200-240V, 50/60Hz, 210W; 100-120V, 50/60Hz, 200W | Single-phase, 200-240V, 50/60Hz, 210W; 100-120V, 50/60Hz, 200W |
| Noise Level | ≤64dB | ≤65dB |
| Dimensions [W×D×H] | 280 × 400 × 240mm | 280 × 400 × 240mm |
| Weight | 8.8kg | 8.8kg |
| Other Functions | Rotation speed/RCF switchover, inching operation, running process indicator, sound alert. Adjustable acceleration/deceleration at 9 levels, program storage capacity 9. | Rotation speed/RCF switchover, inching operation, running process indicator, sound alert. Adjustable acceleration/deceleration at 9 levels, program storage capacity 9. |
