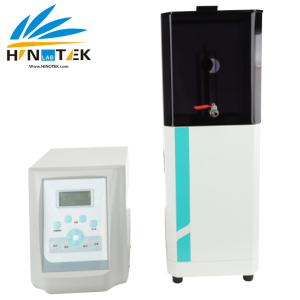

CUP-FORM (NON TOUCH)

Ultrasonic Machine Homogenizer

It can be used for asepsis and ultra micro crushing, and can break the chromosomes and broken cells through the centrifuge tube.it is for the two generation sequencing DNA samples and chromatin immunoprecipitation assay sample pretreatment tailored. compared with the traditional probe type ultrasonic homogenizer, the non-contact sample can be broken under the sealed container, no infection flying fog, the probe is not contacted with the sample, the cross contamination is avoided. It is more efficiency and safety.
A plurality of samples can be detected at once, the experiment efficiency is higher, no need to operate probes frequently, all kinds of products are in separate sealed tubes, so as to avoid cross contamination.

Optional cooling water circulation system, to facilitate the sample is in ultrasonic bath at 4 °C, energy distribution, ultrasonic effect completely. Flexible parameter setting and experimental procedure standardization, good repeatability, and high reliability results.
Gradually become an indispensable standardized tool for CHIP (chromatin immunoprecipitation) and DNA shear research platforms. The experiment has high efficiency, reliable result and good repeatability. It can handle 5ul samples at least, and it is suitable for precious samples.

FEATURES

  • No aerosol generation -enhance biological safety (such as Mycobacterium, virus, etc.) Eliminates the risk of cross contamination of samples
  • Eliminates dregs phenomenon of traditional probe
  • A variety of samples can be processed ,with a wide range of sample handling It is suitable for all kinds of standard containers
  • It can process microscale samples, the minimum to 5μL
  • The automatic continuous rotation of the centrifuge tube makes the ultrasonic energy distribution more uniform
  • It is optional to buy low temperature water bath according to customer’s demand for a variety of diameter Eppendorf tube rotating base

TECHNICAL PARAMETERS

It is optional to buy low temperature water bath according to customer’s demand for a variety of diameter

Model Scientz98-III Scientz08-II Scientz08-III
Frequency 19.5-20.5KHz 28KHz±1 KHz 20KHz±1 KHz
Power 1200W(Adjustable) 1800W (Adjustable) 2200W(Adjustable)
Adjustable Power 1-99% 1-99% 1-99%
Time 1-999min 1-999min 1-999min
Duty Ratio 1 -99% 1-99% 1 -99%
Processing Volume 700ml 2L 3L
Temperature  Display Yes Yes Yes
Crushing Support (0.1-2ml)*4 1-2ml*16 hole 5ml*8 hole 1
0-15ml*8 hole
1-2ml*32 hole 5ml*20 hole
10-15ml*17hole
Power Supply 220/110V±0.5 50Hz/60Hz 220/110V±0.5 50Hz/60Hz 220/110V±0.5 50Hz/60Hz

Eppendorf tube rotating base.

APPLICATION AREA

  • DNA Fragmentation RNA Fragmentation
  • Bacteria and cell breakdown
  • ChIP assay(Chromatin immunoprecipitation) High throughput sequencer sample pretreatment Take membrane proteins
  • Homogeneous emulsification reaction Ultrasonic treatment of precious reagents

TECHNICAL PARAMETERS

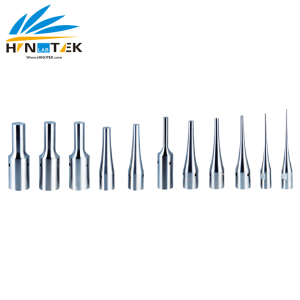

Tip Optional Reference

Tip Model (Dia) Frequency Amplitude Power Range Processing Volume
Φ2 1/12″ 20-25KHz 300um 20-250W 0.5-5ml
Φ3 1/8″ 20-25KHz 250um 30-400W 3-10ml
Φ6 1/4″ 20-25KHz 220um 60-650W 10-100ml
Φ10 5/12″ 20-25KHz/
19.5-20.5KHz
150um 100-950W 100-200ml
Φ12 1/2″ 20-25KHz 150um 100-950W 100-200ml
Φ15 5/8″ 20-25KHz/
19.5-20.5KHz
145um 200-950W 200-500ml
Φ18 3/4″ 20-25KHz 100um 200-950W 200-500ml
Φ20 3/4″ 19.5-20.5KHz 60um 400-1200W 500-1000ml
Φ25 1″ 19.5-20.5KHz 40um 800-1800W 500-1200ml
