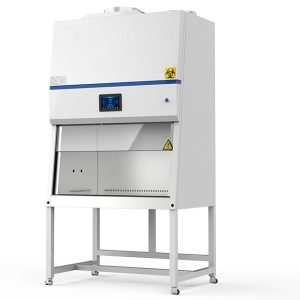

BSC-1100IIB2-Pro Series Biological Safety Cabinet (Class II B2)

100% Air Exhaust Cabinet
Three protection: operator, sample and environment.Airflow system: 0 % air recirculation, 100% air exhaust
A Class II B2 BSC, also called a total exhaust cabinet, is necessary when significant amounts of radionuclides and volatile
chemicals are expected to be used.

Advantages:

1. Time reserve function.

2. Motorized front window.

3. HEPA filter life and UV life indicator.

4. Automatic air speed adjustable with filter block.

5. With memory function in case of power-failure.

6. Work area surrounded by negative pressure, it can ensure maximum safety in work area.

7. Most accessories are standard, which saves your money. There is no need to pay more.

8. Audio and visual alarm (filter replacement, window over height, abnormal air flow velocity, etc).

9. Remote control. All functions can be realized with it, making the operation much easier and more convenient.

10. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; blower and front window.

11. Foot switch. Adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement.

Spec:

Model BSC-1100IIB2-PRO BSC-1500IIB2-PRO BSC-1800IIB2-PRO
External Size(W*D*H) 1100*750*2255 mm 1500*770*2290mm 1873*795*2280 mm
Internal Size(W*D*H) 940*600*660mm 1350*600*600mm 1700*600*660mm
Tested Opening Safety Height 200 mm(8″)
Max Opening 420mm(17″) 500mm(20″) 480mm(20″)
Inflow Velocity 0.53±0.025 m/s
Down flow Velocity 0.33±0.025 m/s
ULPA Filter Two, 99.9995% efficiency at 0.12 μm,filter life indicator.
Front Window Motorized,two-layer laminated toughened glass ≥ 6mm,anti UV.
Noise ≤ 67 dB
UV Lamp 30W*2 40W*2 40W*2
UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination.
Illuminating Lamp LED Lamp
12W*2 16W*2 16W*2
Illumination ≥1000Lux
Consumption 800W 1300W 1400W
Waterproof Sockets Two, total load of two sockets: 500W
Display 7 inch touch screen display: exhaust filter and downflow filter pressure, filter and UV lamp working time,inflow and downflow velocity, filter life, humidity and temperature, system working time etc.
Control System Microprocessor
Airflow System 0% air recirculation, 100% air exhaust
Alarm Abnormal airflow velocity; Filter replacement; Front window at unsafe height.
Exhaust Duct 4 meters PVC duct, Diameter:300mm
Material Work Zone: 304 stainless steel
Main Body: Cold-rolled steel with anti-bacteria powder coating.
Work Surface Height 750mm
Caster Foot master caster
Power Supply AC 220V±10%, 50/60Hz; 110V±10%, 60Hz (110V/60Hz is not applicable to BSC-1800IIB2-Pro)
Standard Accessory LED lamp*2, UV lamp*2,base stand, remote control, foot switch, exhaust blower,
exhaust duct, drain valve, waterproof sockets*2, pipe strap*2
Optional Accessory Water and gas tap, Electric height adjustable base stand
Gross Weight 265kg;50kg 325kg;56kg 420kg;60kg
Package (Main Body) 1250*990*1770 mm 1650*990*1820 mm 2000*1075*1910 mm
Package (Exhaust Blower (W*D*H)) 930* 800* 690 mm 930* 800* 710 mm 920* 710* 680mm
