Features:
①. 49 Sample positions.
②. 56 Reagent positions.
③. 120 Reaction cuvettes.
④. 200 tests per hour.
⑤. Probe with anti-collision function, liquid level detection function.

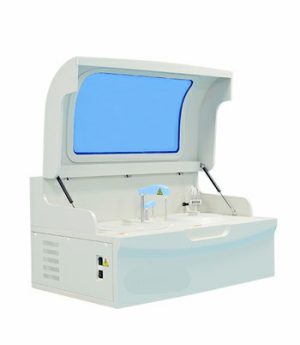

| Model | BK-280 | |
| Overall
Performance |
Throughput | 200Tests/Hour |
| Analysis Method | End-point, Fixed-time, Rate(Kinetic), Turbidimetry | |
| Certificates | CE, FDA, ISO9001, ISO14001, ISO13485 | |
| Sample & Reagent Unit | Sample Positions | 49 sample positions |
| Reagent Positions | 56 reagent positions | |
| Sample Volume | 2~70μl | |
| Reagent Volume | 20~350μl | |
| Probe | Teflon coating, withanti-collision function, liquid leveldetectionfunction. | |
| Probewashing | Automaticwashing interior and exterior | |
| ReagentCooling | Refrigerated tray with independent switch | |
| Reaction System | Temperature Control | 37±0.1℃, real-time monitor |
| Cuvettes | 120 reusable cuvettes,optical length 6mm | |
| MixerProbe | Independent stirring | |
| Washing | Automatic cuvettes washing | |
| STAT function | YES | |
| Optical System | Light Source | 12V/30W halogen lamp |
| Spectrophotometry | Post-spectral spectrophotometry | |
| Wavelength | 340,405,450,510,546,578,630,700nm | |
| Absorbance | 0~3.0Abs | |
| Calibration&QC | Calibration | Linear: K factor, 1-point, 2-point and multipoint linear
Non-Linear: Spline, Polygon, Index, Ogarithm, Logit-4P,Logit-5P |
| Quality Control | Real-time QC, Westgard multi rule, Cumulative sum check, Twin Plot(2D) | |
| Data Management | Software | Windows 7/8/10, LIS system available |
| LIS System | Bi-direction, support HL7 protocol | |
| Interface | LAN port access | |
| Printer | External, multiple reporting mode available | |
| Working Conditions | Power Supply | AC220V±10%, 60/50Hz,, 110V±10%, 60Hz, 300W |
| Temperature | 10～30℃ | |
| WaterConsumption | Deionized water:5L/H | |
| Humidity | 30-80% | |
| Size & Weight | External Size (W*D*H) | 950*612*510mm |
| Net Weight | 75kg | |
| Package Size(W*D*H) | 1118*728*1151mm | |
| Gross Weight | 130kg | |
