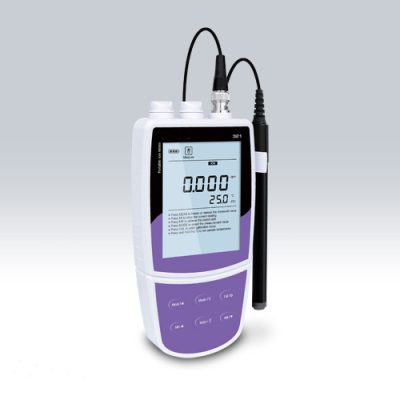

Bante321-NH3 Portable Ammonia Ion Meter
Professional portable ammonia ion meter, suitable for outdoor applications, accuracy: 1% F.S.
Features:
• Professional portable ammonia ion meter is equipped with a backlit LCD display.
• 2 to 5 points calibration from low to high concentrations.
• Selectable 8 concentration calibration points, ranging from 0.001 to 10000.
• Selectable ion measurement units, including ppm, mg/L and mol/L.
Portable Ammonia Ion Meter
• Automatic electrode diagnosis shows the calibration points and slopes.
• Automatic temperature compensation ensures accurate readings over the entire range.
• Auto-read function senses and locks the measurement endpoint.
• Calibration due alarm reminds the user to calibrate the meter regularly.
• Auto-power off effectively conserves battery life.
Portable Ammonia Ion Meter
• Setup menu allows setting the number of calibration points, ionic valency, stability criteria,
temperature unit, date and time, etc.
• Reset function automatically resumes all settings back to the factory defaults.
• Expanded memory stores or recalls up to 500 data sets.
• USB communication interface for data transfer or connecting a power adapter to the meter.
Spec:
| Model | Bante321-NH3 |
| Ion Concentration | |
| Range | 0.01 to 17000 ppm |
| Resolution | 0.001, 0.01, 0.1, 1, automatic |
| Accuracy | ±1% F.S. |
| Calibration | 2 to 5 points |
| Calibration Solutions | 0.001 / 0.01 / 0.1 / 1 / 10 / 100 / 1000 / 10000 |
| Measurement Units | ppm, mg/L, mol/L, mmol/L |
| mV | |
| Range | -1999.9 to 1999.9 mV |
| Resolution | 0.1 mV |
| Accuracy | ±0.2 mV |
| Temperature | |
| Range | 0 to 105°C / 32 to 221°F |
| Resolution | 0.1°C/°F |
| Accuracy | ±0.5°C / ±0.9°F |
| Calibration | 1 point |
| Calibration Range | Reading ±10°C/°F |
| Other Specifications | |
| Temperature Compensation | 0 to 100°C / 32 to 212°F, manual or automatic |
| Hold Function | Manual / Auto-read measurement endpoint |
| Stability Criteria | Low / High |
| Calibration Due Alarm | 1 to 31 days or off |
| Auto-Power Off | 10 / 20 / 30 minutes after last key pressed |
| Memory | Stores up to 500 data sets |
| Output | USB communication interface |
| Connector | BNC, 3.5 mm jack socket |
| Display | Custom LCD (80 × 60 mm) |
| Power Supply | 3 × 1.5V AA batteries or 5V DC power adapter |
| Battery Life | Approximately 150 hours without backlight |
| Environmental Conditions | 0 to 50°C / 32 to 122°F, relative humidity < 80% |
| Dimensions | 170 × 85 × 30 mm |
| Weight | 300 g |
