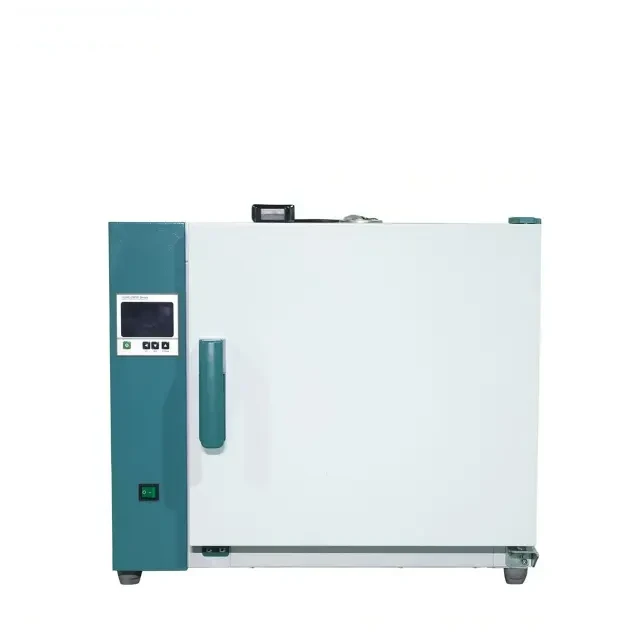

101-43F Series Horizontal Drying Oven (Anti-corrosive Type)
Used to High precision and large density sample drying treatment
Characteristics

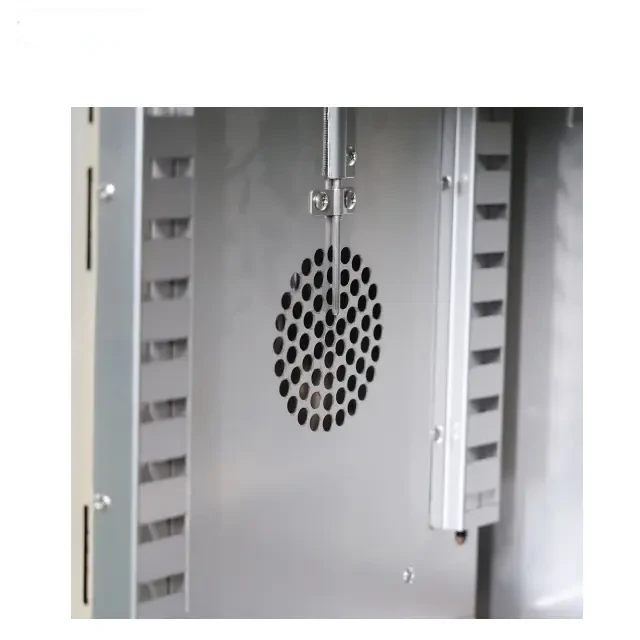

Horizontal air type, high space utilization and good temperature uniformity.
F series: SUS316 inner chamber and shelves, ensure the Anti-corrosion.
FT series: PTFE Coated chamber and shelves, ensure best Anti-corrosion.
Tolerable PH Range:
F series SUS316 material:
Room temperature: PH 4-10
>80℃: PH5-9
>100℃: Neutral only (PH 6-8)
FT series PTFE coated: PH 0-14
Technical Specifications
| Model | 101-43F | 101-71F | 101-136F | 101-225F | |
|---|---|---|---|---|---|
| 101-43FT | 101-71FT | 101-136FT | 101-225FT | ||
| Circulation Mode | Forced Convection | ||||
| Function | Usable Temp.Range | RT+10-250°C | |||
| Temp.Resolution | 0.1°C | ||||

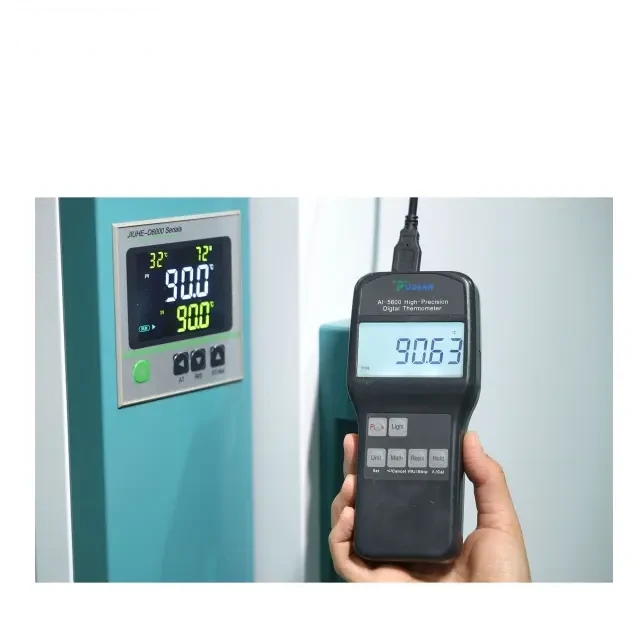

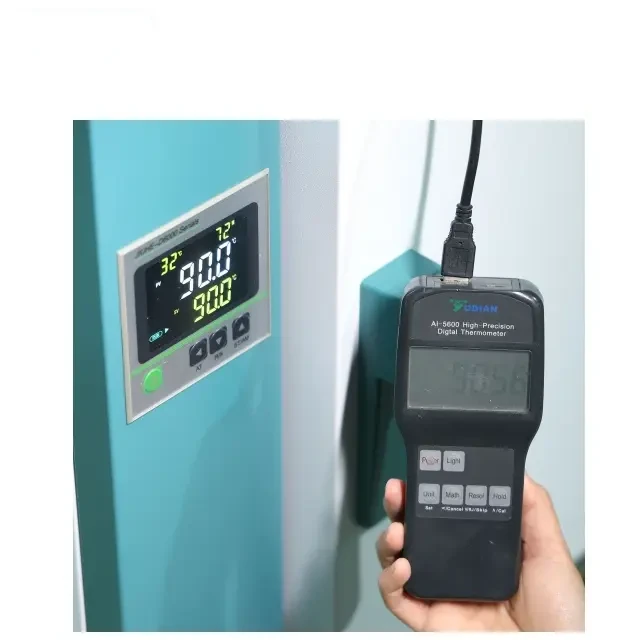

| Temp.Fluctuation | ± 1°C | ||||
| Temp.Uniformity | ± 2.5% | ||||
| Structure | Inner Chamber | F series: SUS316 stainless steel; FT series: PTFE coated | |||
| Outer Shell | Cold rolling steel electrostatic spraying exterior | ||||
| Insulation Layer | High quality rock wool board(with CE) | ||||
| Heater | Stainless steel electric heating tube | ||||
| Controller | Power Rating | 1.2kW | 1.6kW | 2.3kW | 3.0kW |
| Exhaust Hole | Exhaust Hole φ 35mm top(with function of test hole) | ||||
| Temp. Control Mode | Two Temperature Section PID Intelligent | ||||
| Temp. Setting Mode | Touch button setting | ||||
| Temp. Display Mode | Measuring Temperature: Display on the upper row; Setting Temperature: Display on the lower row (LED) | ||||
| Timer | 0-9999min(with timing wait function) | ||||
| Operation Function | Fixed Temperature Operation, Timing Function, Auto Stop | ||||
| Additional function | Sensor Deviation Correction, Temperature Overshoot Self-tuning, Internal Parameter Locking, Power-Off Parameter Memory | ||||
| Sensor | PT100 | ||||
| Safety Device | Over Temperature Sound-light Alarm | ||||
| Specification | Inner Chamber Size(W*L*H)(mm) | 350 × 350 × 350 | 450 × 350 × 450 | 550 × 450 × 550 | 600 × 500 × 750 |
| Exterior Size(W*L*H)(mm) | 652 × 472 × 587 | 752 × 472 × 687 | 852 × 572 × 786 | 902 × 622 × 986 | |
| Packing Size(W*L*H)(mm) | 745 × 605 × 745 | 845 × 605 × 850 | 945 × 705 × 950 | 955 × 755 × 1150 | |
| Volume | 43L | 71L | 136L | 225L | |
| Max Shelf Number | 9 | 13 | 17 | 25 | |
| Load Per Rack | 15kg | ||||
| Shelf Space | 25mm | ||||
| Current Rating(50/60HZ) | AC220V/5.5A | AC220V/7.3A | AC220V/9.1A | AC220V/13.6A | |
| NW/GW(KG) | 33/37 | 45/50 | 62/68 | 77/96 | |
| Accessory | Shelf | 2 | |||
| Shelf Frame | 4 | ||||
| Optional Accessories | Shelves, Program Controller | ||||
