Introduction: The Evolution of a Foundational Analytical Technique
Across countless scientific and industrial fields, the ability to isolate specific compounds from a complex solid material is a critical first step in analysis. This process, known as solid-liquid extraction, is a fundamental sample preparation technique that transfers target analytes from a solid sample matrix into a liquid solvent, which allows for their subsequent quantification and characterization. From determining the nutritional content of food to identifying pollutants in soil, the reliability of the final analytical result depends heavily on the thoroughness and efficiency of this initial extraction.
For over a century, the benchmark for exhaustive solid-liquid extraction has been the method and apparatus developed in 1879 by German agricultural chemist Franz Ritter von Soxhlet. Originally designed to quantify the lipid (fat) content in milk solids, the Soxhlet extractor introduced an ingenious process of continuous extraction using a recycling solvent. This approach became the gold standard, valued for its ability to achieve a complete extraction where simpler methods could not.
However, the classic manual Soxhlet method, while effective, is burdened by significant practical limitations. The process is notoriously slow, with a single extraction often requiring between 6 and 48 hours to complete. It consumes large volumes of organic solvents—often hundreds of milliliters per sample—leading to high purchasing and disposal costs. Furthermore, the prolonged heating of these often-flammable solvents poses considerable safety risks, mandating careful supervision and operation within a fume hood.
In response to these challenges, modern instrumentation has transformed this foundational technique. The Automatic Soxhlet Extractor represents a significant leap forward, retaining the exhaustive principle of the original method while revolutionizing its execution. By integrating automation, advanced heating technology, and efficient solvent recovery, these systems solve the core problems of time, cost, and safety. This guide provides a comprehensive exploration of the Automatic Soxhlet Extractor (View HINOTEK Automatic Soxhlet Extractor Category) , from the foundational principles of the classic method to the advanced workflow, diverse applications, and key considerations for implementation in the modern analytical laboratory.
Section 1: Understanding the Classic Soxhlet Principle
To appreciate the innovation of automated systems, one must first understand the elegant principle of the classic manual Soxhlet apparatus. The method is a form of continuous solid-liquid extraction, yet it operates through a series of discrete, repeating cycles. This unique “continuous-discontinuous” process is governed by two key physical phenomena: solvent reflux and siphoning.
Anatomy of the Manual Apparatus
 |
The traditional Soxhlet setup consists of several distinct pieces of laboratory glassware assembled into a single functional unit:
The Step-by-Step CycleThe genius of the Soxhlet design lies in its automated, repeating cycle, which washes the sample with freshly distilled solvent each time. A single cycle proceeds as follows:
|
Strengths and Critical Weaknesses
The primary strength of the classic Soxhlet method is its exceptional efficiency. Because the sample is repeatedly washed with freshly distilled solvent, the concentration of the analyte in the solvent within the thimble is always near zero at the start of each fill. This maintains a maximum concentration gradient between the solid sample and the liquid solvent, thermodynamically favoring the complete dissolution of the analyte. This thoroughness is why the technique became a trusted reference or “gold standard” method for many official analyses.
However, the operational reality of the manual method presents critical weaknesses that limit its utility in a high-throughput laboratory setting:
- Time: The passive nature of the fill-and-siphon cycle is extremely slow. A complete, exhaustive extraction can take many hours or even days, severely limiting sample throughput.
- Solvent Consumption: The apparatus requires a large volume of solvent to function correctly, leading to significant costs for purchasing high-purity solvents and disposing of the subsequent chemical waste.
- Thermal Degradation: Sensitive compounds can be damaged by prolonged exposure to the heat of the boiling flask over the long extraction period.
- Safety Hazards: The process involves continuously boiling large volumes of flammable organic solvents in open-style glassware, creating a significant fire risk and requiring constant ventilation in a fume hood to prevent operator exposure to hazardous vapors.
The tension between the method’s scientific robustness and its operational inefficiency created a clear need for a modernized solution—one that could deliver the same reliable results without the prohibitive drawbacks in time, cost, and safety.
Section 2: The Anatomy of a Modern Automatic Soxhlet Extraction System
An Automatic Soxhlet Extractor is not merely an automated version of the classic glassware; it is a fully integrated, purpose-built analytical instrument. It combines heating, extraction, cooling, and solvent recovery into a single, compact, and programmable unit, engineered specifically to overcome the limitations of the manual method.
Core Components of an Automated System
While designs vary between manufacturers, modern systems share a common set of core components that enable their speed, efficiency, and safety.
 |
-
- Control Unit: This is the operational hub of the instrument. Modern units typically feature a large touch screen interface that allows operators to select, program, and save multiple extraction methods. Critical parameters such as temperature, heating ramp rates, and the duration of each extraction stage can be precisely defined and stored, ensuring consistency and reproducibility. Advanced systems may also offer PC software for more complex method development, control, and documentation.
- Multi-Position Heating Block: A key feature for enhancing throughput is the replacement of the single heating mantle with a multi-position heating block. These systems commonly feature two, four, or six extraction positions, each with individual temperature control. This allows a batch of multiple samples to be processed simultaneously under identical or varied conditions, dramatically increasing laboratory productivity.
 |
- Extraction Chamber and Condenser Assembly: The extraction takes place within sealed, robust units that house the sample thimbles and beakers. These are connected to an efficient cooling circuit that supplies the condensers. The entire assembly is typically enclosed behind a safety glass door, which protects the operator from hot surfaces and potential splashes while still allowing for visual monitoring of the process.
- Solvent Recovery System: One of the most significant economic and environmental advantages is the integrated solvent recovery system. After the extraction phase is complete, the instrument automatically evaporates the solvent from the collection beakers, condenses it, and collects it in an internal reservoir. Recovery rates often exceed 85%, allowing the solvent to be reused for subsequent extractions. This drastically reduces solvent consumption and waste disposal costs.
- Batch Handling Tools: To streamline the workflow and minimize operator error, many systems come with specialized racks or tools for handling a full batch of extraction beakers and thimbles at once. This simplifies the loading and unloading process and reduces the risk of sample mix-ups.
Advanced Features and Design Considerations
Beyond the core components, modern Automatic Soxhlet Extractors incorporate numerous advanced features designed to enhance safety, reliability, and flexibility.
- Safety Mechanisms: These instruments are engineered with safety as a priority. Common features include integrated sensors to detect solvent leaks (particularly for highly volatile solvents like diethyl ether), over-temperature protection for the heating block, and fully enclosed solvent dispensing systems that prevent operator exposure to fumes.
- Material and Construction: Components that come into contact with solvents and samples are constructed from inert materials like borosilicate glass, stainless steel, and solvent-resistant polymers (e.g., Viton seals) to prevent contamination and ensure long-term durability. The entire instrument is built to comply with international electrical safety standards.
- Scalability: For laboratories with growing needs, some systems are designed to be modular. This allows multiple extraction units (e.g., up to four 6-place units) to be connected and controlled by a single central controller, enabling simultaneous, unattended processing of up to 24 samples.
The architecture of a modern system is a holistic engineering solution. Each component—from the multi-position heater to the solvent recovery tank—is designed to directly address a specific pain point of the traditional process, marking a clear evolution from a manual laboratory technique to a sophisticated and powerful analytical instrument.
Section 3: The Automated Workflow: A Revolution in Speed and Precision
The dramatic increase in speed offered by modern automated systems is not simply due to better heating; it is the result of a fundamental change in the extraction workflow. Instead of relying on the slow, passive siphoning of the classic method, automated extractors employ an active, multi-stage process that is significantly more efficient. This approach is often based on the Randall or “submersion” method, which re-engineers the extraction timeline for maximum speed.
Detailed Breakdown of the Three Stages
A typical automated extraction program consists of three distinct, programmable stages:
- Stage 1: Boiling (Immersion Phase): This first stage represents the most significant departure from the classic method and is the primary source of its speed. The sample, housed in its thimble, is lowered directly into the collection beaker and fully immersed in the boiling solvent. This direct, high-temperature contact ensures rapid and intimate interaction between the hot solvent and the entire sample matrix, aggressively dissolving the most readily available analytes. This active immersion achieves in 30 to 60 minutes what might take hours in a traditional setup.
- Stage 2: Rinsing Phase: Following the initial boiling stage, the sample thimble is automatically raised so that it is positioned above the boiling solvent. The system then operates more like a classic Soxhlet extractor. Pure solvent continues to vaporize, condense, and drip through the sample. This rinsing step serves to wash out any residual analyte that was not extracted during the immersion phase, ensuring the extraction is exhaustive and complete. It combines the speed of hot extraction with the thoroughness of the traditional principle.
- Stage 3: Solvent Recovery: Once the rinsing stage is complete, a valve closes the solvent path to the sample, and the system focuses on solvent reclamation. The heaters gently continue to warm the collection beakers, causing the solvent to evaporate. The vapor is then condensed and collected in a dedicated internal reservoir for reuse. This stage continues until only the non-volatile, extracted analyte (e.g., fat or oil) remains in the beaker. This step not only saves solvent but also conveniently concentrates the extract, often eliminating the need for a subsequent, time-consuming rotary evaporation step.
Beyond the Standard: Other Programmable Extraction Modes
To provide maximum flexibility for diverse sample types and analytical requirements, many advanced automated systems offer several pre-programmed or customizable extraction methods beyond the standard three-stage process.
- Hot Extraction (Randall Method): This is the most common and fastest method, consisting of the boiling and rinsing stages as described above.
- Soxhlet Extraction: The system can be programmed to replicate the classic method, where the extraction chamber fills with condensed solvent and is then emptied back into the beaker. While slower, this may be required by certain historical analytical protocols.
- Continuous Flow Extraction: In this mode, condensed solvent flows continuously through the sample without accumulating in distinct cycles. This can be advantageous for highly permeable samples.
- Soxhlet CH Standard: This refers to specific standardized methods pre-loaded into the instrument’s software, ensuring compliance with established protocols, such as those used in certain national or industry standards.
This strategic re-engineering of the extraction process is the core of the automated system’s value. By front-loading the workload into an aggressive, high-energy boiling phase and using the more traditional rinsing phase as a polishing step, the system optimizes the use of time and energy, revolutionizing productivity in the analytical laboratory.
Section 4: Key Applications of Automatic Soxhlet Extraction
The speed, precision, and reliability of the Automatic Soxhlet Extractor have made it an indispensable tool across a wide range of industries where accurate analysis of solid samples is critical. Its applications are directly tied to quality control, regulatory compliance, and product safety.
Food, Feed, and Agricultural Analysis (The “Fat Analyzer”)
The most widespread application of this technology is in the food and animal feed industries. In this context, the Automatic Soxhlet Extractor is commonly referred to as a Fat Extractor, Fat Analyzer, or Crude Fat Analyzer. It is the primary instrument used for determining the crude fat or total fat content of a vast array of products, including:
- Meat and meat products
- Milk and dairy products
- Cereals, grains, and oilseeds
- Chocolate and cocoa products
- Baked goods
- Pet food and animal feed formulations
This analysis is essential for accurate nutritional labeling, verifying product quality, and ensuring that both raw materials and finished goods meet formulation specifications. Crucially, the use of automated Soxhlet systems is specified in numerous official analytical methods published by regulatory and standards bodies like the AOAC INTERNATIONAL. Methods such as AOAC 960.39 (Fat in Meat) and AOAC 991.36 (Fat in Meat and Meat Products, using the submersion/Randall method) validate the instrument’s results for compliance purposes, a non-negotiable requirement for accredited laboratories.
Environmental Science and Pollutant Testing
In the field of environmental analysis, automated Soxhlet extraction is a vital tool for preparing samples for the detection of organic pollutants. It is used to efficiently extract non-volatile and semi-volatile organic compounds from complex solid matrices such as soil, sediment, sludge, and industrial waste.
The instrument plays a key role in monitoring levels of:
- Persistent Organic Pollutants (POPs)
- Polychlorinated Biphenyls (PCBs)
- Pesticides and herbicides
- Dioxins and furans
- Total Petroleum Hydrocarbons (TPH)
The reliability of this technology for environmental testing is underscored by its inclusion in official regulatory methods. The U.S. Environmental Protection Agency (EPA) Method 3541 specifically details the procedure for Automated Soxhlet Extraction, establishing it as an approved and validated technique for labs conducting analyses under regulatory frameworks like the Resource Conservation and Recovery Act (RCRA).
Pharmaceutical and Natural Product Industries
In pharmaceutical development and manufacturing, the system is used to extract Active Pharmaceutical Ingredients (APIs) from solid dosage forms or raw materials for quality control and potency analysis.
It is also widely used in phytochemistry and the natural products industry. Researchers use the extractor to isolate and quantify bioactive compounds from botanical sources like herbs, seeds, and flowers. These extracts, containing compounds such as alkaloids, flavonoids, terpenes, and essential oils, are foundational for research into new medicines and the development of nutraceuticals and cosmetics.
Polymer and Materials Testing
In industrial quality control, the Automatic Soxhlet Extractor is used to analyze polymers and other materials. The process effectively extracts components such as:
- Additives and plasticizers
- Residual monomers
- Oils and waxes
- Other low molecular weight compounds
This analysis is critical for verifying material composition, ensuring products meet performance and safety standards, and for research and development of new materials. The instrument’s versatility extends to other sectors as well, including the analysis of finishes on textiles, extractable compounds in paper pulp, and lipid content in biomass for biofuel production. In all these fields, the value of the Automatic Soxhlet Extractor is defined by its ability to generate the reliable, reproducible data necessary for making critical decisions related to product quality, public safety, and regulatory compliance.
Section 5: A Practical Guide to Optimizing Soxhlet Extraction
The performance of even the most advanced Automatic Soxhlet Extractor is fundamentally dependent on proper methodology. High-quality, reproducible results are built on a foundation of meticulous sample preparation and correct solvent selection.
The Foundation of Success: Sample Preparation
No analytical instrument can compensate for a poorly prepared sample. The goal of preparation is to maximize the surface area of the sample that is exposed to the solvent, ensuring a rapid and complete extraction.
- Grinding and Homogenization: The single most important step is reducing the sample’s particle size. Grinding a solid sample into a fine, homogenous powder dramatically increases its surface area. This allows the solvent to penetrate the matrix more quickly and efficiently, significantly shortening the required extraction time and improving the completeness of the extraction.
- Drying: For many sample types, particularly those with high moisture content, a drying step is essential. Water can prevent non-polar solvents like hexane from effectively penetrating the sample matrix, leading to incomplete fat extraction. Samples are typically dried in a convection oven until a constant weight is achieved.
- Use of Dispersing Agents: Oily, gummy, or finely powdered samples can have a tendency to clump or compact within the thimble, which impedes solvent flow. To prevent this, a dispersing agent like anhydrous sodium sulfate or clean sand is often mixed with the sample. This keeps the sample matrix free-flowing, prevents channeling, and ensures that the entire sample is evenly exposed to the solvent throughout the extraction process. Anhydrous sodium sulfate has the added benefit of chemically binding any residual moisture.
Choosing the Right Tool: Solvent Selection Principles
The choice of solvent is critical to the success of any extraction. The selection is guided by the fundamental chemical principle of “like dissolves like”—the polarity of the solvent must be well-matched to the polarity of the target analyte.
- Polarity Matching: Non-polar compounds like fats and oils are best extracted with non-polar solvents (e.g., hexane). More polar compounds, such as certain alkaloids or flavonoids, require more polar solvents (e.g., ethanol).
- Other Solvent Properties: Beyond polarity, an ideal extraction solvent should have a relatively low boiling point to allow for easy evaporation and recovery without requiring excessive heat. It must also be of high purity to avoid introducing contaminants into the extract and chemically inert so that it does not react with the sample.
The following table provides a practical guide for selecting the appropriate solvent for various common applications.
| Solvent Name | Polarity | Boiling Point (°C) | Primary Target Analytes | Common Applications / Industries |
|---|---|---|---|---|
| n-Hexane | Non-Polar | 69 | Lipids, fats, oils, grease | Food & Feed (Crude Fat), Environmental (Oil & Grease) |
| Petroleum Ether | Non-Polar | 35-60 | Lipids, fats, oils | Food & Feed (Crude Fat), Natural Products |
| Dichloromethane | Intermediate | 40 | Alkaloids, PCBs, phenols, pesticides | Environmental Analysis, Pharmaceutical Extraction |
| Ethanol | Polar | 78 | Polyphenols, flavonoids, some alkaloids | Natural Products, Botanical Extracts |
| Acetone | Polar | 56 | Flavonoids, phenols, various organic compounds | Natural Products, Polymer Additives |
| Acetone/Hexane (1:1) | Intermediate | ~55 | Broad range of semi-volatile organic compounds, PCBs | Environmental Analysis (EPA Method 3541) |
Ensuring Safety and Data Integrity
Consistent, reliable results depend on good laboratory practice. Even with automated systems, certain quality control steps are essential.
- Ventilation: While automated systems are enclosed, they should still be operated in a well-ventilated area or under a fume hood as a best practice, especially when working with highly volatile or toxic solvents.
- Method Blanks: A method blank (an empty thimble run through the entire process) should be analyzed with each batch of samples. This helps to identify and quantify any potential contamination coming from the solvents, thimbles, or the instrument itself.
- Matrix Spikes and Duplicates: To validate the performance of the method for a specific type of sample, matrix spikes (a sample to which a known amount of analyte is added) and duplicates (two aliquots of the same sample processed separately) are often run. These quality control samples help to document the accuracy (bias) and precision of the results within a given sample matrix.
Section 6: Selecting the Right Automatic Soxhlet Extractor for Your Laboratory
Choosing the right Automatic Soxhlet Extractor is a strategic decision that requires a careful evaluation of a laboratory’s specific technical, operational, and business needs. An informed choice ensures the instrument will not only meet current analytical demands but also support future growth.
Defining Your Needs: Key Selection Criteria
A thorough assessment should be based on the following key criteria:
- Sample Throughput: The primary consideration is the number of samples processed per day. This will determine whether a 2, 4, or 6-position system is most appropriate. For high-volume labs, scalable systems that allow multiple units to be linked offer a clear path for future expansion.

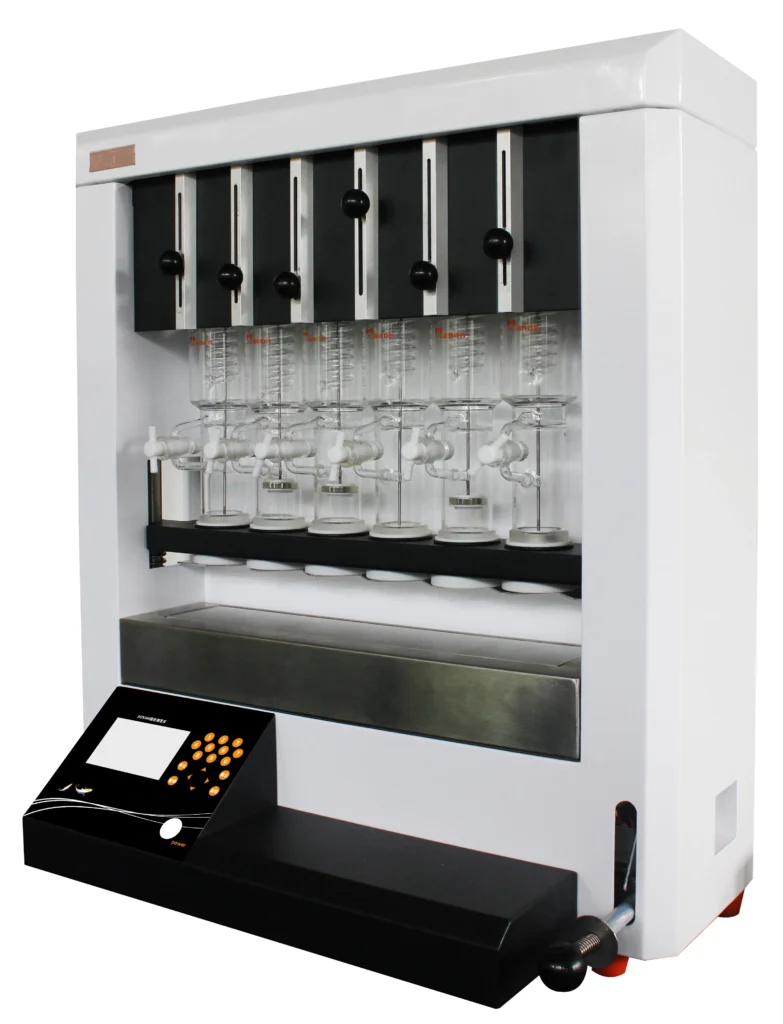

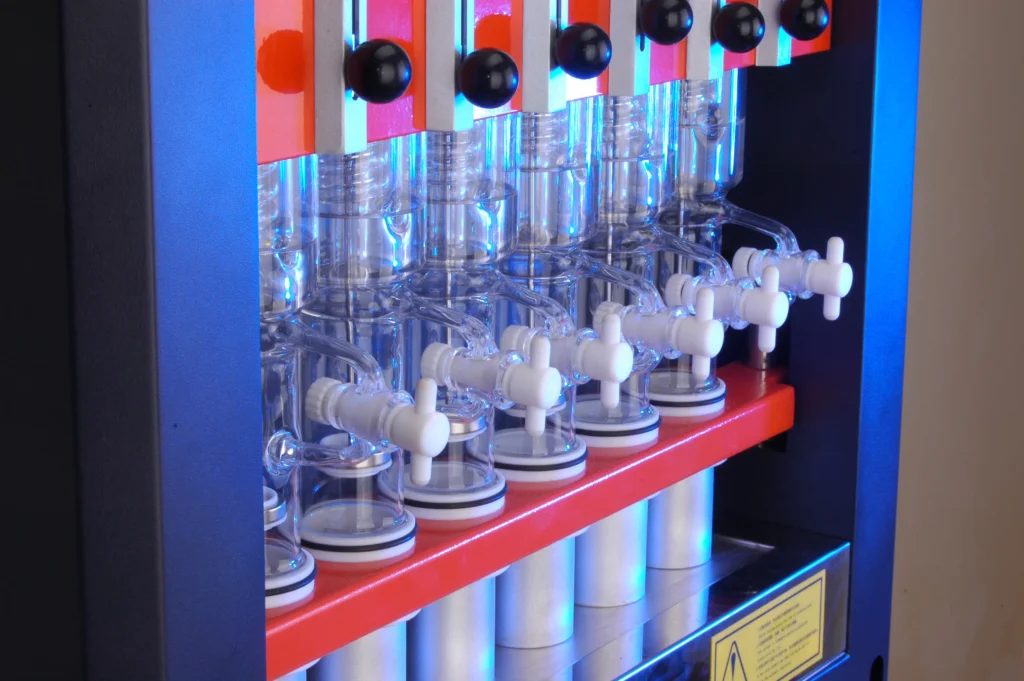

（The three models of Automatic Soxhlet Extractor from HINOTEK – SOX406, SOX606, and SZF-06C – are all 6-position systems.) - Application and Solvent Compatibility: The types of samples and analytes will dictate the required technical specifications. This includes the maximum operating temperature (some models reach up to 300°C) and ensuring that the instrument’s seals and tubing are chemically resistant to the solvents that will be used.
- Degree of Automation: Laboratories should evaluate the level of unattended operation they require. Fully automated systems that manage every stage from the initial immersion to the final solvent recovery and automatic shutdown can run overnight, maximizing productivity and freeing up valuable technician time for other tasks.
- Regulatory Compliance: For accredited laboratories or those performing analyses for regulatory purposes, this is a critical factor. The chosen system should have documented compliance with, or be suitable for use with, key industry standards and official methods, such as those from AOAC, ISO, and the EPA.
- Footprint and Utilities: The physical space available in the lab is a practical constraint. The dimensions of the instrument must be considered, along with the laboratory’s ability to provide the necessary electrical power and a consistent supply of cooling water for the condensers.
Decoding the Terminology: “Fat Analyzer” vs. Other Technologies
It is important for prospective buyers to understand the specific meaning of terminology used in the market. While Automatic Soxhlet Extractors are frequently and correctly marketed as a Fat Analyzer for food and feed applications, this term can also refer to completely different technologies.
For instance, consumer-grade body composition scales and some handheld devices are also called “fat analyzers.” These instruments, however, use a technique called Bioelectrical Impedance Analysis (BIA), which estimates body fat by passing a weak electrical current through the body and measuring the resistance. BIA is an estimation method and is entirely different from the chemical extraction performed by a Soxhlet system.
The Automatic Soxhlet Extractor provides a direct, gravimetric determination of crude fat—the total amount of material extracted from a sample by a solvent. This is the definitive, physical measurement required by official food analysis methods and for regulatory nutritional labeling. Clarifying this distinction is essential for ensuring that a laboratory invests in the correct technology for its analytical needs.
Conclusion: Enhancing Productivity, Safety, and Reproducibility
The transition from manual glassware to a modern Automatic Soxhlet Extractor offers transformative benefits for any laboratory engaged in solid-liquid extraction. The advantages are clear and compelling:
- Speed: Automated systems are significantly faster, reducing extraction times from many hours to typically under an hour, thereby increasing sample throughput dramatically.
- Cost-Efficiency: The integrated solvent recovery feature drastically cuts down on solvent consumption and waste disposal, leading to substantial long-term operational cost savings.
- Safety: The enclosed, automated design minimizes operator exposure to hot surfaces and hazardous solvent fumes, creating a much safer working environment.
- Precision and Reproducibility: By automating the process and removing the variability of manual operation, these systems deliver highly consistent and reproducible results, improving data quality and confidence.
Ultimately, an Automatic Soxhlet Extraction System is more than just a piece of laboratory equipment. It is a strategic investment in efficiency, safety, and data integrity. For the modern analytical laboratory, it is an essential tool for achieving accurate, compliant, and productive results.
If you are ready to find the right Automatic Soxhlet Extractor for your laboratory, please browse our complete product range: Automatic Soxhlet Extractor
This guide is maintained by HINOTEK’s core technical team, comprised of senior engineers and application scientists with over two decades of hands-on experience in fields such as microscopy, centrifugation, and spectrophotometry. We are committed to ensuring that every piece of information in this guide—from instrument principles and technical specifications to laboratory procurement advice—maintains the highest level of accuracy and timeliness.
This content is regularly reviewed and updated to reflect the latest industry standards and technological advancements. We value feedback from the global scientific community. Should you have any questions or suggestions, or wish to discuss any technical details, please do not hesitate to contact our expert team at [email protected].
