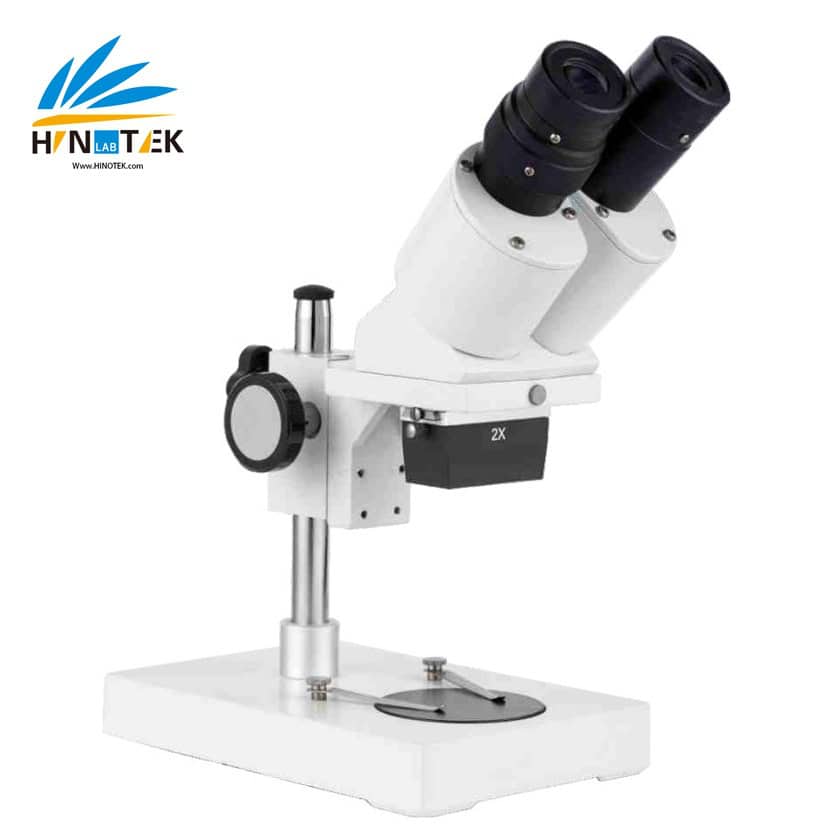

XTX-2A Step Stereo Microscope

Optical Data

Objective Eyepiece
WF5X WF10X WF15X WF20X
Magnification Field of View                 (mm) Magnification Field of View                 (mm) Magnification Field of View                 (mm) Magnification Field of View                 (mm)
1X 5X 20 10X 20 15X 15 20X 10
2X 10X 10 20X 10 30X 7.5 40X 5
3X 15X 7 30X 7 45X 5 60X 3.5
4X 20X 5 40X 5 60X 3.8 80X 2.5

Specifications Lists

Component Specifications Model
XTX-2A
Viewing Head 55-75mm 45° inclined binocular head, interpupillary distance is from 55mm to 75mm
55-75mm 90° inclined binocular head, interpupillary distance is from 55mm to 75mm
Eyepiece WF10X /20MM
WF15X / 15MM
WF20X / 10MM
Objective 1X
2X
3X
4X
Working Distance 57mm
Illumination NO
incandescent light
LED
