Description

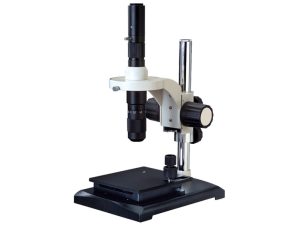

- XTM series monocular zoom microscopes, they have long working distance, clear and smooth image quality, convenience operation etc. They can be used for inspection of electro-industry product line and printed circuit board.
Feature
▲ Standard C mount design, connecting the camera directly.
▲ Digital & video camera, CCD camera, and photography eyepiece can be chosen.
▲ XTM-1 series are equipped with outside rotating optical body.
▲ XTM-2 series are equipped with inside rotating optical body, annular LED illumination can be chosen.
▲ The objective range of zoom magnification 0.7X~4.5X.
Specification
- Product configuration and main parameter
XTM-1 series
XTM-1A
XTM-1B
XTM-1CModelSpecificationXTM-1AXTM-1BXTM-1CCCD adapter1XObjectiveObjectives range of zoom magnification 0.7X~4.5XWorking distance88mmVertical effective movement10mm<=h<215mm10mm<=h<265mm10mm<=h<240mmBase size260X290X55mm300X240X25mm240X180X25(mm) with movable stage, movement range:42X42(mm)Illumination modelReflected light source:12V10W halogen lamp with reflector cup and adjustable brightnessTransmitted light source:12V10W halogen lamp and adjustable brightnessNo light source
XTM-2 series
XTM-2A
XTM-2B
XTM-2CModelSpecificationXTM-2AXTM-2BXTM-2CCCD adapter1XObjectiveObjectives range of zoom magnification 0.7X~4.5XWorking distance88mmVertical effective movement10mm<=h<215mm10mm<=h<265mm10mm<=h<240mmBase size260X290X55mm300X240X25mm240X180X25(mm)with movable stage, movement range:42X42(mm)Illumination modelReflected light source:12V10W halogen lamp with reflector cup and adjustable brightnessTransmitted light source:12V10W halogen lamp and adjustable brightnessNo light source
