XPL-1/XPL-2 Polarization Microscope


  • XPL-1/XPL-2 series polarizing microscope are appled to differentiate componen of matters that have birefraction characterist,as a sort of import tool in pharmacology, geognosy, mechanism, metallurgy to research crystal, mineral, rock and metallurgical form. The instrument, are equipped with strain-free plan achromatic objectives and wide field eyepieces, high precision rotatable polarizing stage and excellent accessories. They can be applied in single polarizing, orthogonal, conoscope. These productes have good sculpt and ateady mechanical structure, so that operate comfortably and expediently. They are the ideal instruments for factory,mine, scientific research and university to check, research and teaching ect.

  • Specification
    XPL-1Cover glass thickness0.17
    XPL-2No Cover glass
    Wide field WF10Xfield number: Φ18mm)
    Dividing eyepiece 10Xfield number: Φ18mm)0.10mm/Div
    Strain-free plan achromatic objective
    PL 4X/0.10 POL W.D17.94mm
    PL L4X/0.12 POL W.D17.9 mm
    PL 10X/0.25 POL W.D8.8 mm
    PL L10X/0.25 POLW.D8.8 mm
    PL 40X/0.65 POLspring W.D0.56 mm
    PL L40X/0.60 POLspring
    W.D3.73 mm
    PL 100X/1.25 POLspringoil W.D0.36 mm
    PL L60X/0.70 POLspring W.D1.34 mm
    Transmitted illuminating system
    6V20W halogen lamp,brightness adjustable 6V20W
    Rotatable 360°have 0,90,180,270 scale
    Abbe condenser N.A.1.25 with iris diaphragm
    Rotatable stage,diameter Ø150mm,360°graduated(in 1°increments),minimum vernier division:6′,center adjustable and with tightener.
    Quadruple (the center of objective is adjustable)
    Intermediate attachment
    Integrated analyzer, can be switched to normal or polarizing observe freely, enable 0~90° rotated and minimum vernier division:12′
    Pller Bertrand lens and center adjustable
    λλ/4 and quartz wedge compensator
    Eyepiece tube
    Trinocular inclined 30°and enable to shoot in 100% light flux
    Focus system
    Coaxial coarse/fine focus with tension adjustable and up stop device, minimum division of fine focusing:2μm

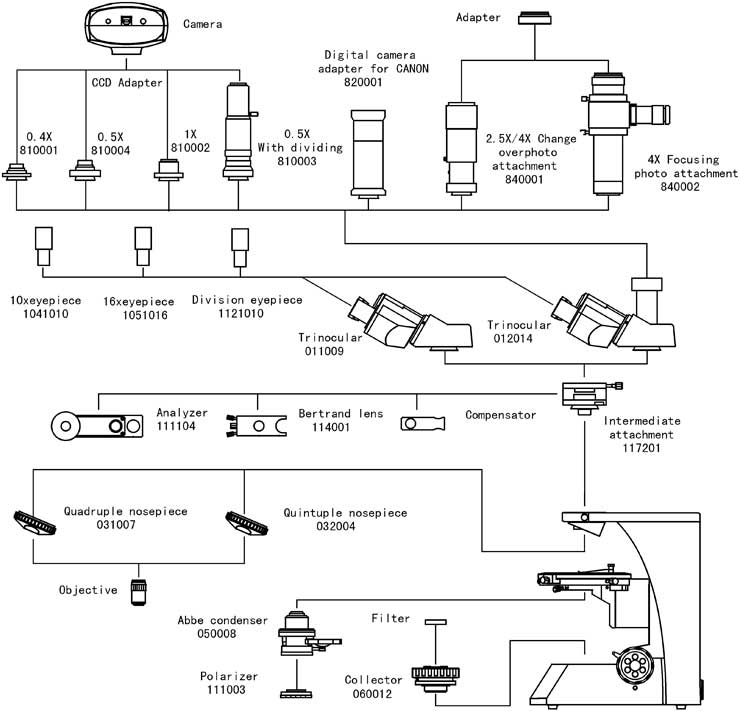

    Optional Accessory
    Cover thickness:0.17
    No cover glass
    Slide movingholder
    Moving range30mm×25mm
    CCD adapter
    0.5X1X0.5X with dividing
    USB output1.3M/3.0M/5.0M/10.0 M pixel
    VIDEO output380/520 TV line
    Digital camera adapter
    Infinity optical systemModelXPL-1A/XPL-2A


  • m
