XPL-1500/XPL-1503/XPL-1530 Polarization Microscope

SKU: xpl-1500-series Category: Tags: ,
Description

  • XPL-1500 series transmitted and reflected polarization microscopes are utilized polarize light to observe and research the matter which have double refraction features, the user can make single polarizing observation, orthoscopic observation, conescopic observation. They are applied in geology, chemicals, physic and leechdom fields. They are also widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal. They are the ideal instruments for scientific research and universities teaching demo.
    Features
    ▲  Transmitted, Reflected, transmitted/reflected illumination can be choosn
    ▲  Equipped with strain-free plan objectives(center adjustable) and wide field eyepiece
    ▲  Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2μm
    ▲  Rotatable stage, 360° graduated in 1° increments, minimum retardation resolution 6′ center adjustable and with tightener£¬Stage vertical effective movement up to 30mm








Specification
  • Standard Configuration
    Model
    XPL-1500 (Transmitted illumination)
    XPL-1530 (Transmitted & reflected illumination)
    XPL-1503 (Reflected illumination)
    Eyepiece
    Wide field  WF10X (Φ18mm)
    Division eyepiece  10X (Φ18mm)  0.10mm/div
    Objective (center adjustable)
    Strain-free plan achromatic objective
    (cover glass:0.17mm) PL 4X/0.10
    Strain-free plan achromatic objective (no cover glass) PL 5X/0.12
    Strain-free plan achromatic objective
    (cover glass:0.17mm)PL 10X/0.25
    Strain-free plan achromatic objective (no cover glass) PL L 10X/0.25
    Strain-free plan achromatic objective(cover glass:0.17mm) PL 40X/0.65 (spring)
    Strain-free plan achromatic objective (no cover glass)
    PL L40X/0.60 (spring)
    Strain-free plan achromatic objective(cover glass:0.17mm) PL 60X/0.85 (spring)
    Strain-free plan achromatic objective (no cover glass)
    PL L 60X/0.75 (spring)
    Reflected illumination
    Polarizer

    Rotatable
    Illumination
    6V 20w, halogen lamp, adjustable brightness

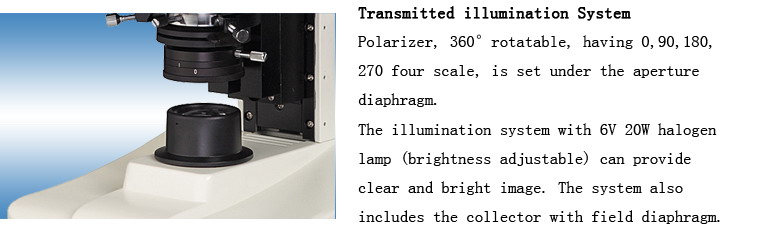

    Transmitted illumination
    Polarizer
    360°rotatable, have 0,90,180,270 four scale

    Collector
    For halogen lamp illumination
    Illumination
    6V 20w, halogen lamp, adjustable brightness
    Abbe condenser
    N.A. 1.25  Rack & pinion adjustable
    Eyepieces tube
    Trinocular, Inclination of 30˚, can send 100% of the image light to top photography port
    Intermediate attachment
    Built-in analyzer can switch to normal observe or polarizing observe freely, 90° rotatable with scale, minimum retardation resolution 12′
    Bertrand lens, impellent style, center adjustable
    ¦Ë compensator
    ¦Ë/4 compensator
    Quarts wedge compensator
    Nosepiece
    Quadruple (Frontward ball bearing inner locating)
    Focus system
    Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm
    Stage
    Rotatable stage, Diameter ¦µ150mm, 360° graduated (in 1° increments), minimum retardation resolution 6′ center adjustable and with tightener
