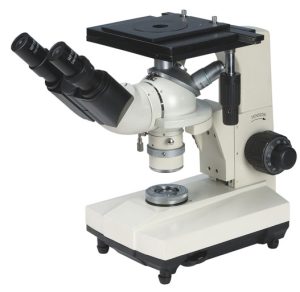

XJP-401B

SKU: xjp-401b-series Category: Tag:

Description

Technical specifications
Model
XJP-401A
XJP-401B
Observation head
45 degrees monocular head

45 degree hinged binocular head (55mm-75mm)

eyepiece
WF10×/18mm
Half plane achromatic objective
Magnification
10×
100×
numerical aperture
0.25
1.25
system
dry
oil
Operating distance
7.31mm
0.37mm
Half flat field
Achromatic objective
Magnification
40×
numerical aperture
0.65
system
dry
Operating distance
0.66mm
Total magnification
100×-1250×
Barrel length
160mm
focusing
Coarse and micro coaxial focusing mechanism, micro lattice value, 0.002mm, focusing range, 30mm
Work platform
175mm×135mm
light source
Halogen lamp6V/20W,AC 220V/110V
Object carrier
Φ100mm  Φ20mm  Φ42mm
Available for accessories
eyepiece:WF12.5×
