- Through standard HDMI interface to stream the video to displayer or HDTV;
- Aptina CMOS sensor;

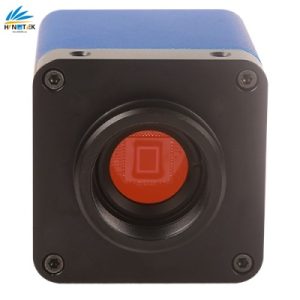

- Easy connecting to other equipment on the production line with the C-mount optical interface;
- High-resolution and high frame rate, perfect color reproduction, highly integrated and compact, low failure rate and stable performance;
- 1280 × 720 (720P) resolutions to match the current high-definition displayer on the market;
- XCAM720PHB/PHC embedded XCamView based on the Qt platform. The camera characteristic can be controlled by XCamView through the mouse. The other basic processing and choosing can also be realized by the XCamView;
- XCAM0720PHB/PHC can meet various applications and can be widely used in industrial inspection, education and research, materials analysis, precision measurement, medical analyses etc.
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Responsivity Dynamic range SNRmax |
FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
|
XCAM0720PHB |
720P/1.2M/AR0130(C) 1/3″ (4.80×2.70) |
3.75×3.75 | 6.5 V/lux-sec 85.3dB 44dB |
30@1280×720 | 1×1 | 0.21ms~2000ms |
|
XCAM0720PHC |
720P/2M/IMX322(C) 1/2.8″ (5.78×3.02) |
2.8×2.8 | 510mv with 1/30s (G Sensitivity) 0.15mv with 1/30s (Dark Signal) | 30@1280×720 (HDMI) 1920×1080 (Capture) |
1×1 | 0.06ms~1900ms |

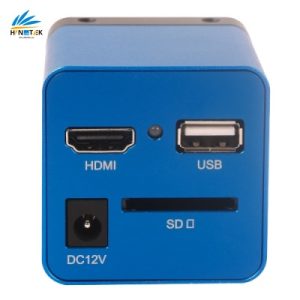

| Camera Interface | |
|---|---|
| HDMI | HDMI Output Port |
| USB | USB Mouse for XCamView Control |
| DC12V | Power Input Slot |
| SD | SD Card Slot |
| Overall Dimensions | |
| Width x Depth x Height | 50 mm (1.97”) x 50 mm (1.97”) x 61mm (2.4”) |
| Shipping Weight | 0.47kg (0.55 lbs) |
| Operating Environment | |
| Operating Temperature(in Centidegree) | -10~ 50 |
| Storage Temperature(in Centidegree) | -20~ 60 |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 5V/1A Adapter |
| Optional Accessories | |
| Lens | C-mount Lens |
| Cable | HDMI Cable |
| Memory Card | SD Card |
| Mouse | USB mouse/USB Wireless Mouse |
