This new generation of orbital shakers offers a range of features. Together with satisfactory performance and reliable operation over extended periods, these features make the orbital shaker a dependable choice.
Applications
Widely used for bacterial culture, fermentation, hybridization, biochemical reactions, and enzyme and tissue research requiring precise temperature and shaking speed control.
Product Features
- Microprocessor control of temperature, speed and time, with built-in power failure protection that automatically resumes operation when power is restored;
- A large LCD simultaneously displays temperature, speed and time, with an intuitive menu-based interface. A lockable operating mode prevents accidental operation;
A low-heat brushless DC motor provides high starting torque, a wide speed adjustment range, constant torque and maintenance-free operation;
- Users can adjust the motor starting torque to prevent failure to start under excessive loads. The instrument automatically stops if shaking becomes too vigorous, with smooth startup and deceleration;
- A range of proprietary shaking racks and clamps is available. Easy rack and clamp replacement greatly improves working efficiency;
- Multi-step programming simplifies complex experimental procedures and enables automatic control and operation; (optional)
Heated Orbital Shaker
Combining shaking with a heated platform, this unit is suitable for gel staining or destaining and combinatorial chemistry. It accommodates experimental samples requiring rapid heating and completely open access for orbital shaking, agitation, mixing and incubation. It features rapid heating and a wide temperature range, with a maximum temperature exceeding 100℃, overcoming the limitations of existing domestically manufactured shakers that cannot operate at high temperatures.
Standard Tray Fitting
The multifunction spring clamp is made of lightweight, attractive aluminum and is easy to remove. It accommodates flasks, test tubes, microplates and other vessels. (Beaker clamps or trays are optional.)
Technical Specifications
| Specification / Model | WSZ-10A WSZ-20A WSZ-50A |
WSZ-100B WSZ-100A WSZ-200A |
WSZ-100BR WSZ-100AR WSZ-200AR |
HZQ-50H HZQ-120H |
|---|---|---|---|---|
| Name | Compact orbital shaker | Orbital shaker | Reciprocating shaker | Heated Orbital Shaker |
| Power Supply | AC220V 50HZ | |||
| Shaking Speed | 40～250 rpm | 40~300 rpm | 40~250rpm | 40~250 rpm |
| Shaking Amplitude | 10mm/20mm/10mm | 20mm | 20mm (reciprocating) | 20mm |
| Controller | LCD controller | |||
| Temperature Control Range | — | — | RT+5～100℃ | |
| Temperature Resolution | — | 0.1℃ | ||
| Input Power | 25W | 60W | 350W/400W | |
| Tray Dimensions W×D(mm) | 280×270 280×270 350×260 |
350×350 400×340 450×450 |
350×260 400×340 |
|
| External Dimensions W×D×H(mm) | 300×375×185 300×375×185 370×375×185 |
420×495×230 420×495×230 490×605×230 |
420×495×230 420×495×230 490×605×230 |
– |
| Timer Range | 0～5999min | |||
| Standard Configuration | Universal spring clamp | |||
Note: 1. Optional fittings for WSZ-10A/20A/100B/200A include universal clamps, spring racks for cell culture bottles/dishes, flat trays with rubber mats, flask clamps, test tube racks and adhesive mats.
Optional Accessories
Optional accessories add 7 days to the delivery lead time
- Multi-step programmable controller
- RS485 interface and communication software

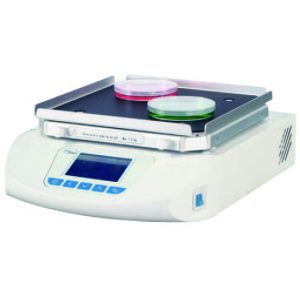

Compact shaker WSZ-10A
Compact orbital shaker WSZ-20A
Heated orbital shaker HZQ-50H/HZQ-120H
Orbital shaker WSZ-50A/WSZ-100A/WSZ-200A
