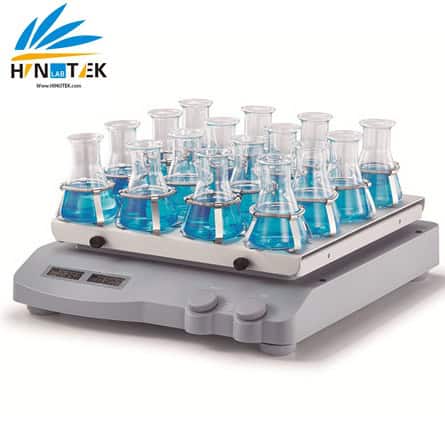

SK-O330-Pro / SK-O180-Pro LCD Digital Orbital Shaker

Antigravity / Hinotek SK-O330-Pro and SK-O180-Pro LCD digital orbital shakers provide smooth and powerful orbital mixing for culture dishes, flasks, and beakers. Ideal for aeration, extraction, cell culture, and bacterial suspension in environmental chambers and CO2 incubators.

Orbital Shaking Motion | Up to 7.5 kg Capacity | Brushless DC Motor | RS232 Interface

Key Features

High Load Capacity: Supports maximum load capacities of 7.5 kg (SK-O330-Pro) and 2.5 kg (SK-O180-Pro) with platform.
Dual LCD Displays: Independent LCD screens simultaneously display speed and time for effortless monitoring and precise control.
Maintenance-Free Motor: Driven by an advanced brushless DC motor ensuring quiet operation, high reliability, and extended service life.
Broad Speed Range: Smooth speed adjustment from 100 to 500 rpm (SK-O330-Pro) and 100 to 800 rpm (SK-O180-Pro).
Safety & Protection: Equipped with over-speed detection and protection to prevent spillage and safeguard samples.
PC Control & Data Logging: Integrated RS232 interface allows remote PC control and operational data documentation.
Versatile Platform Options: Compatible with a wide variety of interchangeable platforms, universal attachments, and flask fixing clips.

Applications

Engineered for mixing in culture dishes, flasks, and beakers across molecular biology, microbiology, chemistry, and clinical diagnostics. Suitable for aeration, extraction applications, and operation inside environmental chambers and CO2 incubators.

Technical Specifications

Specification	SK-O330-Pro	SK-O180-Pro
Orbital Diameter	10 mm	4 mm
Max. Load Capacity (with platform)	7.5 kg	2.5 kg
Motor Type	Brushless DC motor	Brushless DC motor
Motor Input Power	28 W	28 W
Motor Output Power	15 W	15 W
Speed Range	100 – 500 rpm	100 – 800 rpm
Speed Display	LCD	LCD
Timer Display	LCD	LCD
Time Settings Range	1 min – 19 h 59 min	1 min – 19 h 59 min
Voltage, Frequency	100-240 V, 50/60 Hz	100-240 V, 50/60 Hz
Power	30 W	30 W
Weight	13.5 kg	8.1 kg
Permissible Ambient Temperature & Humidity	5 – 40 °C, 80% RH	5 – 40 °C, 80% RH
Dimensions (W × D × H)	370 × 420 × 100 mm	300 × 340 × 100 mm
Protection Class	IP21	IP21
Data Connector	RS232	RS232

Optional Accessories & Platforms

Cat. No.	Description	Compatible Models
18900027	SK330.1 Universal attachment with 4 bars	SK-O330-Pro, SK-L330-Pro, SK-R330-Pro, SK-D3309-Pro
18900025	SK180.1 Universal attachment with 3 bars	SK-O180-Pro, SK-L180-Pro, SK-O180-S, SK-R1807-S
18900038	SK330.3 Lengthways roller attachment	SK-O330-Pro, SK-L330-Pro, SK-R330-Pro, SK-D3309-Pro
18900039	SK180.3 Lengthways roller attachment	SK-O180-Pro, SK-L180-Pro, SK-O180-S, SK-R1807-S
18900040	SK330.4 Two-dish platform	SK-O330-Pro, SK-L330-Pro, SK-R330-Pro, SK-D3309-Pro
18900041	SK330.5 Universal cross platform	SK-O330-Pro, SK-L330-Pro, SK-R330-Pro, SK-D3309-Pro
18900042	SK180.4 Dish platform with non-slip mat	SK-O180-Pro, SK-L180-Pro, SK-O180-S, SK-R1807-S
18900028	SK330.2 Fixing clip attachment (Size: 32 × 32 cm)	SK-O330-Pro, SK-L330-Pro, SK-R330-Pro, SK-D3309-Pro
18900026	SK180.2 Fixing clip attachment (Size: 25 × 24 cm)	SK-O180-Pro, SK-L180-Pro, SK-O180-S, SK-R1807-S
18900029	Fixing clip for flask volume 25 mL	Used with SK330.2 (28 pcs) / SK180.2 (9 pcs)
18900030	Fixing clip for flask volume 50 mL	Used with SK330.2 (16 pcs) / SK180.2 (9 pcs)
18900031	Fixing clip for flask volume 100 mL	Used with SK330.2 (16 pcs) / SK180.2 (9 pcs)
18900032	Fixing clip for flask volume 200/250 mL	Used with SK330.2 (9 pcs) / SK180.2 (4 pcs)
18900033	Fixing clip for flask volume 500 mL	Used with SK330.2 (9 pcs) / SK180.2 (2 pcs)
18900036	Clamping bar for SK330.1 universal attachment	SK330.1 Attachment
18900037	Clamping bar for SK180.1 universal attachment	SK180.1 Attachment
18900280	Connect sticks for double dishes shaker	Multi-tier configurations
