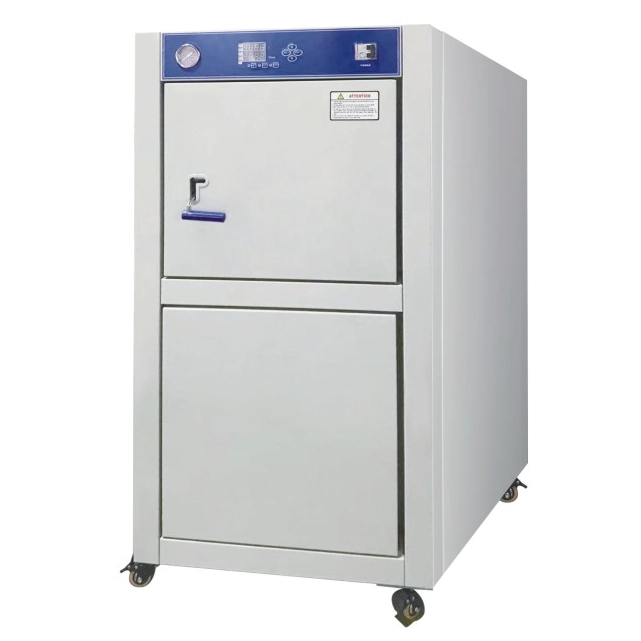

WS-100YDB Horizontal Pressure Steam Sterilizer

WS-100YDB Horizontal Pressure Steam Sterilizer

Use

The product utilizes saturated steam to rapidly and efficiently sterilize articles. It can be used in hospitals, public health centers, health stations, clinics in factories and mines, scientific research institutes, etc., to sterilize medical equipment, surgical dressings, glass utensils, solutions and substrata. It can also be used as cooker in plateau areas and be used to make high quality drinking water in industrial and mining enterprises.

Characteristics

  • For 4~6 minutes rapidly sterilizing.
  • Exhaust the cool air automatically.
  • Digital display of working status, touch type key.
  • Door safety lock system.
  • With 3 fixed cycles of sterilizing program and adjustable for user.
  • With two stainless steel sterilizing plates.
  • The whole process of water adding, temperature rising, sterilizing drying steam discharging controlled automatically.
  • The chamber of the sterilizer is made of stainless steel.
  • Automatically shut off with beep reminding after sterilization.
  • With drying function.
  • Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.
  • The cycle cannot be started if the door is not sealed. Once the cycle is started and running, the sealed door is locked and cannot be opened to ensure operational safety.
  • Safe protection of water lacking.

Technical Data

MODEL
Technical Data
WS-100YDB
Sterilizing chamber volume 100L
Φ 390×670mm
Design pressure 0.3MPa
Design temperature 150°C
Max. working pressure 0.25MPa
Max. working temperature 138°C
Timer range 0~99min
Heat average ≤ ± 1°C
Power 9KW/220V.50Hz
Dimension(mm) 930×690×1330
Exterior package dimension(mm) 1100×720×1420
G.W/N.W 280kg/245kg
Autoclave Chamber Capacity

100 L

Autoclave Control Type

Digital / LED

Autoclave Drying Function

Built-in drying
