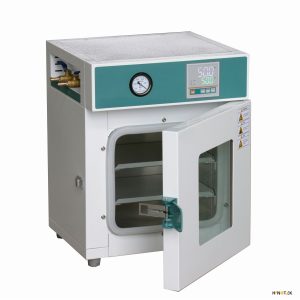

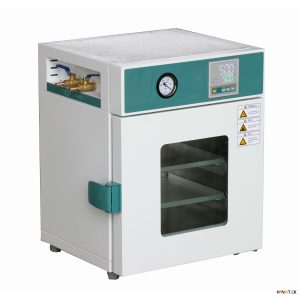

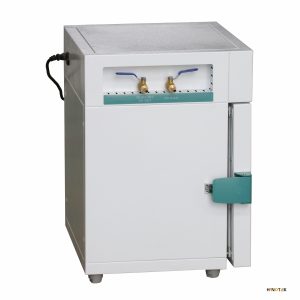

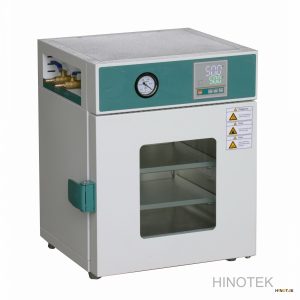

Vacuum Drying Oven
For the design of drying heat sensitive and easy decomposition, easy oxidation material, inert gas into.
Characteristics:
- 4-sides heating method, temperature conduction by shelves, more efficiency.
- With inflatable port, once-forming thermostability silica gel sealant strip, with good tightness.
- Double observation glass window, inner is explosion – proof glass, outside is resin protection plate, more safety.
- Fastening handle, convenient for opening and closing.
Main Technical Parameters:
|
Model
|
DZ-1AII | DZ-2AII | DZ-3AII | |
| DZ-1BCII | DZ-2BCII | DZ-3BCII | ||
| Heating mode | Four walls heat conduction and decompression | |||
|
Function
|
Temp. Range | RT + 10-250°C | ||
| Useful vacuum degree Range | <133Pa | |||
| Temp. Resolution Ratio | 0.1°C | |||
| Temp. motion | ± 1°C | |||
| Heating-up time | 80min | 100min | 120min | |
|
Structure
|
Inner Chamber | BC model: High quality hairline stainless steel sheet; A mode: Anticorrosion treatment of high strength galvanized sheet | ||
| Outer Shell | Cold rolling steel electrostatic spraying exterior | |||
| Insulation layer | Aluminum silicate fiber | |||
| Heater | Stainless steel electric heating tube | |||
| Observation window | Bullet proof glass, acrylic exterior protection | |||
| Vacuum meter | Pointer type, accuracy class 2.5 | |||
| Nozzie diameter | 10mm | |||
| Power rating | 0.8kW | 1.4kW | 2.0kW | |
|
Controller
|
Temp. control mode | Two temperature section PID intelligent | ||
| Temp. setting mode | Touch buttong setting | |||
| Temp. display mode | Measuring temperature: display on the four digital tubes upper row; Setting temperature: display on the lower row | |||
| Timer | 0-9999min (with timing wait function) | |||
| Operation function | Fixed temperature operation, timing function, auto stop | |||
| Additional function | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | |||
| Sensor | pt100 | |||
| Safety device | Over temperature sound-light alarm | |||
|
Specification
|
Inner Chamber size (W*L*H)(mm) | 300*300*270 | 415*370*340 | 450*450*450 |
| Exterior size (W*L*H)(mm) | 480*480*606 | 560*540*680 | 640*590*780 | |
| Packing size (W*L*H)(mm) | 590*550*750 | 704*620*814 | 739*700*889 | |
| Volume | 24L | 52L | 91L | |
| Number of shelf | 2 | |||
| Load per rack | 15kg | |||
| Shelf space | 100mm | 140mm | 185mm | |
| (50/60HZ) Current rating | AC220V/3.6A | AC220V/6.3A | AC220V/9.1A | |
| NW/GW (kg) | 42/52 | 67/92 | 82/105 | |
|
Accessory
|
Shelf | 2 | ||
| Shelf frame | 4 | |||
| Optional accessories | Silica gel connecting pipe, vacuum pump | |||
