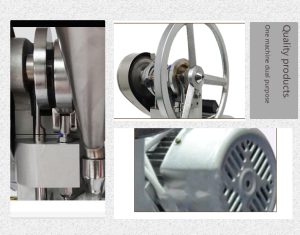

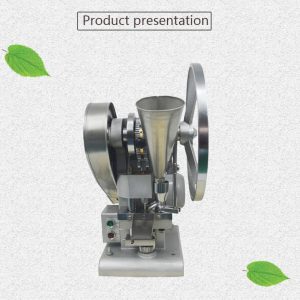

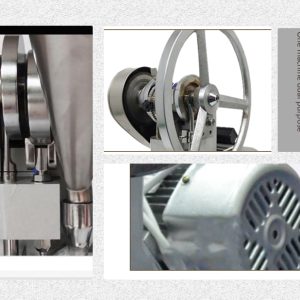

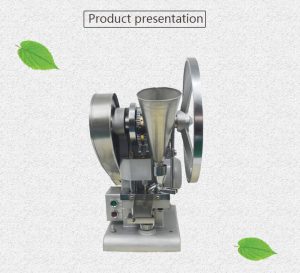

TDP1.5 Single Punch Tablet Press

1. The machine comes with a round circular mold, you can choose one from the size 5, 6, 8, 10, and 12MM diameter.
2.If you don’t want to choose, the standard model with the machine is 6MM size.
3.And also we can customize the mold you need, you can contact us directly to talk about the size and the price of the mold you need. And we have the installing video of the mold.

Model: TDP-1.5
Machine Material: Aluminum Alloy
Maximum Pressure (KN): 15
Maximum Tablet Diameter (mm): 5~12
Tablet Production (Pc/h): 6000
Motor Power (W): 370
Motor Speed (r/min): 1400
Machine Weight (Kg): 58Kg
Dimensions: 700*370*800mm



Download Manual.
