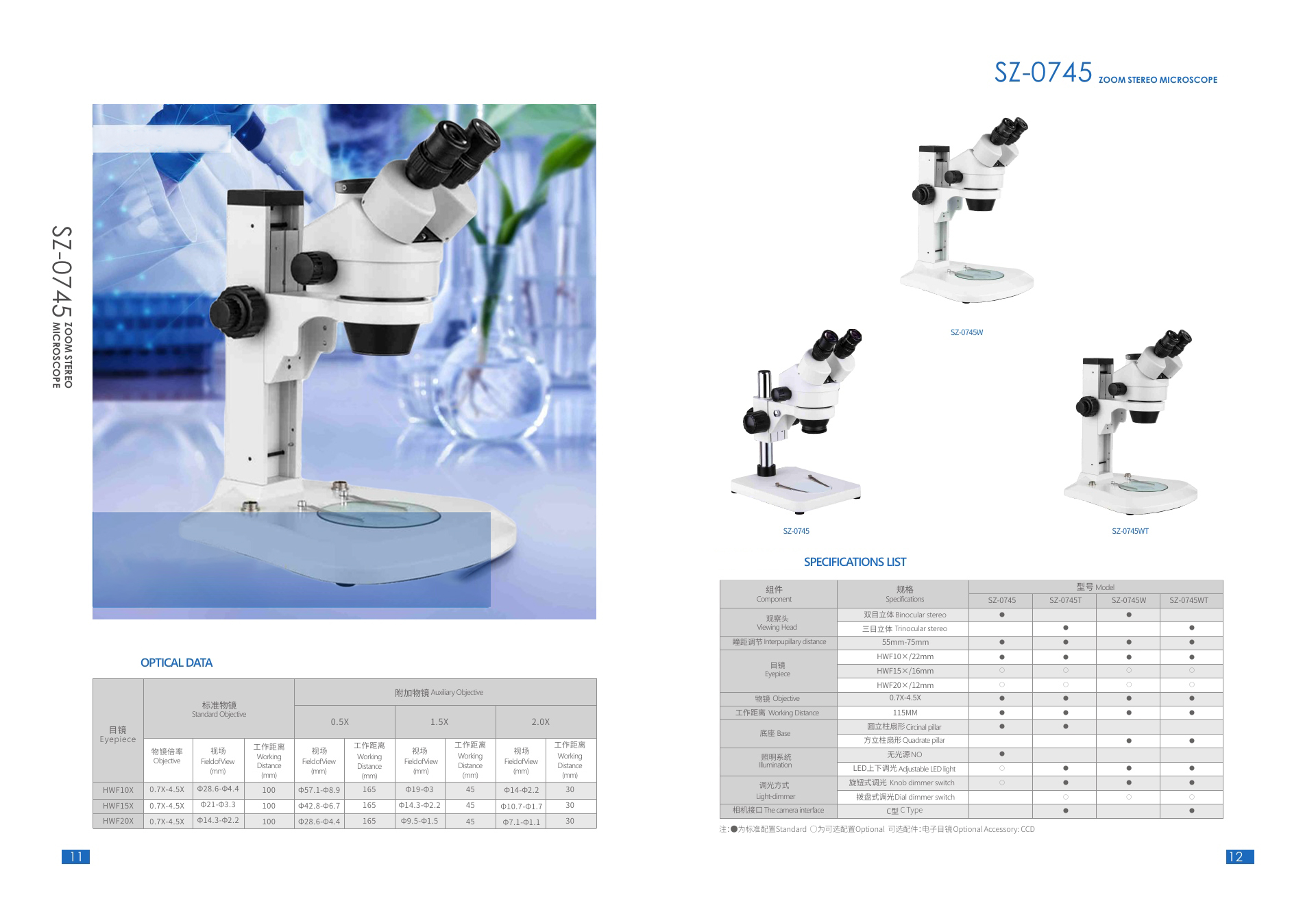

Optical Data
| Eyepiece | Standard Objective | Auxiallary Objective | |||||||
| 0.5X | 1.5X | 2.0X | |||||||
| Objective | Field of View | Working Distance (mm) | Field of View | Working Distance (mm) | Field of View | Working Distance (mm) | Field of View | Working Distance (mm) | |
| HWF10X | 0.7X-4.5X | Φ28.6-Φ4.4 | 100 | Φ57.1-Φ8.9 | 165 | Φ19-Φ3 | 45 | Φ14-Φ2.2 | 30 |
| HWF15X | 0.7X-4.5X | Φ21-Φ3.3 | 100 | Φ42.8-Φ6.7 | 165 | Φ14.3-Φ2.2 | 45 | Φ10.7-Φ1.7 | 30 |
| HWF20X | 0.7X-4.5X | Φ14.3-Φ2.2 | 100 | Φ28.6-Φ4.4 | 165 | Φ9.5-Φ1.5 | 45 | Φ7.7-Φ1.1 | 30 |
Specification List
| Component | Specifications | Model | Model | Model | Model |
| SZ-0745 | SZ-0745T | SZ-0745W | SZ-0745WT | ||
| Viewing Head | Binocular Stereo | * | * | ||
| Trinocular Stereo | * | * | |||
| Interpupillary Distance | 55mm – 75mm | * | * | * | * |
| Eyepiece | HWF10X /22MM | * | * | * | * |
| HWF15X / 16MM | |||||
| HWF20 / 12MM | |||||
| Objective | 0.7X-4.5X | * | * | * | * |
| Working Distance | 115mm | * | * | * | * |
| Base | Circinal Pillar | * | * | ||
| Quadrate Pillar | * | * | |||
| Illumination | NO | * | |||
| Adjustable LED Light | * | * | * | ||
| Light-Dimmer | Knob dimmer switch | * | * | * | |
| Dial dimmer switch | |||||
| Camera Interface | C type | * | * |
