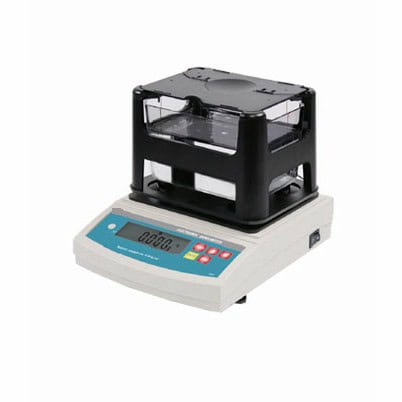

Solid and Liquid Densimeter


It is suitable for the field of quality management, cost

control, new formula researching and material studying, etc.

Any form of solid could be measured.

Measurement of special liquid such as volatile liquid,

corrosivity liquid, strong acid and strong alkali liquid need

optional accessory DE-20B anti corrosive liquid measuring assembly.


* Automatic zero tracking, buzzer warning, and overload warning.

* Function of solution compensation: necessary if liquid other than water is used as a medium for measuring.

* Actual water temperature compensation.

* RS-232C included.

Model BK-DME300S BK-DME600S
Capacity 0.005-~300g 0.005~600g
Density Resolution 0.001 g/cm3
Density Range 0.001~99.999g/cm3
Measuring Time About 5 s
Measuring Principle Archimedes principle
Specific Gravity Measuring Frame Unibody injection forming professional specific gravity measurement frame

Size: 176*105*111mm(L*W*H)

Measuring Tank Unibody injection forming transparent measuring tank

Size: 169*98*83mm(L*W*H)

Standard Accessories Tank, testing board, tweezer, thermometer,100G weight, windshield, a set of particle measuring assembly, a set of floating body measuring assembly, power transformer
Optional Accessories DE-40 printer
Power Supply AC110/220V±10%, 50/60Hz
Package Size(W*D*H)mm 450*200*360
Gross Weight(kg) 4.5
