The RTOP-400Y artificial climate box has a volume of 400L. It adopts a mirror-finished stainless steel liner with four corners and semi-circular arc transitions. The partitions or partitions in the box can be removed without tools, which is convenient for disinfection and cleaning of the studio. It has the function of over-temperature protection and sensorIntroduction of artificial climate box
The artificial climate box is a high-precision hot and cold constant temperature device with illumination and humidification functions that can simulate an artificial environment, providing users with an ideal artificial climate experiment environment. It is suitable for plant growth and tissue culture, seed germination, seedling cultivation, and microbial culture experiments; the breeding of insects and small animals; BOD measurement for water quality monitoring; aging and service life testing of medicinal materials, wood, building materials, etc., and other uses of light , Special test equipment for constant temperature and humidity.

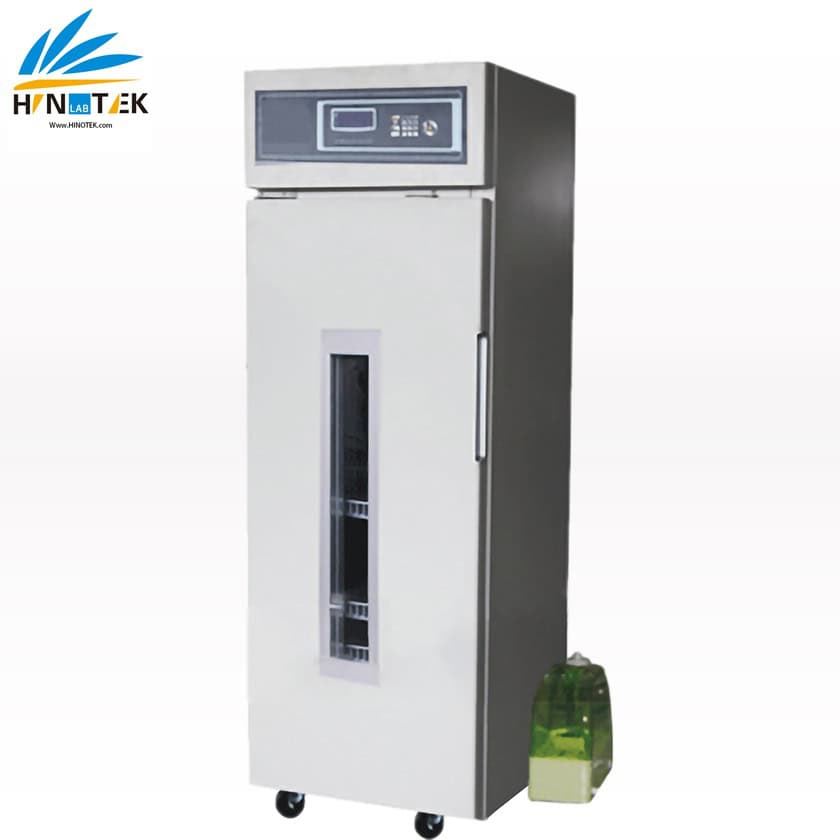

The RTOP-400Y artificial climate box has a volume of 400L. It adopts a mirror-finished stainless steel liner with four corners and semi-circular arc transitions. The partitions or partitions in the box can be removed without tools, which is convenient for disinfection and cleaning of the studio. It has the function of over-temperature protection and sensor abnormality protection, which can ensure the safety of the instrument and the sample; equipped with LED growth light, the illumination is more uniform and the illumination is higher, which is conducive to the growth of plants and improves disease resistance.
Features
1. The intelligent artificial climate box is displayed on a large LCD screen, and the operation process is guided in Chinese. The operation is simple, the control is precise, and the blue backlight is convenient for night viewing.
2. Mirror surface stainless steel liner is adopted, and the four corners are semi-circular arc transition. The partitions or partitions in the box can be removed without tools, which is convenient for disinfection and cleaning of the studio.
3. The program can be set to time, temperature, illuminance and other gradient control. Time period control 99-segment programming, each time period is 1-99 hours, and different segment parameters can be set to meet the different parameters of plant growth.
4. It has the function of over-temperature and sensor abnormality protection to ensure the safety of the instrument and the sample. The LED growth lamp is equipped with more uniform and higher illuminance, which is beneficial to the growth of plants and improves disease resistance.
5. Intuitive display of Beijing time, remaining time of the period, light level, temperature in the box and ambient temperature. The inner tank is equipped with a temperature protection device, and the software and hardware automatically cut off the power when the temperature is higher than the inner tank protection temperature to protect the test sample.
6. With sterilization function, set the sterilization time, the sterilization function will be automatically closed when the sterilization time is over.
7. It has the functions of power-down memory and power-down time automatic compensation, and the original working state can be continued after the power is turned on again.
8. The artificial climate box light source adopts LED light source suitable for plant growth, with the advantages of low energy consumption and low heat, and the illuminance is adjustable in 3 levels.
9. A network port can be installed, and the network type can view the current working conditions of the cabinet and historical temperature and humidity operating data in real time on the WeChat and PC terminals, and the PC terminal can export historical data. (Optional)
Features of networked artificial climate box:
1. Intelligent networking terminal, which can upload monitoring data in real time.
2. Support the coexistence of mobile terminal and web terminal to facilitate data viewing, analysis and management.
3. Real-time monitoring of equipment operation, abnormal alarm information can be pushed to the mobile terminal of the mobile phone in time.
Management cloud platform function (networked artificial climate box):
1. The self-contained instrument cloud management platform includes a C/S architecture, which can summarize and analyze all online device data, and data backup is not lost. The viewing operation methods include web and mobile terminals (available for Android/Apple systems).
2. Data can be uploaded to the management cloud platform. Data in the platform can be downloaded, analyzed and printed
3. The platform supports device data storage and provides sufficient capacity for long-term storage
4. The platform provides report forms such as curves and tables for equipment data, and the data can be exported and imported.
5. The platform can combine data for report making, report printing, and report export functions.
6. The software can be upgraded online.
Technical parameters of artificial climate box
Temperature control range | 0~50℃(without light), 10~50℃(with light) |
Temperature fluctuation | ±0.5℃ |
Temperature uniformity | ±1℃ |
Humidity control range | 50%~90%RH |
Humidity fluctuation | ±7%RH |
Programmable number of segments for temperature | humidity, and light: LCD 1~99 time periods fully automatic |
Illumination level | 0~10 level |
Illumination: | 0~8000LUX (conventional) (about 300mol m-2s-1), higher illuminance can be customized;
(Type 1:0~12000LUX) (Type 2:0~22000LUX) |
Life: 100,000 hours at room temperature | Note: All incubators of our company can increase the light intensity according to user requirements |
Optional networking mode | the standard version uses RJ45 networking. If the network cable is inconvenient, you can purchase a WIFI module for networking.
|
Four, artificial climate box model list
Main model | Volume | Dimensions (mm) | Time period control method | Temperature control
Scope |
temperature
Volatility |
Humidity control
Scope |
temperature
Evenness |
Light intensity
(LUX) |
RTOP-268Y | 268L | 666*630*1755 | LCD 1-99 time period fully automatic | 0~50℃ | ±0.5℃ | 50%~90%RH | ±1℃ | 0-8000LUX (optional lighting, for example: 3000LUX for seed germination, 5500LUX or more for seedling growth. All incubators of our company can increase the light intensity according to user requirements) |
RTOP-310Y | 310L | 666*630*1895 | ||||||
RTOP-400Y | 400L | 744*658*1760 | ||||||
RTOP-500Y | 500L | 825*705*2030 | ||||||
RTOP-1000Y | 1000L | 1370*660*1990 |
