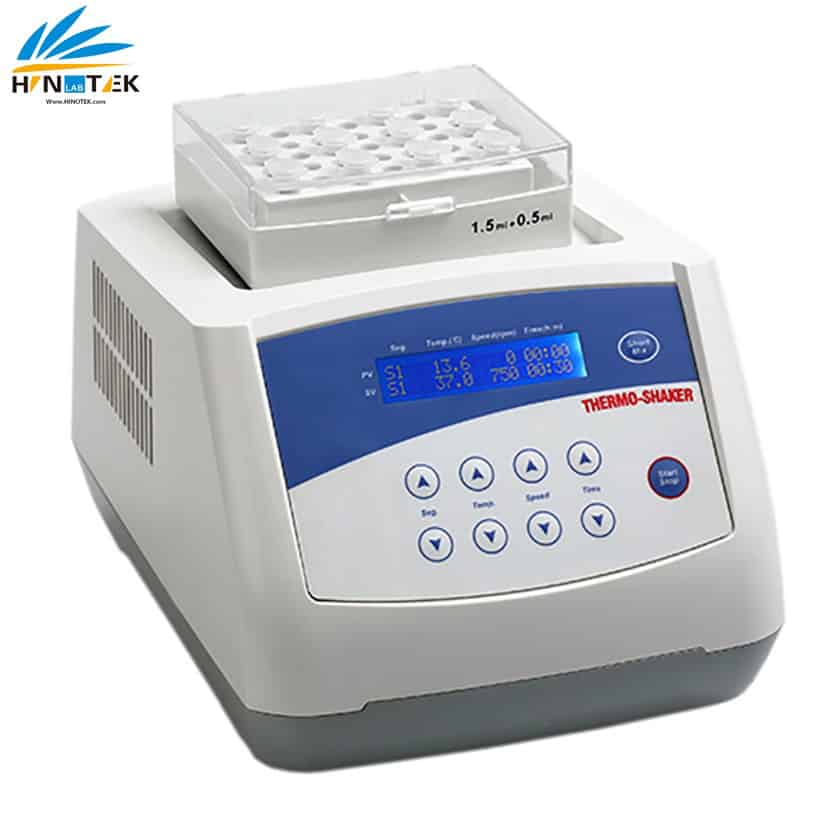

MSC-100 Dry Bath

Product Information

Designed for simultaneous heating and cooling and mixing of small samples, the MSC-100 are supplied with interchangeable blocks for microtubes. Mixing and heating and cooling modes can be used both simultaneously and independently, i.e. the device can work as a shaker and as a thermostat. The main body of the Mixing Block can be used with different kinds of blocks.

Features
1. LCD display. It is easy to setup and use.
2. Accurately control and display time, temperature and speed
3. Over heating protection device ensures safety & reliability
4. Temperature can be calibrated to meet user’s needs.
5. Low noise working even under the speed of 1,500rpm
6. Conforms to CE safety standard
7. Custom blocks are available to satisfy experimental requirement
8. Gentle, reliable mixing with long-life brushless motor

Specification
1. Temperature Setting Range: 0℃~100℃
2. Temperature Control Range: 0℃~100℃
3. Timing Range: 1 min~99h59min
4. Mixing Speed: 200rpm-1500rpm
5. Mixing Orbit: 2mm
6. Temperature Control Accuracy: <± 0.5 ℃
7. Display Accuracy: 0.1 ℃
8. Heating Time: ≤20min (from 20 ℃ to 100 ℃)
9. Cooling time: ≤25min(from ambient to ambient – 20 ℃)
≤15min(from 100 ℃ to 20 ℃)
10. Cooling depth:
1) The block temperature can be descended to 0℃ if the ambient temperature is 20℃
2) The block temperature can be descended to 4℃ if the ambient temperature is 25℃
3) The block temperature can be descended to 10℃ if the ambient temperature is 30℃
11. Cooling and Heating Parts: TE Module
12. Supply Power: AC220V 50/60Hz or AC120V 50/60Hz
13. Dimension ( LxWxH) mm: 300x220x175
14. Net Weight: 8.5 kg

Block for MSC-100

Type

Description

Max. Temperature

Max. speed

Remark

A

96×0.2ml

100

1500



B

54×0.5ml

100

1500



C

35×1.5ml

100

1500



D

35×2.0ml

100

1500



E

15×0.5ml+20×1.5ml

100

1500



F

24×Diameter ≤ φ12mm tubes

100

1200



G

12×15ml Falcon tube

100

750



H

6×50 ml Falcon tube

100

750



I

103x67x30mm (Bath Block)

100

1500



J

96 x 0.2 ml Microplate

100

1500



K

24×5ml  tube

100

1200



L

96-Deep well plate

80

900



e
