MPC-P25

Centrifuge

SKU: mpc-p25 Category: Tag:

Description

1. The MPC-P25 Mini-Plate Centrifuge is the first one adopted a unique design for the horizontal rotor centrifuge (Patented) in the world.

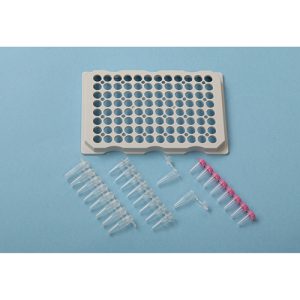

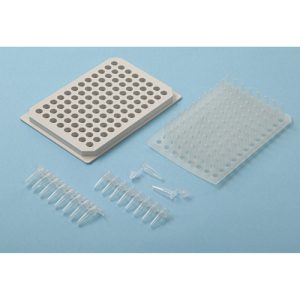

2. It can accept below formats:
– PCR standard plates with skirted, non-skirted
– Elisa Plates
– 8×0.2ml PCR strip tubes
– 0.2ml PCR tubes

MPC-P25 Mini-Plate Centrifuge is the first one adopted a unique design for the horizontal rotor centrifuge (Patented) in the world. The plate or tubes set into the rotor with 2pcs slope-rotor-shelf. It can quickly spin down droplets and condensation and is for use before and after thermal cycling to improve PCR yield
and other tests.

MPC-P25 combines functionality, easy operation, and comfort – a lot of “high” qualities to come standard in one compact micro-centrifuge.

Functional diagram

Before working                                                 working

Code                       Description
AS-08090-00          MPC-P25  AC240V or AC120V, 50/60 Hz, 1A

Feature:
1. Unique design for the horizontal rotor centrifuge (Patented)
2. Short-spin and timing of two operations make the tests more convenient
3. Braking time from max.speed: less than 30sec
4. Timer can be set up to 10 minutes
5. Streamline design with more compact shape and transparent PC lid
6. It can accept below formats:
—PCR standard plates with skirted, non-skirted
—Elisa Plates
—8×0.2ml PCR strip tubes
—0.2ml PCR tubes

Specification:

Model MPC-P25
 Capacity
 2pcs PCR plates with skirt or without skirt / Elisa plates
 8×0.2ml PCR strip tubes / 0.2ml PCR tubes
 Maximum Speed 2,200rpm
 Maximum RCF 480 x g
 Dimensions 290 x 360 x 140mm (W x D x H)
 Weight 3.6kg
 Power AC220V or AC120V, 50/60Hz

Accessories:

Code Description
 AS-08091-01 Adaptor for PCR plates with skirt and without skirt
 AS-08091-02 Adaptor for 8×0.2ml strip or 0.2ml PCR tubes
