Mini-SC/Mini-SCN Sample Concentration

1. Mini-SC and Mini-SCN are controlled by a micro processor, a gas source and a heating device. They can transfer
the air to the sample rapidly, continually and controllable, make sample concentration very quickly.
2. The machine is DC input, compact, easy to carry and detach, suitable for moving detection station, moving
detection vehicle.
3. A Mini-Air pump open and flow adjustment
Open ,close the air pump  with flow adjustment knob. Switch the knob anticlockwise to close the pump, switch
clockwise to open the pump  and can adjust the flow.

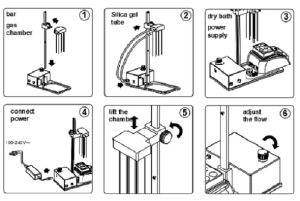

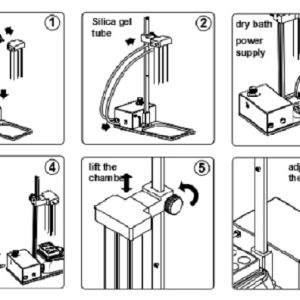

4. To easy install and use the instrument

Features

1. Mini-SC and Mini-SCN are the smallest sample concentration all of the world.
2. The Mini-SC and Mini-SCN are based our Mini T dry bath incubator and an air pump with very small dimensions
3. The machine is DC input, compact, easy to carry and detach, suitable for moving detection station, moving detection vehicle.
4. The air pump can be adjusted the follow.
5. To easy install and use the instrument

Technical Data

 Model  Mini-SC  Mini-SCN
 Sample Quantity  6pcs  6pcs
 Max. Lift Height  180mm  180mm
 Air Pump Flow  Max. 5L/min  Max. 5L/min
 Air Pump Pressure  Max. 0.015Mpa  Max. 0.015Mpa
 Input Voltage  DC12V  DC12V
 Max Power  40W  40W
 Average Power consumption  10W  10W
 Temperature Control Range  RT+5°C~80°C  RT+5°C~80°C
 Time Setting Range  1min~999min or 1sec~999sec  1min~999min or 1sec~999sec
 Temperature Accuracy  ±0.5°C  ±0.5°C
 Display Accuracy  0.1°C  0.1°C
 Heating Time (from 20°C to 80°C)  <=12min  <=12min
 Dimensions (W x D x H)  134mm x 266mm x 415mm  134mm x 266mm x 415mm
 Net Weight  3kg  3kg
