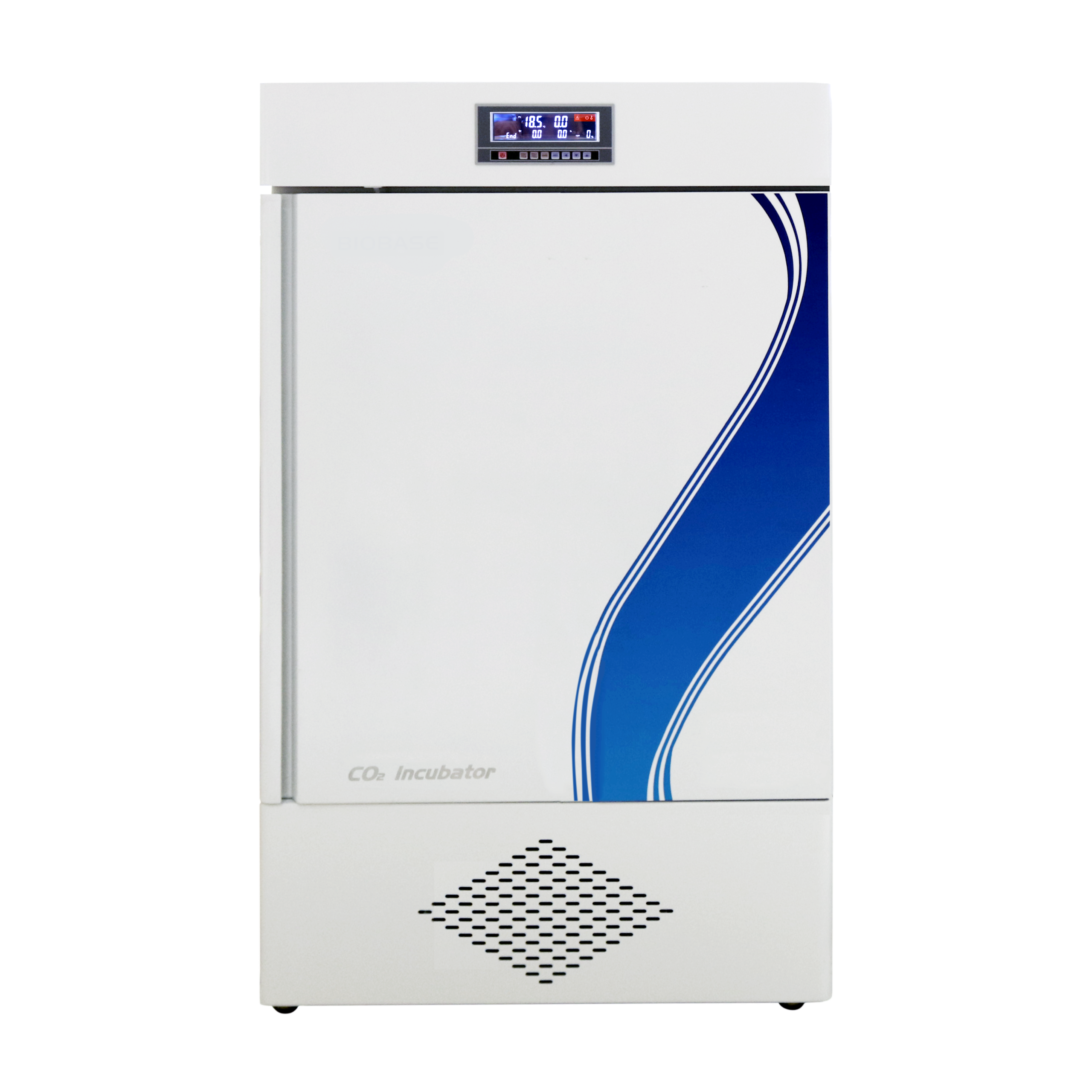

Low Temperature CO2 Incubator


*  Air jacket:  equipped with cooling and heating function.

*  LED display screen, timing segment control procedure.

*  High quality infrared sensor for accurate CO2 concentration.

*  Three Liters water reservoir in the bottom chamber ensures high humidity.

*  The working chamber adopts round angle structure , easy to clean.

*  High quality CO2 gas filter ensures the inside gad quality.

*  SMC brand gas circuit valves ensure more stable CO2 concentration and less consumption of CO2 gas.

*  Push-pull shelves with holes ensures better temperature uniformity.

*  Microcomputer controller,LED displays temperature,CO2 concentration ,run-time and timing.

Model BJPX-C160III
Capacity 160L
Heating Air jacket
Temp. Range 10~60 ℃
Control Type Microcomputer controller
Temp. Fluctuation ≤ ±0.2℃(at 37℃)
Temp. Uniformity ≤ ±0.3 ℃(at 37℃)
Time Setting 999h or continuous
Refrigerant R134a(CFC-free, eco-friendly)
Alarm Audible and visual alarm; Over-temperature alarm; CO2 Concentration alarm.
Shelves 2 pcs/adjustable
Material External cold-rolled steel with painting; internal stainless steel
Door With inner door and external door
CO2 Range Infrared sensor,range 0~20%
CO2 Control Resolution 0.1%
Humidification Type Waterreservoir in the bottom chamber ensures high humidity

(90%≤relative humidity≤99%)

Sterilization Type UV lamp sterilization
Ambient Temp. & Humidity 18~30℃,suggest 25±2℃; relative humidity ≤80%
Caster Footmaster caster
Consumption Cooling300W; heating 900W
Power Supply AC110/220V±10%, 50/60Hz
Internal Size(W*D*H)mm 588*470*620
External Size(W*D*H)mm 810*748*1320
Packing Size(W*D*H)mm 900*838*1560
Gross Weight(kg) 198
