Description

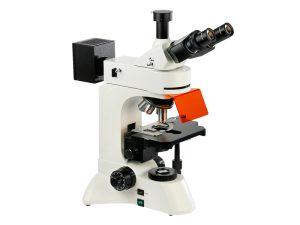

L3201 LED Epi-fluorescent microscope is used for fluorescence microscopy and transmitted field observation. It is equipped with no magnification spherochromatic aberration infinity plan achromatic fluorescent objectives and wide field eyepieces, has clear picture and wide view field. The transmitted and epi-fluorescent illumination light source are high power & brightness LED, but power consumption is lower and use life longer, very good radiating heat effect. Safely and comfortably using the instrument, the cost of use and maintenance are more lower. It is the ideal instrument in biology, cytology, oncology, genetics, immunology etc. It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.
![](https://www.hinotek.com/wp-content/uploads-by-customer/picture-upwork/1384564356.jpg")
Specification
-

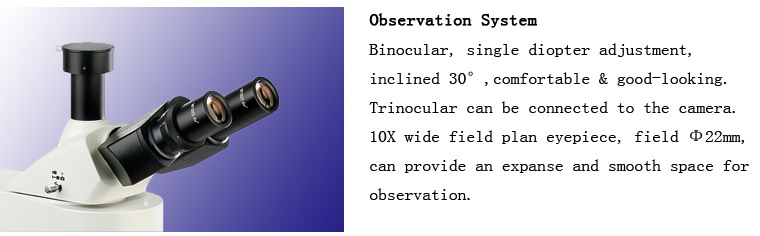

Standard ConfigurationModelL3201 LEDEyepieceWide field WF10X(Ф22mm)ObjectiveInfinity plan achromatic objectivesPL 4X/0.10 (Work distance)：19.8 mmPL 10X/0.25 (Work distance)：5.0 mmPLF L40X/0.85£¨spring£© (Work distance)：0.42 mm (No magnification spherochromatic aberration )PL 100X/1.25(Spring, oil) (Work distance)：0.36mmEyepieces tubeTrinocular, Inclination of 30˚.Epi-fluorescent illumination system3W high brightness LED. Enable selecting monochromatic or bichromatic LED for light source, every monochromatic LED wave band: Green (475nm~550nm) Blue( 410nm~490nm)Fluorescence filters: B(Blue) and G(Green).Focus systemCoaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm.NosepieceQuadruple(Backward ball bearing inner locating)StageDouble layer mechanical (Size:210mmX140mm,movingrange:75mmX50mm)Transmitted illuminationsystemAbbe condenser NA.1.25 Rack & pinion adjustableBlue filter and Ground glassCollector for LED illumination and integrated field diaphragm3W high brightness white LED, brightness adjustable.
