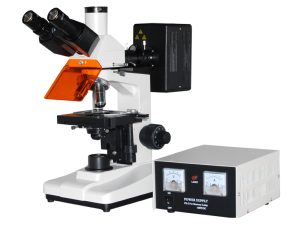

L1501 Reflected Fluorescence Microscope

Description

  • L1501 Reflected fluorescence microscope model is used for fluorescence microscopy and transmitted bright field microscopy observation. It is the ideal instrument in sediment in sedimentary rock, inspection of impurity of semiconductor, environmental protection and microchemistry etc. It is the ideal instrument in biology, cytology, oncology, genetics, immunology etc. It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.Features
    ▲  With wide field eyepieces and achromatic objectives, the field of view is widely and clear
    ▲  Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
    ▲  6Volt 20Watt Halogen lamp with brightness control

Specification

  • Standard Configuration
    Model L1501
    Eyepiece Wide field WF10X(¦µ18mm)
    Objective Achromatic 4X/0.10
    Achromatic 10X/0.25
    Achromatic 100X/1.25(Spring, oil)
    Fluorescence 25X/0.65
    Eyepiece tube Trinocular  (inclination of 30˚)
    Focus system Coaxial coarse/fine focus, with tension adjustable and up stop, minimum division of fine focusing: 2μm.
    Nosepiece Quadruple(Backward ball bearing inner locating)
    Stage Double layer mechanical (Size:135mmX125mm, Move range: 75mmX35mm)
    Abbe condenser N.A.1.25 Rack & pinion adjustable
    Filter Blue filter
    Frosted filter
    Collector For halogen lamp
    Light source 6V 20W Halogen lamp with brightness control.


    Reflected fluorescence system

    Mercury lamp house 100W/DC
    Power supply unit:AV:110V or 220V
    Fluorescence filter system  B exciton wavelength:450~490nm
    Fluorescence filter system  G exciton wavelength:495~555nm
