Description

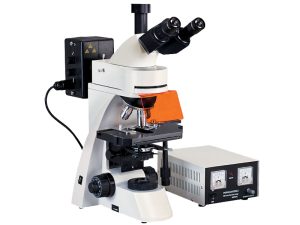

L3001 Epifluorescent microscope is used for fluorescence microscopy and transmitted field observation. It is equipped with infinity plan
achromatic objectives and wide field eyepieces, have clear picture and wide view field. It is the ideal instrument in biology, cytology, oncology,
genetics, immunology etc. It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.
Features
▲ With wide field eyepieces and infinity plan achromatic objectives, the field of view is widely and clear
▲ Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
▲ 20W 6V halogen lamp with electronic dimmer
Specification
-
ModelL3001EyepieceWide field WF10X(¦µ20mm)ObjectiveInfinity plan achromatic Objectives PL 4X/0.10Infinity plan achromatic Objectives PL 10X/0.25Infinity plan achromatic Objectives PL 40X/0.65(Spring)Infinity plan achromatic Objectives PL 100X/1.25(Spring, oil)Eyepiece tubeTrinocular (Inclination of 30˚)Focus systemCoaxial coarse/fine focus, with tensional adjustable and up stop minimum division of fine focusing: 2μm.NosepieceQuadruple(Backward ball bearing inner locating)StageDouble layer mechanical (Size:210mmX140mm, Move range: 75mmX50mm)Abbe condenserN.A.1.25 Rack & pinion adjustableFilterBlue filterFrosted filterCollectorFor halogen lampLight source6V 20W Halogen lamp ,adjustable brightnessReflected fluorescence systemMercury lamp house 100W/DCPower supply unit:AV:110V or 220VFluorescence filter system B exciton wavelength:450~490nmFluorescence filter system G exciton wavelength:495~555nmFluorescence filter system UV exciton wavelength:320~380nmFluorescence filter system V exciton wavelength:380~415nm
