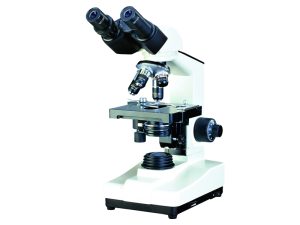

L135 Biological Microscope

SKU: l135-series Category: Tags: ,

Description

  • L135 series biological microscopes are equipped with achromatic objectives and wide field eyepieces. They have a clear image and wide view field through the optical system. They can be broadly applied in biology medicine, agriculture, industry etc. They are the ideal instrument for medical treatment, teaching, and scientific research.Features
    ▲  With wide field eyepieces and achromatic objectives, the field of view is widely and clear
    ▲  L135A、L135C: Coaxial coarse/fine focus system with up stop; Minimum division of fine focusing: 4μm. L135B、L135D: Coaxial coarse/fine focus system, with tensional adjustable and up stop. Minimum division of fine focusing: 4μm
    ▲  12 Volt 20 Watt Halogen lamp with brightness control

Specification

  • Standard Configuration
    Model L135A L135B L135C L135D
    Eyepiece Wide field WF10X(Φ18mm)
    Objective Achromatic 4X/0.10
    Achromatic 10X/0.25
    Achromatic 40X/0.65(Spring)
    Achromatic 100X/1.25(Spring, oil)
    Eyepiece tube Binocular(Inclination of 30˚)
    Focus system Coaxial coarse/fine focus system with up stop, Minimum division of fine focusing: 4μm  Coaxial coarse/fine focus system, with tensional adjustable and up stop, Minimum division of fine focusing: 4μm Coaxial coarse/fine focus system with up stop, Minimum division of fine focusing: 4μm Coaxial coarse/fine focus system, with tensional adjustable and up stop. Minimum division of fine focusing: 4μm
    Nosepiece Quadruple

    (Frontward ball bearing outer locating)

    Quadruple

    (Backward inner locating on ball bearing)

    Stage Double layer mechanical (Size:125mmX115mm, Move range: 70mmX30mm)
    Abbe Condenser N.A.1.25  Rack & pinion adjustable
    Filter Blue filter
    Frosted filter
    Collector For halogen lamp
    Light source 12Volt 20 Watt Halogen lamp with brightness control
