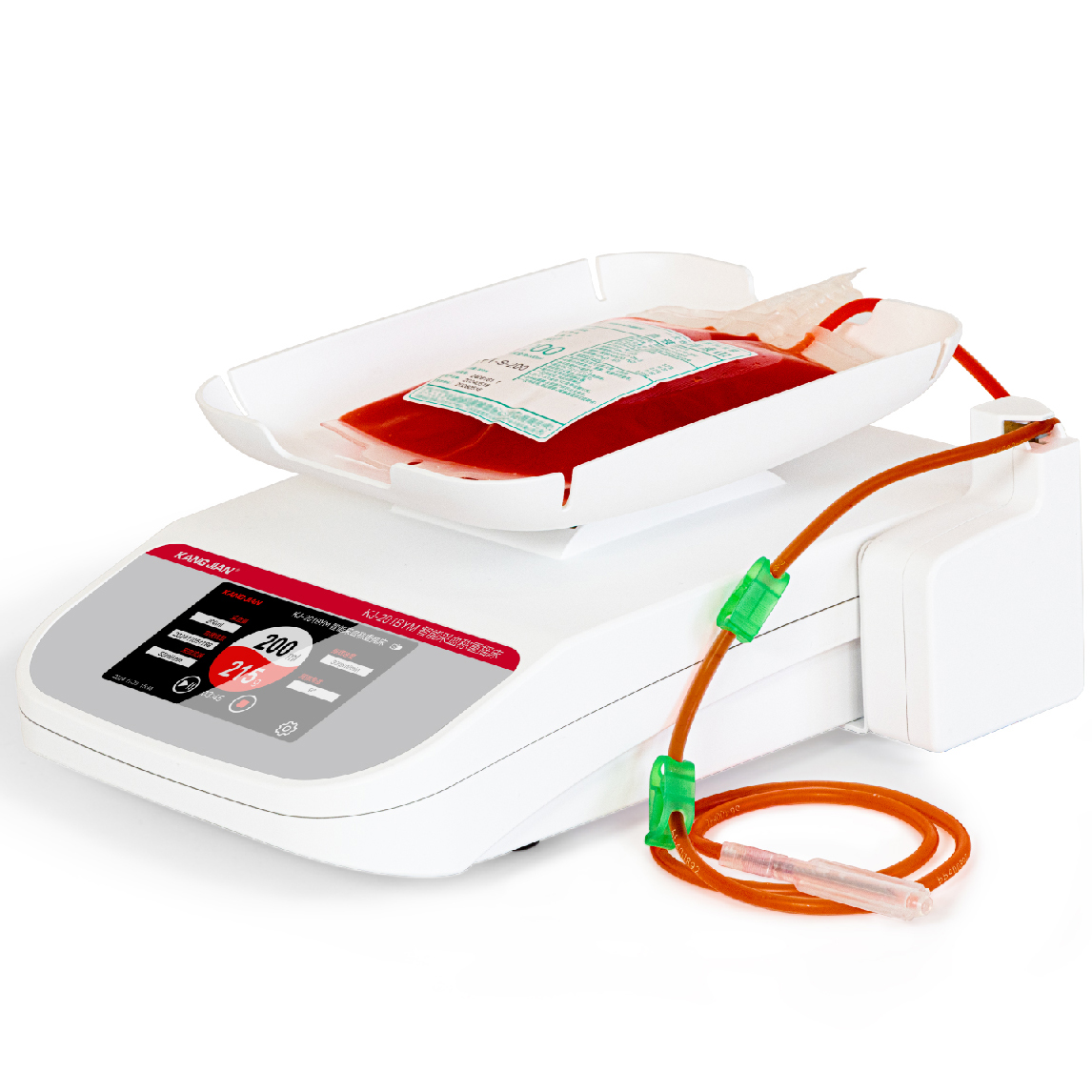

KJ-201BYM Intelligent Blood Collection Weighing Rocker
Features
- Designed for blood stations and mobile blood collection vehicles, prevents blood coagulation during collection.
- Suitable for hospitals and blood centers at all levels.
- 4.3-inch touchscreen for real-time digital monitoring of blood collection processes.
- Customizable blood collection volume (max. 1000ml).
- Flow rate monitoring with automatic alerts for abnormal flow.
- Auto-leveling tray.
- Audible/visual alarm upon completion.
- Optional automatic blocker to terminate collection post-procedure.
- Magnetic adsorption tray for easy installation, removal, and cleaning.
- High-capacity lithium battery (12,000mAh) supports >8 hours of continuous operation.
- Barcode scanner compatibility for seamless blood bag data entry.
- Data logging: Records collection time, volume, and flow rate (up to 1000 entries).
- Exportable data in .txt format for streamlined information management.
Spec:
| Specification | Value |
|---|---|
| Blood Collection Range | 10ml – 1000ml |
| Flow Rate Setting | 0-100ml/min |
| Resolution | 1ml/1g |
| Volume Error | -5ml |
| Liquid Specific Gravity | 1.05g/ml |
| Rocking Angle | 5°-15° |
| Racking Speed | 10-40rpm |
| Input Power | 25W (with blocker) |
| Input Voltage | DC 24V |
| Blocker Compatibility | 03-06mm tubing (wall thickness: 0.5mm) |
| Blocker Thrust | >15N |
| Humidity Tolerance | 80% RH |
| Protection Rating | IP43 |
| Operating Temperature | 5°C-50°C |
| Dimensions | 300 x 190 x 120mm (blocker excluded) |
| Net Weight | 1.7kg (includes battery, blocker: 0.18kg) |
| Battery Capacity | 12,000mAh |
| Alert Functions | Flow anomaly alarm, timeout alert, completion alarm, auto-blocker activation [cite: 7] |
