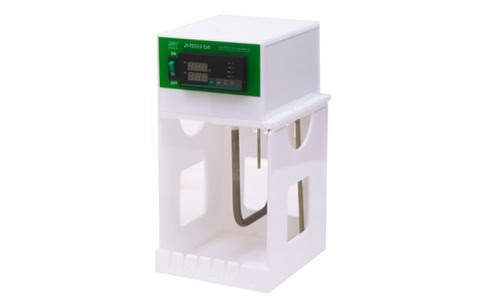

JY-TD331A Denaturing Gradient Gel Electrophoresis Unit (DGGE)

Technical specifications

Glass plate size ( W×L ):  200×200 mm

Gel Size ( W×L ): 162×175 mm

Gel thickness:  1.0 ( mm )

Gel amount: 1 ~ 2 ( pieces )

Sample volume:   ( 1.0mm ) 1 、 2 、 15 、 21 、 35wells

Buffer Volume:   ~ 10 ( L )

Dimension ( L×W×H ):    458×230×285 ( mm )

Net weight: 23 ( kg )



Characteristic feature

• With the gel making device of normal position, , shouldn’t to moving the glass plate from the process of making the gel to electrophoresis.

• With the Gradient gel electric generator, the flow rate can be adjusted.

• Built-in miniature buffer liquid circulating pump, a buffer solution temperature uniformity can be achieved ±5℃.

• Side-open safety lid, easy to load the sample, automatically cut off the electric field when open the lid.

• Type of Output: Constant-Voltage, Current or Power

• Max output: 600V/500mA/300W.

• With over-voltage, overload auto-detection and alarm function.

• Can simultaneously display all set parameters and output status.

• Insulating fire-retardant materials, injection molding using the mold shell, advanced technology.

• Store 10 most common electrophoresis ways.

• Timer Range: 1min~99hr, 59min

• The temperature control probe with a safety sheath, protection of the probe does not damage.

• With the buffer liquid height sensors, , protection of the product does not damage because of the lack of buffer capacity.
