Description

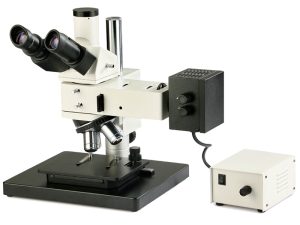

ICM-100/100BD Industry checking and measure microscopes are suitable to observe surfaces structure and geometry of workpiece. It is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, darkfield observation. Lift or down the optical and illumination unit along the leader to adjust the distance from stage to objective, so that enables using for different thickness workpiece. Quickly and effectively locate the observation part of the workpiece by moving the mechanical stage. The motion of the focusing is the roll that the roller bearing moved guiding the trigon slideway so that the moving process is smooth. This is ideal optical instrument for checking and measure in the field of precision part, integrated circuit, packing material etc
Specification
-
Standard Configuration
SpecificationEyepieceWide field WF10X(field number: Φ22mm)Infinity plan achromatic objectiveICM-100Equipped with bright field objectivesPL L5X/0.12 (Work distance)：26.1 mmPL L10X/0.25 (Work distance)：20.2 mmPL L20X/0.40 (Work distance)：8.80 mmPL L50X/0.70 (Work distance)：3.68 mmICM-100BDEquipped with bright & darkfield objectivesPL L5X/0.12 BD (Work distance)：8.05 mmPL L10X/0.25 BD (Work distance)：7.86mmPL L20X/0.40 BD (Work distance)：7.23mmPL L50X/0.70 BD (Work distance)：1.75mmEyepieces tubeTrinocular inclined 30˚, can be shot in 100% light flux.Epi-illumination systemICM-1006V30W halogen and brightness enable controlICM-100BD12V50W halogen and brightness enable controlIntegrated field diaphragm, aperture diaphragm and (Y,B,G, ground glass) switching device. Push-pull type analyzer and polarizer.Focus systemCoaxial coarse/fine focus system, with coarse focus knob tension adjustable device, minimum division of fine focusing: 2μm.NosepieceQuintuple (Backward ball bearing inner locating)Working stageBase overall size：300mmX240mmMechanical stage overall size：185mmX140mm£¬moving range：Transersal:35mm£¬Longitudinal:30mm
