Features
1. Max. rotor capacity: 24×1.5 mL / 2.0 mL Max. speed: 21,400×g (15000 rpm)
2. Safe and reliable, various safety protections conforming CE safety standard
3. Imported motor, maintenance free
4. Soft-brake function to prevent resuspension and protect sensitive samples
5. Automatic lid opening at the end of run – prevents sample warming and allows easy access to samples (iCEN-24)
6. Separate short-spin key for quick centrifugation
7. 3 types of rotors are available, suitable for 1.5, 2.0, 5.0 mL tubes and 0.2, 0.5 PCR strip tubes
8. Key operation, simple parameter settings
9. iCEN-24 gas ventilation and cooling design ensures minimum temperature rise of samples
Spec:
| Model | iCEN-24 | iCEN-24R |
| Speed (rpm) | 500-15000 rpm (increment 100 rpm) | 500-15000 rpm (increment 100 rpm) |
| Max. centrifugation medium density | 1.2 g/mL | 1.2 g/mL |
| Acceleration and deceleration time (soft off) | 15 s | 15 s |
| Acceleration and deceleration time (soft on) |
45 s | 45 s |
| Temp. control accuracy (@ 4 °C) — ±2 °C | ||
| Cooling time to 4 °C | — | ≤20 min |
| Temperature range | — | -10 °C to +40 °C |
| Noise | ≤62 db | <60 db |
| Power | 350 W | 500 W |
| Dimension (L×W×H) mm | 260×410×225 mm | 300×500×320 mm |
| Weight (including rotor) | 14 kg | 28 kg |
| Timer | 1 s-99 min59 s (short-spin) | 1 s-99 min59 s (short-spin) |
| Power supply | AC 100-120 V / AC 200-240 V 50-60 Hz | |

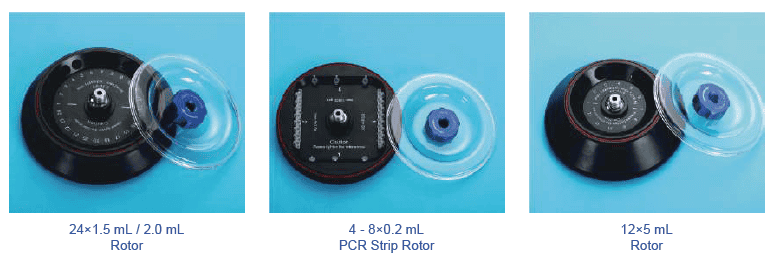

Rotor:
| Max. capacity | 24×1.5 mL/2.0 mL | 4×PCR strip rotor | 12×5 mL (suitable for round- bottom tubes) rotor |
| Max. rotor radius | 85 mm | 68 mm | 85 mm |
| Max. RCF | 100-21400×g | 100-17100×g | 100-21400×g |
 |
| Code Description | |
| AS-08120-00 | iCEN-24 High speed centrifuge, AC 100 V-120 V / 200 V-240 V, 50-60 Hz |
| AS-08130-00 | iCEN-24R High speed refrigerated centrifuge, AC 100 V-120 V / 200 V-240 V, 50-60 Hz |
| AS-08121-01 | 24×1.5 mL / 2.0 mL rotor |
| AS-08121-02 | 4×8×0.2 mL PCR strip rotor |
| AS-08121-03 | 12×5 mL rotor |
| AS-08041-01 | Adapters for 0.5 mL tubes |
| AS-08041-02 | Adapters for 0.2 mL tubes |
To understand the fundamental principles common to all types of Centrifuge be sure to read our main article: What Is A Centrifuge?.
