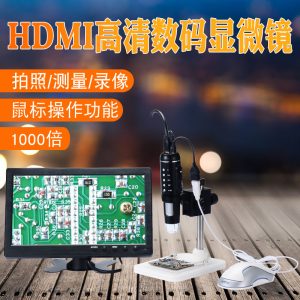

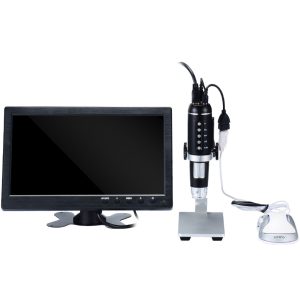

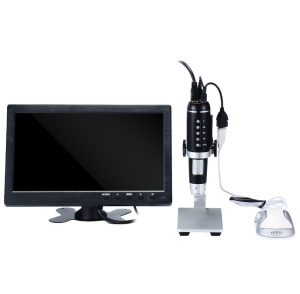

Digital microscope |
project |
parameter |
Image sensor |
1/6″ color CMOS image sensor |
Resolution |
640*480, VGA, QVGA |
Data Format |
MJPG/YUY2 |
Output format |
Dynamic: AVI/YUY2 |
Static: BMP/JPEG |
Focus mode |
Manual |
Pixel size |
640*480 |
Frame rate |
25F/s |
Minimum illumination |
0.1Lux |
White balance |
Auto |
Drive type |
Uvc |
CD |
Embedded Drive Measurement Software User Manual |
light source |
Positive white LED |
Working current |
450mA maximum |
Lens structure |
5G |
System Support |
Win10 Win8 Win7 Vista Win XP LINUX |
power input |
USB-5V |
Signal transmission method |
USB2.0 |
Operating temperature |
-20°C—75°C |
Working humidity |
30%~90% Rh |
Body size |
112MM (long) 33MM (outer diameter) |
Machine weight / color box size |
250g (including color box) / 150MM * 125MM * 45MM |
Packing quantity/weight per case |
50 units / 13.2kg |
Carton size |
640mm*312*245mm |
