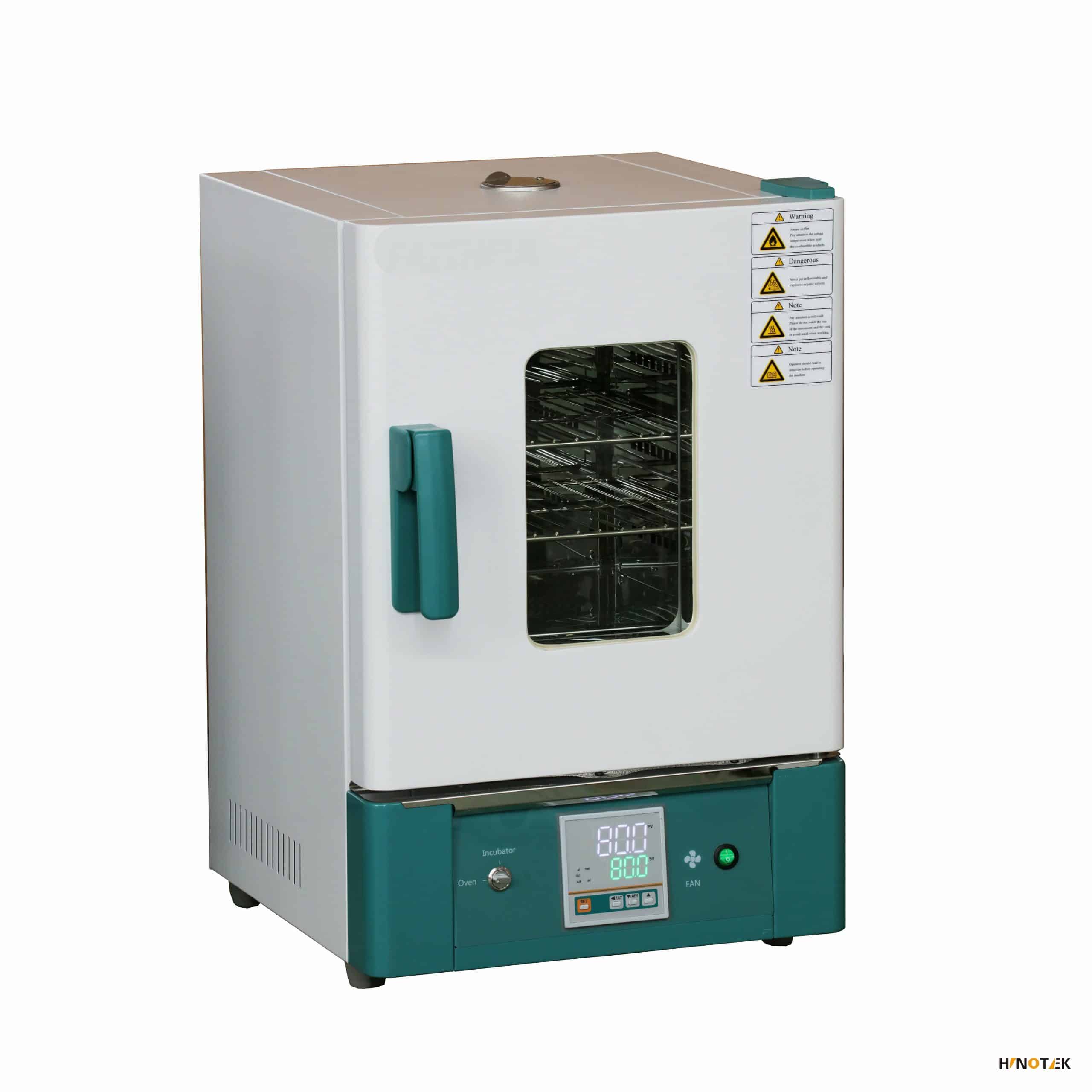

GP-30B Series Drying oven/Incubator (Double function)
Drying, baking, wax, heat treatment and bacterial culture in one chamber.
Characteristics
Horizontal air circularly by double air ducts, high efficiency and high uniformity.
PID controller, with over-temperature protection function.
With oven/Incubator change switch, fan switch; and high temperature blast motor, LED digital display.
New anti-hot handle.
GP-BE series have the following characteristics other than the above functions.
LCD temperature controller.
4 grades speed fan, adjustable for different requirements.
Over-temperature protection system.
High precision digital independent temperature limiter.
Patent No.: ZL201830094606.5
Technical Specifications
| Model | GP-30B | GP-45B | GP-65B | GP-85B | GP-125B | GP-230B | |
|---|---|---|---|---|---|---|---|
| GP-30BE | GP-45BE | GP-65BE | GP-85BE | GP-125BE | GP-230BE | ||
| GP-30BE (304) | GP-45BE (304) | GP-65BE (304) | GP-85BE (304) | GP-125BE (304) | GP-230BE (304) | ||
| Cycle Mode | Forced convection | ||||||
| Function | Temp. Range | Incubator:RT+5-80°C Drying oven:80-300°C | |||||
| Temp. Resolution Ratio | 0.1°C | ||||||
| Temp. Motion | ± 1°C | ||||||
| Temp. Uniformity | ± 2.5% | ||||||
| Structure | Inner Chamber | Mirror Stainless Steel | |||||
| Outer Shell | Cold rolling steel electrostatic spraying exterior: Embossed stainless steel shell | ||||||
| Insulation Layer | High quality rock wool board(with CE) | ||||||
| Heater | Stainless steel heater | ||||||
| Power Rating | 0.8kW | 1.2kW | 1.6kW | 2.0kW | 2.3kW | 3.0kW | |
| Exhaust Hole | Φ 35mm top(with function of test hole) | ||||||
| Controller | Temp. Control Mode | PID Two temperature section intelligent | |||||
| Temp. Setting Mode | Touch button setting | ||||||
| Temp. Display Mode | B model: LED Digital Display | ||||||
| BE model: LCD Digital display | |||||||
| Timer | 0-9999min(with timing wait function) | ||||||
| Operation Function | Fixed temperature operation, timing function, auto stop. | ||||||
| Additional Function | B model: Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | ||||||
| BE model: High precision digital independent temperature limiter.4 grades 3 speed adjustable-speed fan (GP230B/BE without fan speed adjustor), sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | |||||||
| Sensor | PT100 | ||||||
| Safety Device | B type: Over temperature sound-light alarm;BE type: Digital Independent Temp. limiter, Over temperature sound-light alarm. | ||||||
| Specification | Inner Chamber Size(W*L*H)(mm) | 310 × 310 × 310 | 350 × 350 × 350 | 400 × 360 × 450 | 450 × 420 × 450 | 500 × 450 × 550 | 600 × 500 × 750 |
| Exterior Size (W*L*H)(mm) | 460 × 510 × 695 | 500 × 550 × 735 | 550 × 550 × 840 | 590 × 610 × 830 | 636 × 680 × 915 | 735 × 835 × 1115 | |
| Packing Size (W*L*H)(mm) | 540 × 575 × 855 | 580 × 615 × 895 | 635 × 625 × 995 | 680 × 685 × 1000 | 710 × 730 × 1100 | 857 × 885 × 1287 | |
| Volume | 30L | 45L | 65L | 85L | 125L | 230L | |
| Shelf Number | 5 | 6 | 8 | 8 | 11 | 17 | |
| Load Per Rack | 15kg | ||||||
| Shelf Space | 40mm | ||||||
| Current Rating | AC220V/3.6A | AC220V/5.5A | AC220V/7.2A | AC220V/9.0A | AC220V/10.5A | AC220V/13.6A | |
| NW/GW (kg ) | 33/37 | 37/43 | 44/49 | 50/56 | 60/66 | 94/120 | |
| Accessory | Shelf | 2 | |||||
| Shelf Frame | 4 | ||||||
| Optional Accessories | B type: Spare shelf; BE type: Spare shelf, RS485 interface, printer, Program controller, remote control, U-disk storage; wireless SMS alarm, 4.3 inch color touch screen temperature controller. | ||||||
