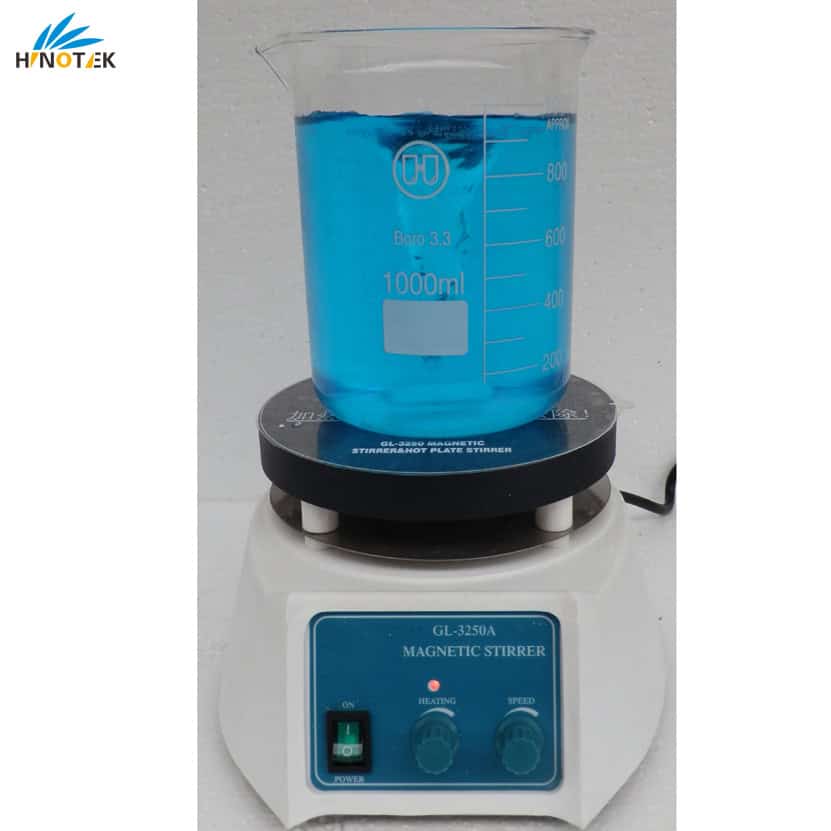

GL-3250 Series magnetic Mixer
Cast off the yoke of traditional mindset of domestic magnetic agitators to promote latest fully molding upgraded products in novel appearance.
Novel Integrated shell: The integral shell is formed with anti-flaming enhanced type plastic, resisting heat, acid, alkali and organic solvents;
Unique heating design: The die-casting aluminum alloy heating plate exteriorly pained with Teflon material is unique in heat conducting effect, high in coldness, heat and corrosion resistance.
Double effects in heat insulating: The double-layer plate at the bottom of heating plate may fully raise heat efficiency and stop heat from conducting to main frame.
Integrally upgrading: The integrally formed shell with top convexity design may effectively prevent carelessly overflowed fluid in agitating operation from flowing into inside the main frame;
Visualized temperature indication: The unique digital circuit design may accurately select and control heating plate temperature or directly control the temperature of solutions in container by the sensor.
Specification:
|
Model
|
GL-3250A
|
GL-3250B
|
GL-3250C
|
| Speed |
100~1200 RPM
|
100~1200 RPM
|
100~1200 RPM
|
| Maxim agitation Capacity |
10L
|
10L
|
5L
|
| Temperature |
RT~300C
|
RT~190C
|
No
|
| Protection Temp |
350oC
|
220oC
|
220oC
|
| Temp. control mode |
Analogic
|
Digital
|
No
|
| Precision of Temp.Control |
No |
±2oC
|
NO |
| External PT-100 Sensor |
No
|
Yes
|
No
|
| Forward-backward rotation |
No
|
Yes
|
No
|
| Diameter of heating plate |
150mm
|
150mm
|
|
| Maxim Heating function |
350W
|
350W
|
|
| Power |
220V/50Hz
|
220V/50Hz
|
220V/50Hz
|
| Overall dimension |
198*225*115mm
|
198*225*115mm
|
198*225*115mm
|
| Weight |
2.4KG
|
2.4KG
|
2.0KG
|
