| Specification | Model | ||||
|---|---|---|---|---|---|

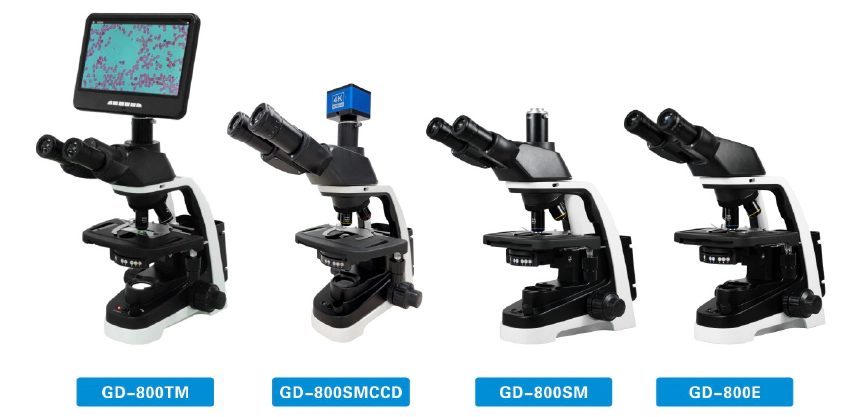

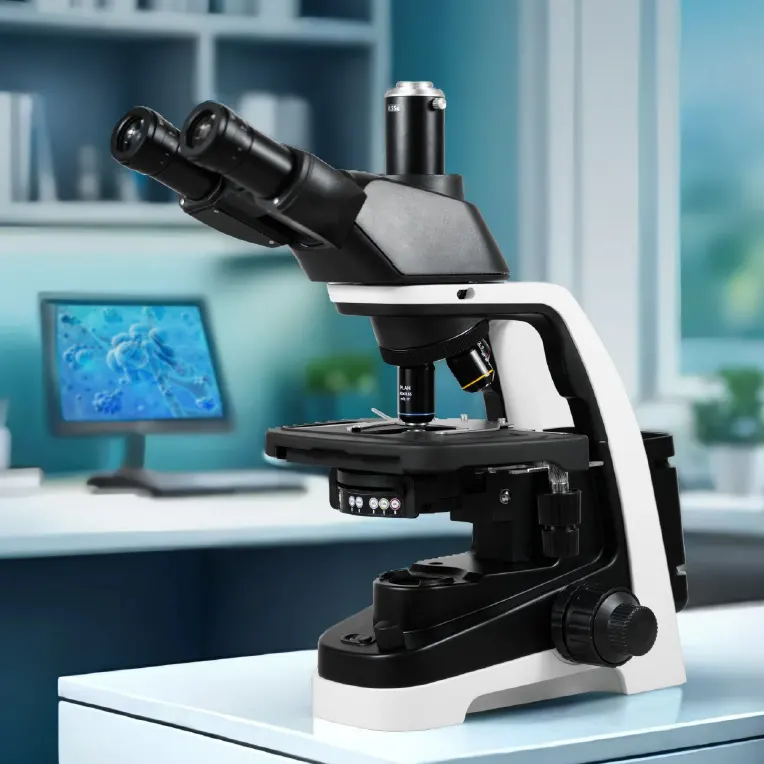

| Component | Details | GD-800TM | GD-800SMCCD | GD-800SM | GD-800E |
| Optical System | Infinity-corrected optical systems | ● | ● | ● | ● |
| Eyepiece | WF10X/22mm high eye point wide field eyepiece; diopter adjustable ±5, tube diameter Φ30mm | ● | ● | ● | ● |
| Object lens | Infinity Plan objective 4X, 10X, 40X(S), 100X(S, Oil) | ● | ● | ● | ● |
| Viewing head | Trinocular head, 30° inclined, Interpupillary Distance 50-75mm, with 10.1inch display | ● | |||
| Trinocular head, 30° inclined, Interpupillary Distance 50-75mm, with 4K high definition camera | ● | ||||
| Trinocular head, 30° inclined, Interpupillary Distance 50-75mm | ● | ||||
| Binocular head, 30° inclined, Interpupillary Distance 50-75mm | ● | ||||
| Converter | Four or five holes inward | ● | ● | ● | ● |
| Platform | 220X148mm double-layer X-axis steel wire transmission mechanical moving platform, travel 76X50mm, accuracy 0.1mm, damping type double slice clamp | ● | ● | ● | ● |
| Condenser | Aplanatic condenser system (with phase contrast, dark field, polarizer ports interface) | ● | ● | ● | ● |
| Focusing | Coaxial coarse focusing mechanism, micro-adjustment value 0.002mm | ● | ● | ● | ● |
| Illumination | 3W LED light brightness continuously adjustable lighting system | ● | ● | ● | ● |
| Optional component | 1. Differential interference contrast device 2. Dry dark field condenser, oil dark field condenser 3. Polarization device 4. Plan achromatic objective, infinity plan achromatic objective 5. Köhler illumination system 6. 5W LED lamp |
● | ● | ● | ● |
